38657 (1128 OXE) - Toro 28" Power Max Snow Thrower (SN: 310000001 - 310999999) (2010) Engine Assembly Parts Diagram

28" Power Max Snow Thrower

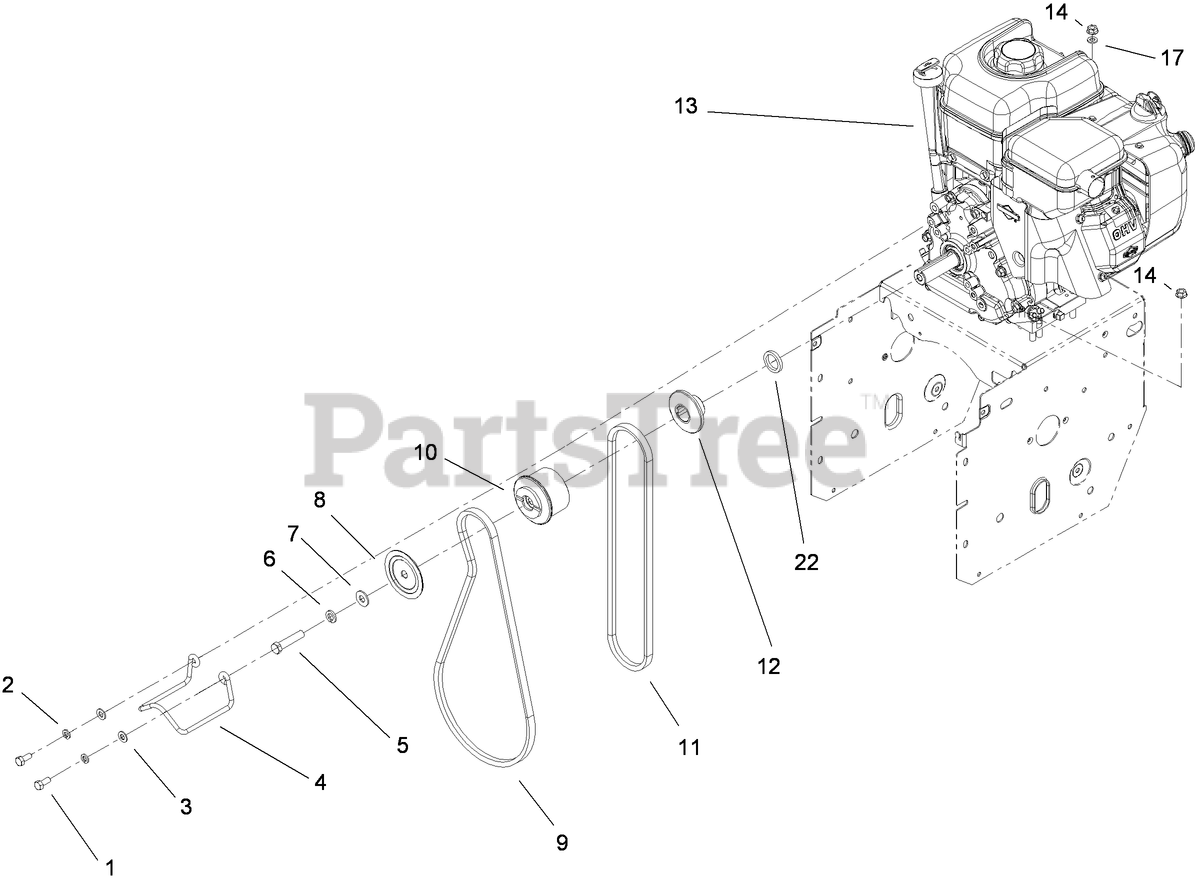

Engine Assembly Parts Diagram

  • Title

1

Toro 3210-3

SCREW-HH

$6.99

$

Usually ships in 3-6 days

0

2

Toro 3253-4

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

3

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

4

Toro 107-3835

See Supercession: 136-7317
(Superseded to 136-7317)

$19.99

$

Usually ships in 3-6 days

0

5

Toro 3212-8

SCREW-HH

$6.99

$

Usually ships in 3-6 days

0

6

Toro 3253-6

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

7

Toro 3256-4

WASHER-FLAT

$1.99

$

In Stock, Qty 20+

0

8

Toro 62-0940

SHEAVE-HALF, IMPELLER

$21.99

$

In Stock, only 2 left!

0

9

Toro 106-4498

BELT-V

$33.99

$

In Stock, only 2 left!

0

10

Toro 106-7333

PULLEY-ENGINE, CENTER

$159.99

$

Usually ships in 3-6 days

0

11

Toro 94-8812

V BELT-TRACTION
(Superseded to 94-8812-SL)

$33.99

$

In Stock, only 3 left!

0

12

Toro 106-7334

SHEAVE-HALF, TRACTION

$31.99

$

Usually ships in 3-6 days

0

13

ENGINE-BRIGGS, 21P214-0120-E1

Note: Not serviced separately

$

$

Not available

13

ENGINE-BRIGGS, 21P214-0120-E1

Note: Obtain parts from www.briggsandstratton.com

$

$

Not available

14

Toro 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

17

Toro 3256-2

WASHER-FLAT

$0.99

$

In Stock, Qty 18

0

22

Toro 115-5666

SPACER-HARDENED

$9.49

$

Usually ships in 3-6 days

0
