38660 (928 OE) - Toro 28" Power Max Heavy-Duty Snow Thrower (SN: 314000001 - 314999999) (2014) Main frame Assembly Parts Diagram

28" Power Max Heavy-Duty Snow Thrower

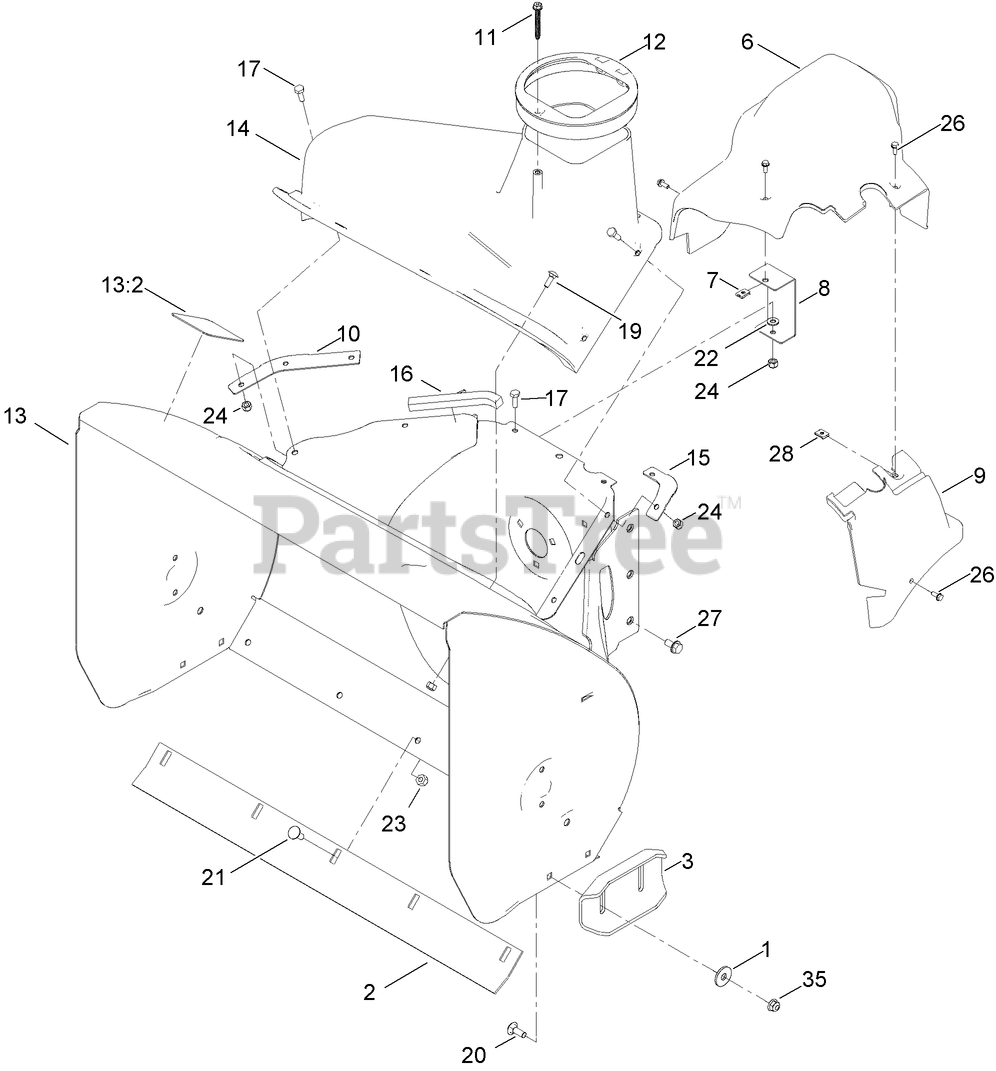

Main frame Assembly Parts Diagram

  • Title

1

Toro 52-2861

WASHER

$1.99

$

In Stock, only 1 left!

0

2

Toro 106-4573-01

SCRAPER-FIXED

$120.99

$

In Stock, only 2 left!

0

3

Toro 106-4588-01

SKID

$25.99

$

In Stock, Qty 19

0

6

Toro 119-1563

COVER-BELT

$26.99

$

In Stock, only 2 left!

0

7

Toro 107-1013

NUT-SPEED

$3.49

$

Usually ships in 3-6 days

0

8

Toro 107-1014-03

BRACKET-COVER, CLIP NUT

$11.99

$

Usually ships in 3-6 days

0

9

Toro 107-1016

COVER-EXTENSION, BELT

$15.99

$

In Stock, only 2 left!

0

10

Toro 107-1017-03

SEAL-FLANGE, COVER

$5.49

$

Usually ships in 3-6 days

0

11

Toro 114-3751

SCREW-HWH, PLASTITE

$1.99

$

In Stock, Qty 6

0

12

Toro 107-3006

GUIDE-CHUTE

$42.99

$

In Stock, only 2 left!

0

13

Toro 107-3824

HOUSING-AUGER, 28 INCH

$980.99

$

Usually ships in 3-6 days

0

13:2

Toro 107-3040

DECAL-DANGER

$37.99

$

Usually ships in 3-6 days

0

14

Toro 108-0017

COVER

$155.99

$

In Stock, only 2 left!

0

15

Toro 108-0039-03

SEAL

$9.49

$

In Stock, only 2 left!

0

16

Toro 120-0124

SEAL-HOUSING

$4.49

$

Usually ships in 3-6 days

0

17

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

19

Toro 3229-1

BOLT-CARR

$3.99

$

In Stock, Qty 20+

0

20

Toro 3230-16

SCREW-CARR

$2.99

$

In Stock, Qty 5

0

21

Toro 3230-23

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0

22

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

23

Toro 3296-29

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

24

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

26

Toro 32144-112

SCREW-HWH

$1.49

$

In Stock, Qty 20+

0

27

Toro 32144-14

SCREW-HWHTF

$5.49

$

In Stock, only 2 left!

0

28

Toro 701493

NUT-SPEED

$7.49

$

In Stock, only 2 left!

0

35

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0
