38674 (1028 OXE) - Toro 28" Power Max Heavy-Duty Snow Thrower (SN: 314000001 - 314999999) (2014) Engine Assembly Parts Diagram

28" Power Max Heavy-Duty Snow Thrower

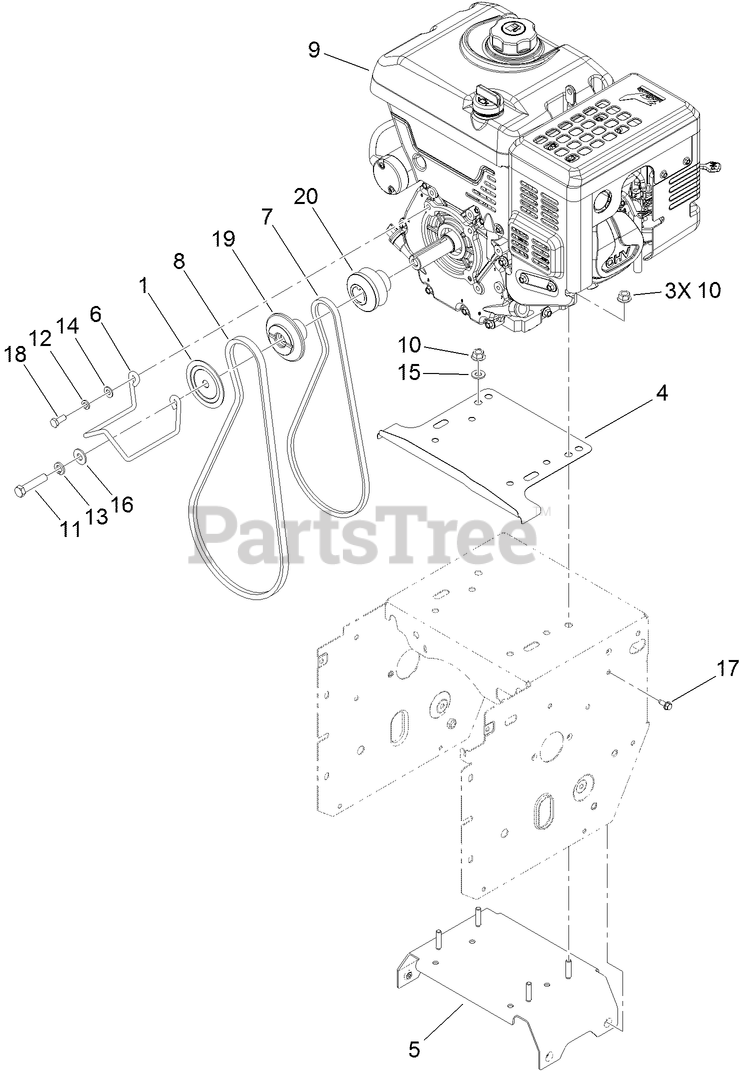

Engine Assembly Parts Diagram

  • Title

1

Toro 62-0940

SHEAVE-HALF, IMPELLER

$21.99

$

In Stock, only 2 left!

0

4

Toro 117-6022-01

SHIELD-DRIVE

$12.99

$

Usually ships in 3-6 days

0

5

Toro 119-1560

FRAME BRACE ASM

$60.99

$

Usually ships in 3-6 days

0

6

Toro 119-1562

DISCONTINUED
(Superseded to 136-8673)

$12.99

$

Usually ships in 3-6 days

0

7

Toro 119-1564

BELT-V

$25.99

$

In Stock, only 2 left!

0

8

Toro 125-1145

BELT-V

$28.99

$

In Stock, only 2 left!

0

9

Toro 120-4425

ENGINE-180FDS-1

$1192.99

$

Usually ships in 3-6 days

0

10

Toro 120-3067

NUT-FLANGE

$1.99

$

Usually ships in 3-6 days

0

11

Toro 3212-8

SCREW-HH

$6.99

$

Usually ships in 3-6 days

0

12

Toro 3253-4

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

13

Toro 3253-6

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

14

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

15

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

16

Toro 3256-4

WASHER-FLAT

$1.99

$

In Stock, Qty 20+

0

17

Toro 32144-10

SCREW-HWH

$5.49

$

In Stock, Qty 16

0

18

Toro 33114-020

SCREW-HH

$0.99

$

In Stock, Qty 10

0

19

Toro 121-6602

PULLEY-ENGINE, IMPELLER

$22.99

$

Usually ships in 3-6 days

0

20

Toro 121-6617

PULLEY-TRACTION

$43.99

$

Usually ships in 3-6 days

0
