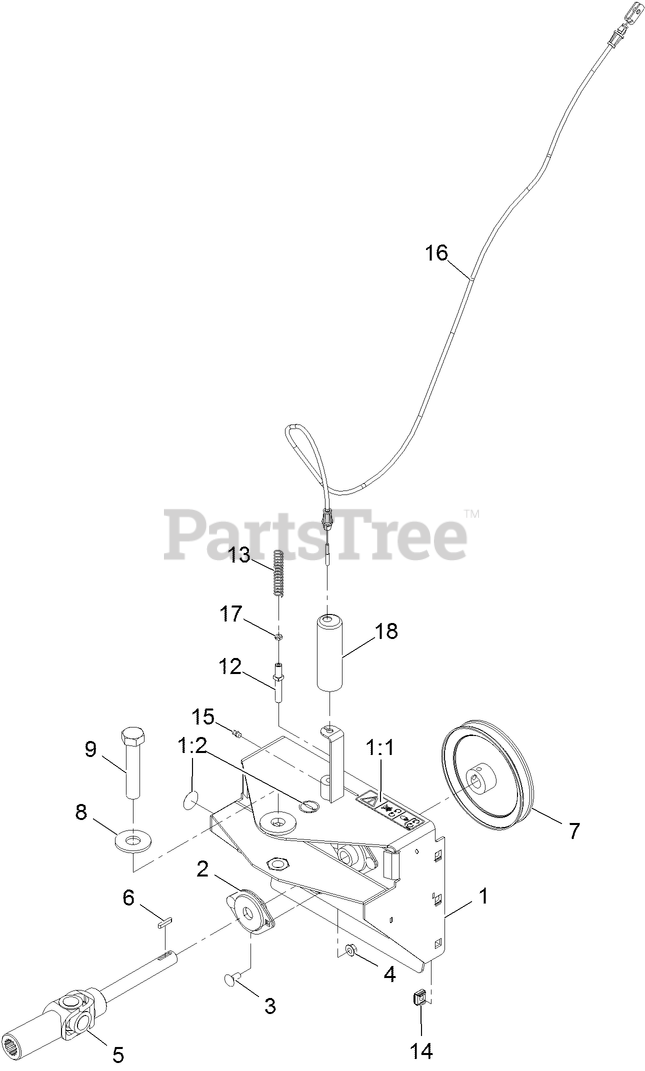

38700 - Toro Walk-Behind Rotary Power Broom (SN: 313000001 - 313999999) (2013) Mounting Assembly Parts Diagram

Walk-Behind Rotary Power Broom

Mounting Assembly Parts Diagram

  • Title

1

Toro 116-8122

BROOM MOUNTING FRAME ASM

$816.99

$

Usually ships in 3-6 days

0

1:1

Toro 112-9028

DECAL-COVER, MISSING

$25.99

$

In Stock, only 1 left!

0

1:2

Toro 115-2903

DECAL-GREASE

$8.49

$

Usually ships in 3-6 days

0

2

Toro 116-8103

BEARING-SHAFT

$111.99

$

Usually ships in 3-6 days

0

3

Toro 3230-1

BOLT-CARR

$1.99

$

In Stock, Qty 20+

0

4

Toro 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

5

Toro 116-8104

SHAFT-DRIVE

$738.99

$

Usually ships in 3-6 days

0

6

Toro 116-8105

KEY-ROUND END

$46.99

$

Usually ships in 3-6 days

0

7

Toro 116-7930

PULLEY-IMPELLER

$163.99

$

Usually ships in 3-6 days

0

8

Toro 3256-8

WASHER-FLAT

$4.49

$

In Stock, Qty 14

0

9

Toro 3216-7

SCREW-HH

$23.99

$

Usually ships in 3-6 days

0

12

Toro 116-8106

PIN-SWING

$84.99

$

Usually ships in 3-6 days

0

13

Toro 116-8107

SPRING-COMPRESSION

$66.99

$

Usually ships in 3-6 days

0

14

Toro 3290-496

NUT-RETAINER

$7.49

$

In Stock, Qty 5

0

15

Toro 302-19

FITTING-GREASE

$2.99

$

In Stock, Qty 20+

0

16

Toro 116-7671

CABLE-ANGLE, BROOM

$54.99

$

Usually ships in 3-6 days

0

17

Toro 3217-26

NUT-HEX

$1.99

$

In Stock, Qty 7

0

18

Toro 116-8108

CAP

$30.99

$

Usually ships in 3-6 days

0
