38751 (721 R-C) - Toro 21" Power Clear Commercial Snow Thrower (SN: 402082000 - 404309999) Rotor Assembly Parts Diagram
21" Power Clear Commercial Snow Thrower

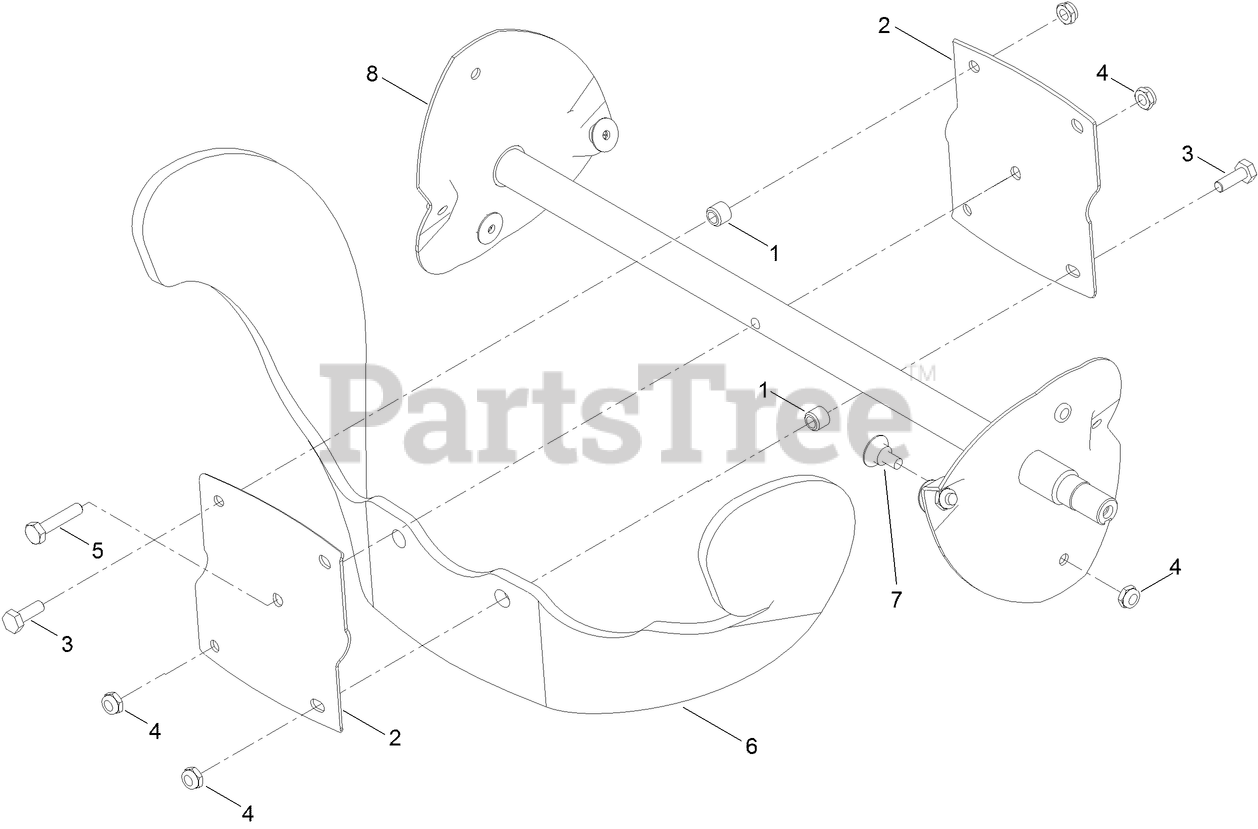

Rotor Assembly Parts Diagram
Toro 136-7167
SPACER-BLADE, ROTOR
$1.49
$
Usually ships in 3-6 days
Toro 66-6600-03
HALF-ROTOR
$10.99
$
In Stock, only 2 left!
Toro 321-5
SCREW-HH
$0.99
$
In Stock, Qty 20+
Toro 3296-56
NUT-LOCK, NI
$2.99
$
In Stock, Qty 20+
Toro 321-8
SCREW-HH
$4.49
$
In Stock, only 2 left!
$63.99
$
In Stock, Qty 20+
Toro 125-1122
SCREW
$3.99
$
In Stock, Qty 9
Toro 131-6490
ROTOR KIT
Note: This part is only threaded on the end opposite the keyway. Other end will need PN 110-9380, a thread forming screw, which can be reused or purchased separately.
$116.99
$
In Stock, only 4 left!
