38753 (721 E) - Toro 21" Power Clear Snow Thrower (SN: 412000000 - 414015200) Fuel System and Carburetor Assembly Parts Diagram

21" Power Clear Snow Thrower

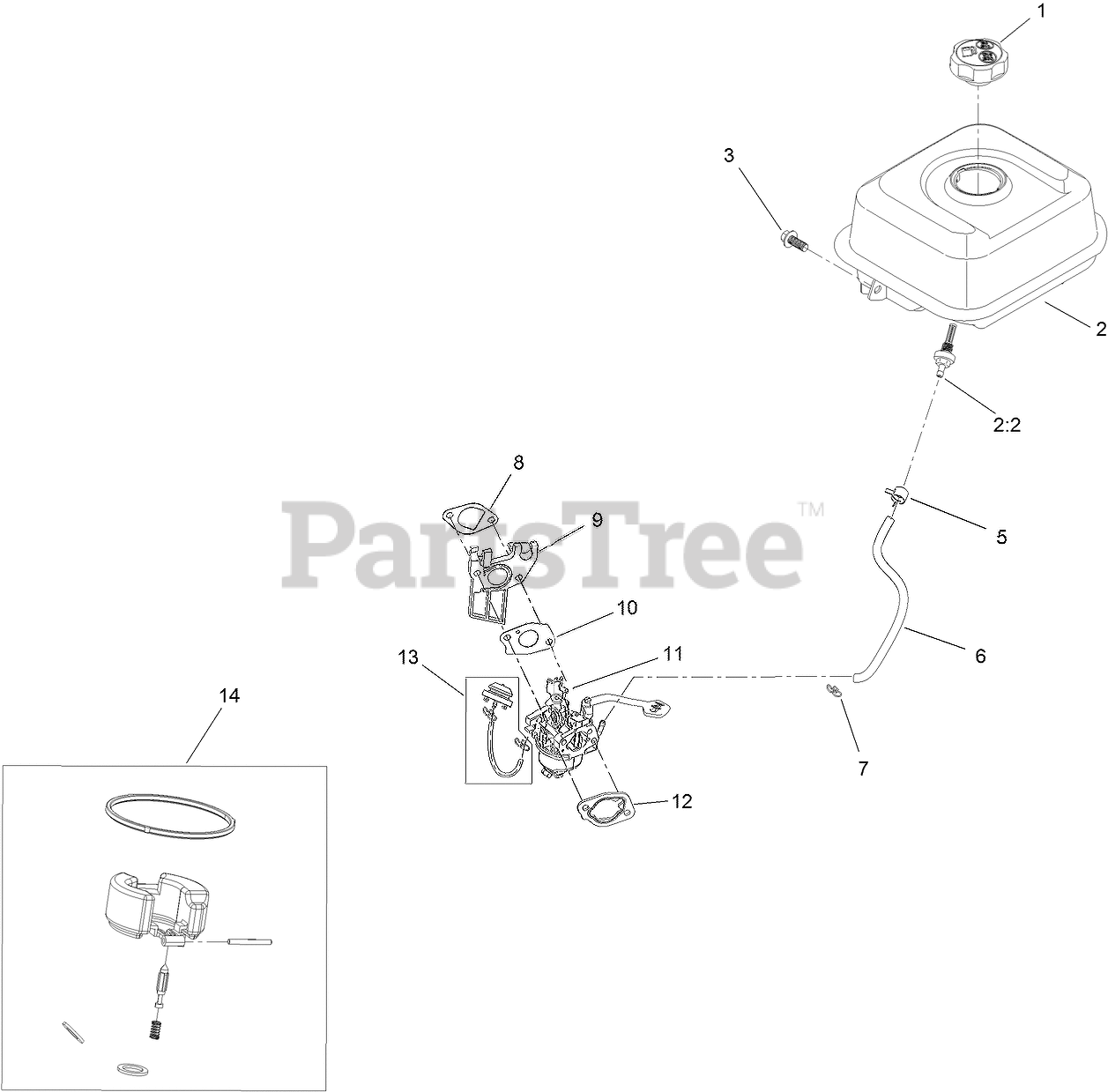

Fuel System and Carburetor Assembly Parts Diagram

  • Title

1

Toro 133-9823

CAP-FUEL

$21.99

$

In Stock, only 2 left!

0

2

Toro 127-9497

FUEL TANK AND FILTER ASM

$110.99

$

Usually ships in 3-6 days

0

2:2

Toro 127-9065

FILTER-FUEL

$6.49

$

In Stock, Qty 9

0

3

Toro 121-0294

SCREW-HHF

$1.99

$

In Stock, Qty 9

0

5

Toro 127-9120

CLAMP-HOSE

$2.49

$

In Stock, only 4 left!

0

6

Toro 127-9403

HOSE-FUEL

$14.99

$

In Stock, Qty 5

0

7

Toro 121-0087

CLAMP-HOSE

$1.49

$

In Stock, only 4 left!

0

8

Toro 121-0076

GASKET-CARBURETOR

$2.49

$

Usually ships in 3-6 days

0

9

Toro 121-0077

INSULATOR-CARBURETOR

$6.49

$

In Stock, Qty 6

0

10

Toro 121-0078

GASKET-CARBURETOR

$2.49

$

In Stock, Qty 11

0

11

Toro 127-9111

CARBURETOR ASM

$99.99

$

In Stock, Qty 6

0

12

Toro 121-0080

GASKET-CARBURETOR

$6.49

$

In Stock, Qty 11

0

13

Toro 127-9079

PRIMER KIT

$33.99

$

In Stock, Qty 6

0

14

Toro 127-9394

INTERNAL CARB SERVICE KIT

$23.99

$

In Stock, Qty 6

0

99

Toro 127-9301

HIGH ALTITUDE KIT - G210

Note: Not illustrated

$14.99

$

Usually ships in 3-6 days

0
