38842 (1232 OHXE) - Toro 32" Power Max Heavy-Duty Snow Thrower (SN: 412000000 - 413999999) Chute Assembly Parts Diagram

32" Power Max Heavy-Duty Snow Thrower

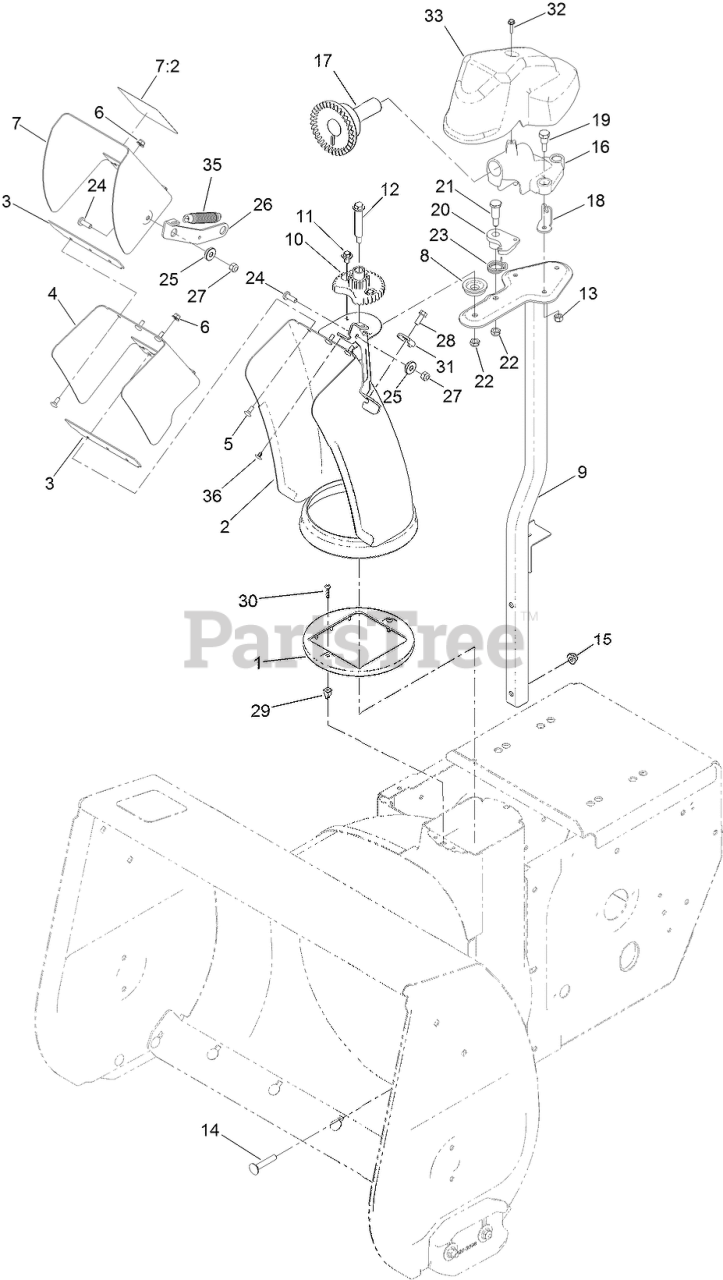

Chute Assembly Parts Diagram

  • Title

1

Toro 136-6515

GUIDE-CHUTE

$12.99

$

Usually ships in 3-6 days

0

2

Toro 136-6580-01

LOWER CHUTE ASM

$112.99

$

Usually ships in 3-6 days

0

3

Toro 138-3671

GASKET-DEFLECTOR

$3.99

$

Usually ships in 3-6 days

0

4

Toro 136-6582-01

MIDDLE DEFLECTOR ASM

$38.99

$

Usually ships in 3-6 days

0

5

Toro 135-1929

BOLT-CARR

$1.49

$

Usually ships in 3-6 days

0

6

Toro 138-0719

NUT-HF

$1.49

$

In Stock, Qty 18

0

7

Toro 139-1564

DEFLECTOR ASM

$59.99

$

Usually ships in 3-6 days

0

7:2

Toro 121-6847

DECAL-DANGER

$3.99

$

Usually ships in 3-6 days

0

8

Toro 106-4422

SPACER-CHUTE

$4.49

$

Usually ships in 3-6 days

0

9

Toro 137-6245-03

CHUTE POST ASM

$36.99

$

Usually ships in 3-6 days

0

10

Toro 106-4472

GEAR-CHUTE

$19.99

$

In Stock, only 2 left!

0

11

Toro 46-6810

SCREW AND WASHER ASM

$5.99

$

In Stock, Qty 20+

0

12

Toro 136-7199

BOLT-SHOULDER

$5.99

$

In Stock, only 2 left!

0

13

Toro 137-3088

NUT-HEX

$1.49

$

In Stock, Qty 20+

0

14

Toro 137-3063

BOLT-CAR

$1.49

$

Usually ships in 3-6 days

0

15

Toro 119-4041

NUT-HF

$1.49

$

In Stock, Qty 20+

0

16

Toro 136-6517

MOUNT-GEAR, FACE

$14.99

$

Usually ships in 3-6 days

0

17

Toro 106-4471

GEAR-FACE

$29.99

$

In Stock, only 2 left!

0

18

Toro 136-6676

ANCHOR-CABLE

$1.99

$

In Stock, only 1 left!

0

19

Toro 136-7197

SCREW-SHOULDER

$1.99

$

In Stock, only 1 left!

0

20

Toro 136-6525

LATCH-CHUTE

$5.49

$

Usually ships in 3-6 days

0

21

Toro 137-3103

SCREW-SHOULDER, HH

$1.99

$

In Stock, only 4 left!

0

22

Toro 137-3089

NUT-HEX

$1.49

$

Usually ships in 3-6 days

0

23

Toro 108-7315

SPRING-TORSION

$6.49

$

In Stock, only 3 left!

0

24

Toro 138-0689

SCREW-PH

$1.49

$

Usually ships in 3-6 days

0

25

Toro 138-0687

BUSHING-PIVOT

$1.49

$

Usually ships in 3-6 days

0

26

Toro 136-6522

LINK-DEFLECTOR

$7.49

$

Usually ships in 3-6 days

0

27

Toro 137-3094

NUT-HEX

$1.49

$

In Stock, Qty 20+

0

28

Toro 32144-85

SCREW-HWH

$1.99

$

In Stock, Qty 20+

0

29

Toro 136-6586

GROMMET-SCREW

$0.99

$

Usually ships in 3-6 days

0

30

Toro 94-4496

SCREW-PPH

$1.49

$

In Stock, Qty 20+

0

31

Toro 136-7191

CLAMP-CABLE

$5.49

$

In Stock, only 2 left!

0

32

Toro 137-3110

SCREW-PLASTITE, HWH

$2.99

$

Usually ships in 3-6 days

0

33

Toro 136-6672

COVER-GEAR, FACE

$12.99

$

Usually ships in 3-6 days

0

35

Toro 132-6915

SPRING-EXTENSION

$6.49

$

Usually ships in 3-6 days

0

36

Toro 138-3651

PLUG-PLASTIC

$0.99

$

Usually ships in 3-6 days

0
