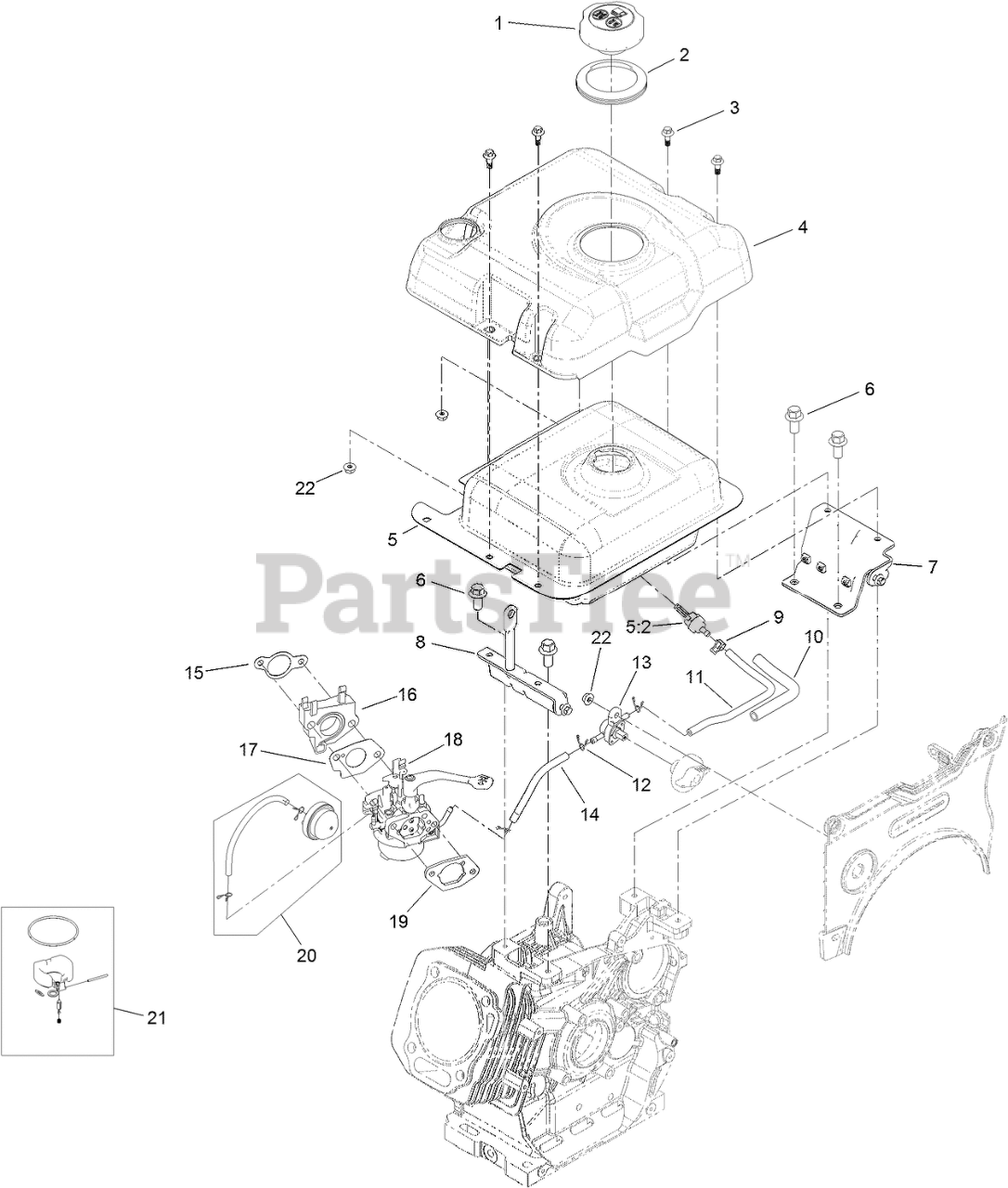

38842 (1232 OHXE) - Toro 32" Power Max Heavy-Duty Snow Thrower (SN: 412000000 - 413999999) Fuel Systems and Carburetor Assembly Parts Diagram

32" Power Max Heavy-Duty Snow Thrower

Fuel Systems and Carburetor Assembly Parts Diagram

  • Title

1

Toro 133-9823

CAP-FUEL

$21.99

$

In Stock, only 2 left!

0

2

Toro 121-0324

INSERT-COVER, TANK

$3.99

$

Usually ships in 3-6 days

0

3

Toro 121-0296

SCREW-HHF

$1.99

$

Usually ships in 3-6 days

0

4

Toro 139-0574

COVER-TANK, FUEL

$77.99

$

Usually ships in 3-6 days

0

5

Toro 139-0567

FUEL TANK AND FILTER ASM

$110.99

$

Usually ships in 3-6 days

0

5:2

Toro 127-9065

FILTER-FUEL

$6.49

$

In Stock, Qty 8

0

6

Toro 139-0569

SCREW-HHF

$1.49

$

Usually ships in 3-6 days

0

7

Toro 139-0571

BRACKET-TANK, RIGHT

$22.99

$

Usually ships in 3-6 days

0

8

Toro 139-0570

BRACKET-TANK, LEFT

$22.99

$

Usually ships in 3-6 days

0

9

Toro 127-9120

CLAMP-HOSE

$2.49

$

In Stock, only 3 left!

0

10

Toro 139-0566

SLEEVE-ABRASION

$3.49

$

Usually ships in 3-6 days

0

11

Toro 127-9064

HOSE-FUEL

$14.99

$

Usually ships in 3-6 days

0

12

Toro 121-0087

CLAMP-HOSE

$1.49

$

In Stock, only 3 left!

0

13

Toro 121-0258

VALVE-FUEL

$11.99

$

Usually ships in 3-6 days

0

14

Toro 139-0583

HOSE-FUEL

$5.99

$

Usually ships in 3-6 days

0

15

Toro 139-0579

GASKET-CARBURETOR

$1.49

$

In Stock, Qty 6

0

16

Toro 139-0580

INSULATOR-CARBURETOR

$6.49

$

In Stock, only 1 left!

0

17

Toro 139-0581

GASKET-CARBURETOR

$1.49

$

In Stock, only 1 left!

0

18

Toro 139-0582

CARBURETOR ASM

$158.99

$

Usually ships in 3-6 days

0

19

Toro 121-0254

GASKET-COATED, RUBBER

$8.99

$

In Stock, only 2 left!

0

20

Toro 127-9372

PRIMER KIT

$35.99

$

In Stock, only 2 left!

0

21

Toro 139-0625

INTERNAL CARB SERVICE KIT

$21.99

$

Usually ships in 3-6 days

0

22

Toro 121-0010

NUT-FLANGE

$1.49

$

Usually ships in 3-6 days

0

99

Toro 139-0599

HIGH ALTITUDE KIT

Note: Not illustrated

$13.99

$

Usually ships in 3-6 days

0
