38844 (1432 OHXE) - Toro 32" Power Max Commercial Snow Thrower (SN: 412000000 - 413999999) Auger Drive Assembly Parts Diagram

32" Power Max Commercial Snow Thrower

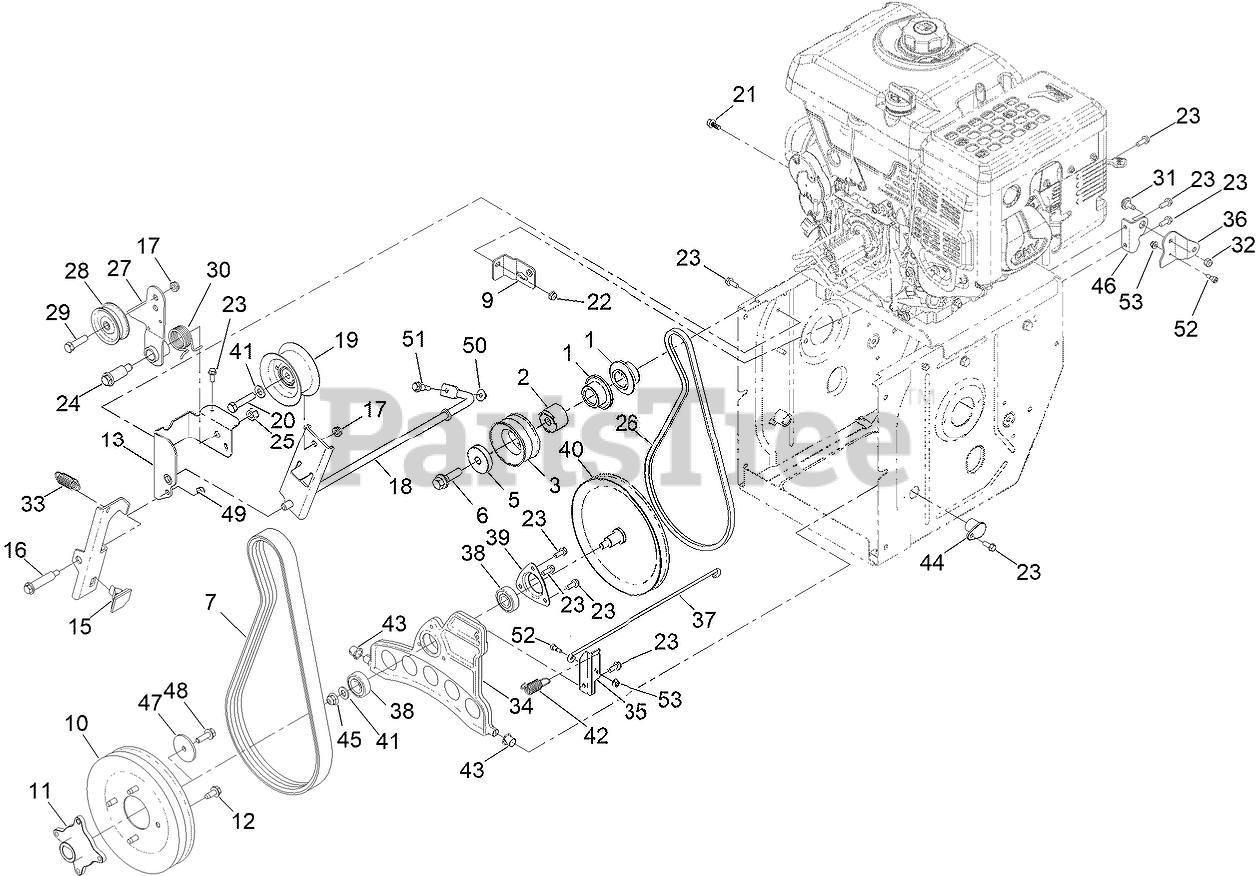

Auger Drive Assembly Parts Diagram

  • Title

1

Toro 136-6564

PULLEY-TRACTION, ENGINE

$8.49

$

Usually ships in 3-6 days

0

2

Toro 136-6691

PULLEY-SPACER

$7.99

$

Usually ships in 3-6 days

0

3

Toro 136-6690

PULLEY-IMPELLER, DOUBLE SHEAVE

$26.99

$

Usually ships in 3-6 days

0

5

Toro 138-3662

SUPPORT-PULLEY

$4.49

$

Usually ships in 3-6 days

0

6

Toro 125-2466

BOLT-BLADE

$3.99

$

In Stock, Qty 20+

0

7

Toro 136-6504

BELT-V

$76.99

$

In Stock, only 2 left!

0

9

Toro 136-8654-03

BRACKET-CLUTCH, IMPELLER

$2.99

$

Usually ships in 3-6 days

0

10

Toro 136-6557

PULLEY-IMPELLER, DOUBLE SHEAVE

$49.99

$

Usually ships in 3-6 days

0

11

Toro 136-6558

HUB-PULLEY

$14.99

$

Usually ships in 3-6 days

0

12

Toro 32144-70

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

13

Toro 136-8671-03

BRACKET-BRAKE, CLUTCH

$8.99

$

Usually ships in 3-6 days

0

15

Toro 66-8060

PAD-BRAKE

$19.99

$

In Stock, only 2 left!

0

16

Toro 136-7199

BOLT-SHOULDER

$5.99

$

In Stock, only 2 left!

0

17

Toro 121-4600

NUT-HEX

$1.49

$

In Stock, only 3 left!

0

18

Toro 137-6234-03

ARM-CLUTCH, IMPELLER

$28.99

$

Usually ships in 3-6 days

0

19

Toro 136-6531

PULLEY, IDLER

$38.99

$

Usually ships in 3-6 days

0

20

Toro 138-0722

SCREW-HH

$1.49

$

Usually ships in 3-6 days

0

21

Toro 137-3111

SCREW-HHF

$1.49

$

Usually ships in 3-6 days

0

22

Toro 137-3005

NUT-HF

$1.49

$

Usually ships in 3-6 days

0

23

Toro 32144-85

SCREW-HWH

$1.99

$

In Stock, Qty 20+

0

24

Toro 136-7116

BOLT-SHOULDER

$5.99

$

Usually ships in 3-6 days

0

25

Toro 137-3095

NUT-HEX

$5.49

$

Usually ships in 3-6 days

0

26

Toro 137-6151

V-BELT

$34.99

$

In Stock, Qty 5

0

27

Toro 136-7186

ARM-IDLER, TRACTION

$19.99

$

Usually ships in 3-6 days

0

28

Toro 3-4244

PULLEY-IDLER

$29.99

$

In Stock, only 2 left!

0

29

Toro 137-3065

SCREW-HH

$1.99

$

Usually ships in 3-6 days

0

30

Toro 120-3060

SPRING-TORSION

$4.49

$

In Stock, only 1 left!

0

31

Toro 92-9698

SCREW-SHOULDER

$5.99

$

Usually ships in 3-6 days

0

32

Toro 137-3094

NUT-HEX

$1.49

$

In Stock, Qty 20+

0

33

Toro 145-0675

SPRING-EXTENSION

$2.99

$

Usually ships in 3-6 days

0

34

Toro 136-6689

PLATE-FRICTION, WHEEL

$27.99

$

Usually ships in 3-6 days

0

35

Toro 144-1621

BKT-TRACTION PLATE

$3.99

$

Usually ships in 3-6 days

0

36

Toro 144-1622

BELLCRANK-DRIVE

$5.49

$

Usually ships in 3-6 days

0

37

Toro 144-1613

LINK-TRACTION, HD

$12.99

$

In Stock, only 2 left!

0

38

Toro 38-7820

BEARING-BALL

$15.99

$

In Stock, Qty 20+

0

39

Toro 136-7124

RETAINER-BEARING

$1.99

$

Usually ships in 3-6 days

0

40

Toro 137-6154

PULLEY-TRACTION

$36.99

$

Usually ships in 3-6 days

0

41

Toro 115-1166

WASHER-FLAT

$5.49

$

In Stock, only 2 left!

0

42

Toro 137-6189

SPRING-EXTENSION

$3.99

$

In Stock, Qty 10

0

43

Toro 256-257

BUSHING-NYLINER

$3.99

$

In Stock, only 3 left!

0

44

Toro 120-7156

BUSHING-PLATE, TRACTION

$9.49

$

Usually ships in 3-6 days

0

45

Toro 119-4042

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

46

Toro 136-6654

See Supercession: 136-6654-03
(Superseded to 136-6654-03)

$4.99

$

Usually ships in 3-6 days

0

47

Toro 137-3121

WASHER-PLAIN

$8.49

$

Usually ships in 3-6 days

0

48

Toro 115-5142

SCREW-HHF

$10.99

$

In Stock, only 2 left!

0

49

Toro 137-3089

NUT-HEX

$1.49

$

Usually ships in 3-6 days

0

50

Toro 137-3016

NUT-HF

$2.99

$

Usually ships in 3-6 days

0

51

Toro 104-0858

BOLT-SHOULDER

$5.49

$

In Stock, only 3 left!

0

52

Toro 94-9422

SCREW-SHOULDER

$2.99

$

In Stock, only 2 left!

0

53

Toro 138-0719

NUT-HF

$1.49

$

In Stock, Qty 18

0
