38875 (1432 OHXE) - Toro 32" Power TRX Commercial Snow Thrower (SN: 409000000 - 412999999) Track Drive Assembly Parts Diagram

32" Power TRX Commercial Snow Thrower

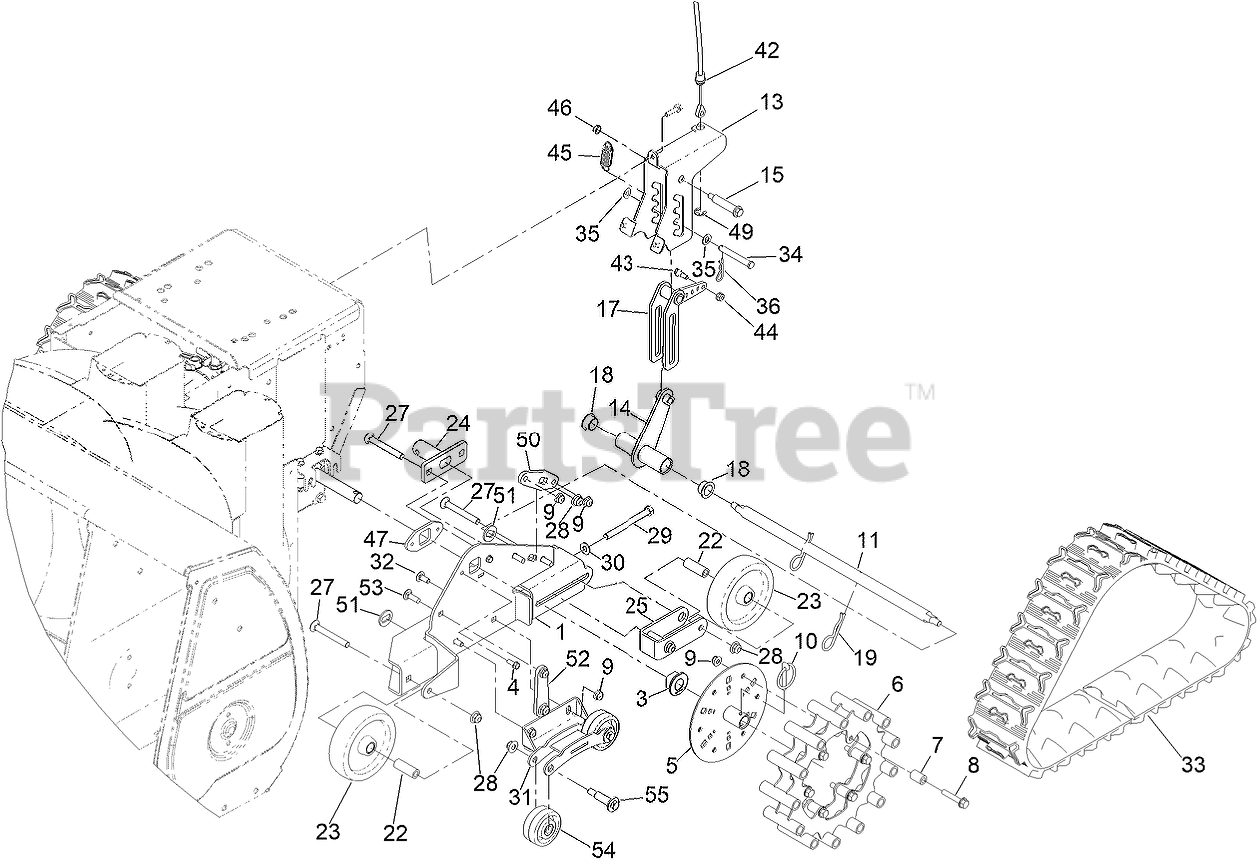

Track Drive Assembly Parts Diagram

  • Title

1

Toro 140-7865-03

SUPPORT-TRACK, ASM LH

$209.99

$

Usually ships in 3-6 days

0

2

Toro 140-7870-03

SUPPORT-TRACK, ASM RH

Note: Not illustrated

$209.99

$

Usually ships in 3-6 days

0

3

Toro 120-7162

BUSHING-AXLE

$5.99

$

In Stock, only 2 left!

0

4

Toro 32144-85

SCREW-HWH

$1.99

$

In Stock, Qty 20+

0

5

Toro 140-7886-03

HUB-DRIVE, WELD ASM

$31.99

$

Usually ships in 3-6 days

0

6

Toro 140-7889-01

WHEEL-DRIVE, WELD ASM

$164.99

$

Usually ships in 3-6 days

0

7

Toro 140-7864

TUBE-SUPPORT

$2.49

$

Usually ships in 3-6 days

0

8

Toro 135-5779

SCREW-HHF

$3.49

$

Usually ships in 3-6 days

0

9

Toro 119-4041

NUT-HF

$1.49

$

In Stock, Qty 20+

0

10

Toro 107-3039

KLIK PIN ASM

$11.99

$

In Stock, only 2 left!

0

11

Toro 144-2854

BAR-PIVOT

$59.99

$

Usually ships in 3-6 days

0

13

Toro 140-7905-03

BRACKET-HEIGHT, ADJUSTER

$54.99

$

Usually ships in 3-6 days

0

14

Toro 140-7910-03

PIVOT-LINK, WELD ASM

$38.99

$

Usually ships in 3-6 days

0

15

Toro 136-7199

BOLT-SHOULDER

$5.99

$

In Stock, only 2 left!

0

17

Toro 140-7909-03

LATCH ASM, WELDED

$80.99

$

Usually ships in 3-6 days

0

18

Toro 109-8054

BUSHING-FLANGE

$5.99

$

In Stock, Qty 20+

0

19

Toro 3290-343

PIN-HAIR

$1.49

$

In Stock, only 3 left!

0

22

Toro 140-7876

BUSHING-TENSIONER

$5.99

$

Usually ships in 3-6 days

0

23

Toro 140-7921

WHEEL-BOGEY

$12.99

$

Usually ships in 3-6 days

0

24

Toro 140-7890-03

TENSIONER, WELDED

$34.99

$

Usually ships in 3-6 days

0

25

Toro 140-7879-03

YOKE-BOGEY

$13.99

$

Usually ships in 3-6 days

0

27

Toro 109-6868

BOLT-CARRIAGE

$5.99

$

In Stock, Qty 12

0

28

Toro 119-4042

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

29

Toro 140-7923

SCREW-HH

$2.49

$

Usually ships in 3-6 days

0

30

Toro 115-1166

WASHER-FLAT

$5.49

$

In Stock, only 2 left!

0

31

Toro 145-1705-03

SUPPORT-WHEEL, ASM

$46.99

$

Usually ships in 3-6 days

0

32

Toro 137-3061

BOLT-CARR

$0.99

$

Usually ships in 3-6 days

0

33

Toro 140-7862

TRACK-SNOW

$209.99

$

Usually ships in 3-6 days

0

34

Toro 283-52

PIN-CLEVIS

$13.99

$

Usually ships in 3-6 days

0

35

Toro 131-8667

WASHER-THRUST

$1.49

$

In Stock, Qty 8

0

36

Toro 3290-467

PIN-HAIR

$0.99

$

In Stock, only 4 left!

0

42

Toro 140-7928

CABLE-ADJUST, HEIGHT

$36.99

$

Usually ships in 3-6 days

0

43

Toro 42-3560

BOLT-SHOULDER

$6.49

$

In Stock, Qty 20+

0

44

Toro 119-4040

NUT-FLANGE, NI

$0.99

$

In Stock, Qty 8

0

45

Toro 107-1045

SPRING-EXTENSION

$5.99

$

In Stock, only 2 left!

0

46

Toro 137-3089

NUT-HEX

$1.49

$

Usually ships in 3-6 days

0

47

Toro 140-7943-03

SUPPORT-BUSHING, AXLE

$9.49

$

Usually ships in 3-6 days

0

49

Toro 32120-47

RING-RETAINING, EXTERNAL

$1.49

$

In Stock, Qty 10

0

50

Toro 144-2857-03

PLATE-BAR, PIVOT

$9.49

$

Usually ships in 3-6 days

0

51

Toro 144-2881

WASHER-SPECIAL, D

$2.49

$

Usually ships in 3-6 days

0

52

Toro 144-2882-03

PLATE-SUPPORT

$9.49

$

Usually ships in 3-6 days

0

53

Toro 110-3144

BOLT-CARR

$1.49

$

Usually ships in 3-6 days

0

54

Toro 145-1685

WHEEL-BOGEY

$8.49

$

Usually ships in 3-6 days

0

55

Toro 136-7198

BOLT-SHOULDER

$1.99

$

In Stock, Qty 8

0
