39078 - Toro 48" Walk-Behind Mower, Floating Deck, T-Bar, Gear Drive (SN: 314000001 - 314999999) (2014) WHEEL DRIVE AND BRAKE ASSEMBLY Parts Diagram

48" Walk-Behind Mower, Floating Deck, T-Bar, Gear Drive

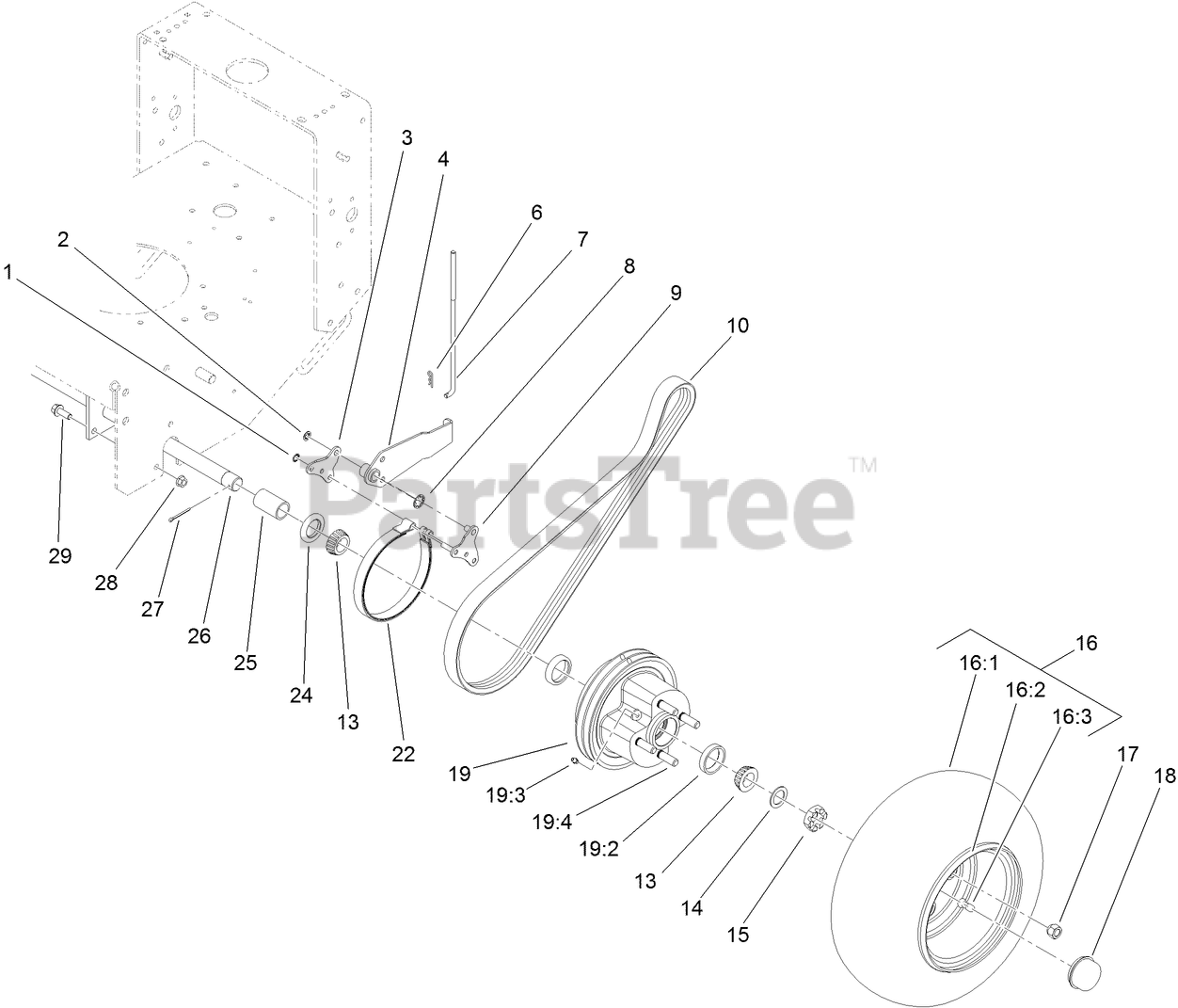

WHEEL DRIVE AND BRAKE ASSEMBLY Parts Diagram

  • Title

1

Toro 32151-72

RING-RETAINING

$1.99

$

In Stock, Qty 20+

0

2

Toro 32151-56

RING-RETAINING, EXTERNAL

$6.99

$

Usually ships in 3-6 days

0

3

Toro 106-8792

PLATE-LINK, BRAKE

$27.99

$

Usually ships in 3-6 days

0

4

Toro 110-5010-01

ARM-BRAKE

$60.99

$

Usually ships in 3-6 days

0

6

Toro 3290-307

PIN-COTTER
(Superseded to 1-806003)

$1.99

$

In Stock, Qty 20+

0

7

Toro 108-2730

ROD-BRAKE

$27.99

$

Usually ships in 3-6 days

0

8

Toro 32151-40

RING-RETAINING

$8.49

$

In Stock, only 2 left!

0

9

Toro 106-8773

BRAKE LINK ASM

$79.99

$

Usually ships in 3-6 days

0

10

Toro 108-2723

BELT-V, BANDED

$200.99

$

In Stock, Qty 7

0

13

Toro 1-543509

BEARING-ROLLER, TAPERED

$15.99

$

In Stock, Qty 20+

0

14

Toro 1-523157

WASHER-SPACER

$1.99

$

In Stock, Qty 20+

0

15

Toro 1-809082

NUT-SHH

$15.99

$

In Stock, only 3 left!

0

16

Toro 130-4555

WHEEL AND TIRE ASM

$259.99

$

Usually ships in 3-6 days

0

16:1

Toro 104-6322

TIRE

$144.99

$

In Stock, only 2 left!

0

16:2

Toro 130-4569

WHEEL

$160.99

$

Usually ships in 3-6 days

0

16:3

Toro 232-27

STEM-VALVE
(Superseded to 5108)

$8.49

$

Usually ships in 3-6 days

0

17

Toro 242-50

NUT-LUG
(Superseded to 139-2564)

$1.49

$

In Stock, Qty 20+

0

18

Toro 241-119

CAP-DUST

$15.99

$

In Stock, only 2 left!

0

19

Toro 107-4090

WHEEL HUB ASM

$401.99

$

Usually ships in 3-6 days

0

19:2

Toro 1-543508

CUP-BEARING

$8.99

$

In Stock, Qty 20+

0

19:3

Toro 302-5

FITTING-GREASE

$3.99

$

In Stock, Qty 20+

0

19:4

Toro 10-6830

STUD-TYPE, DRIVE
(Superseded to 111512)

$

$

Not available

22

Toro 1-323262

BAND-BRAKE

$98.99

$

In Stock, Qty 13

0

24

Toro 1-543511

SEAL-GREASE

$12.99

$

In Stock, Qty 14

0

25

Toro 110-5006

SPACER-WHEEL

$14.99

$

Usually ships in 3-6 days

0

26

Toro 110-4983-01

AXLE

$335.99

$

Usually ships in 3-6 days

0

27

Toro 1-806800

PIN-COTTER

$2.99

$

In Stock, Qty 20+

0

28

Toro 32128-21

NUT-HF

$0.99

$

In Stock, Qty 20+

0

29

Toro 3234-11

SCREW-HHF

$4.49

$

In Stock, Qty 20+

0
