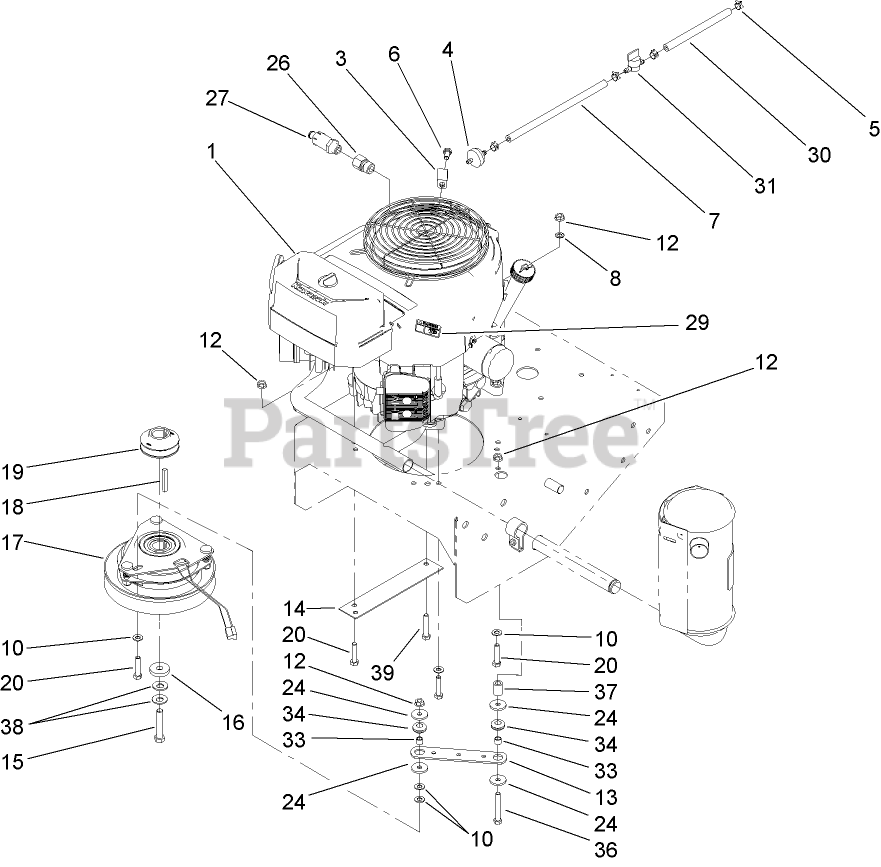

39092 - Toro 32" Walk-Behind Mower, Floating Deck, T-Bar, Gear Drive (SN: 280000001 - 280999999) (2008) Engine Assembly Parts Diagram

32" Walk-Behind Mower, Floating Deck, T-Bar, Gear Drive

Engine Assembly Parts Diagram

  • Title

1

HUB and BEARING ASM

Note: Not serviced separately

$

$

Not available

1

HUB and BEARING ASM

Note: Obtain parts from www.kawpowerepc.com

$

$

Not available

3

Toro 2412-87

CLAMP-CABLE

$3.49

$

Usually ships in 3-6 days

0

4

Toro 56-6360

FILTER-FUEL

$6.99

$

In Stock, Qty 20+

0

5

Toro 2412-98

CLAMP-HOSE
(Superseded to 702355)

$107.99

$

Usually ships in 3-6 days

0

6

Toro 33114-016

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

7

Toro 110-4894

HOSE-FUEL

$10.99

$

Usually ships in 3-6 days

0

8

Toro 3255-8

WASHER-LOCK

$0.99

$

In Stock, Qty 10

0

10

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

12

Toro 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

13

Toro 1-633543-03

STRAP-CLUTCH, BRAKE

$15.99

$

In Stock, only 3 left!

0

14

Toro 94-5847-01

COVER-PULLEY

$

$

Not available

15

Toro 3212-9

SCREW-HH

$13.99

$

In Stock, Qty 6

0

16

Toro 107-4136

WASHER
(Superseded to 1-543610)

$6.99

$

In Stock, Qty 20+

0

17

Toro 105-2635

CLUTCH / BRAKE ASM

$630.99

$

Usually ships in 3-6 days

0

18

Toro 608006

KEY-SQUARE

$5.99

$

In Stock, only 2 left!

0

19

Toro 107-4112

PULLEY-DRIVE

$155.99

$

Usually ships in 3-6 days

0

20

Toro 322-7

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

24

Toro 1-613235

WASHER

$1.99

$

In Stock, Qty 20+

0

26

Toro 103-1966

ADAPTER

$19.99

$

In Stock, only 2 left!

0

27

Toro 92-6877

VALVE-DRAIN, OIL

$45.99

$

In Stock, only 2 left!

0

29

Toro 106-0699

DECAL-WARNING

$

$

Not available

30

Toro 107-0588

HOSE-FUEL

$6.99

$

In Stock, Qty 11

0

31

Toro 1-603770

VALVE-FUEL

$9.49

$

In Stock, only 4 left!

0

33

Toro 1-633545

SPACER

$2.99

$

In Stock, Qty 20+

0

34

Toro 1-633630

GROMMET

$6.49

$

In Stock, Qty 20+

0

36

Toro 322-11

SCREW-HH
(Superseded to 120-9738)

$1.99

$

In Stock, Qty 18

0

37

Toro 104-6373

TUBE-RETAINER

$17.99

$

Usually ships in 3-6 days

0

38

Toro 1-603610

WASHER-SPRING

$5.99

$

In Stock, Qty 20+

0

39

Toro 322-9

SCREW-HH

$3.99

$

In Stock, Qty 20+

0
