39494 - Toro 36" Walk-Behind Mower, Floating Deck, Split Lever, Hydro Drive (SN: 280000001 - 280999999) (2008) UPPER CONTROL ASSEMBLY Parts Diagram

36" Walk-Behind Mower, Floating Deck, Split Lever, Hydro Drive

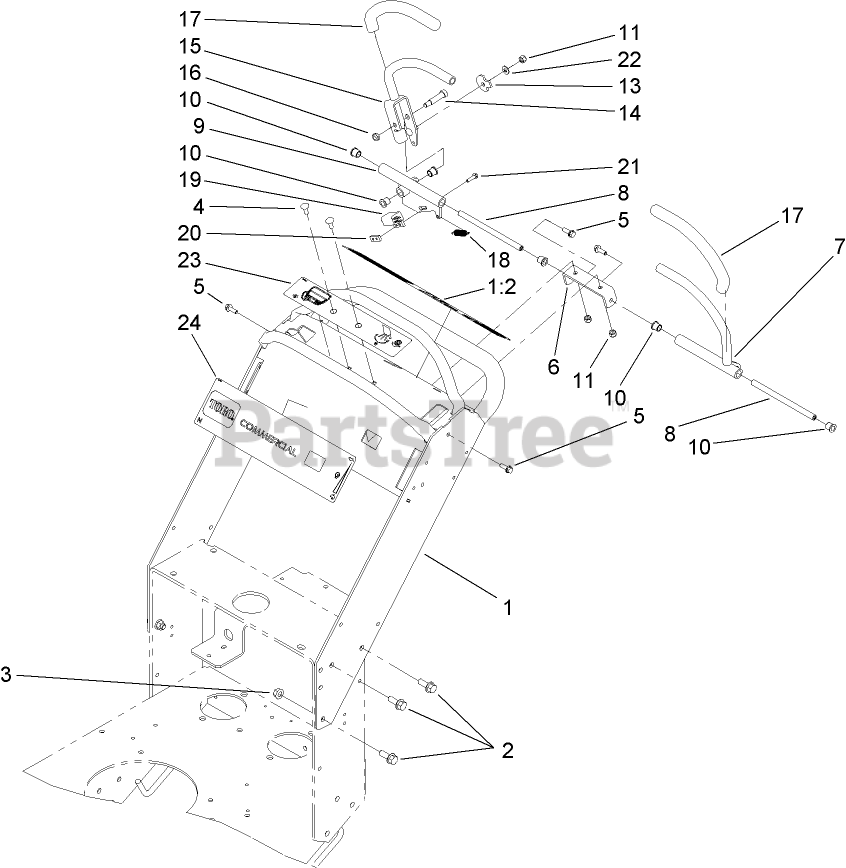

UPPER CONTROL ASSEMBLY Parts Diagram

  • Title

1

Toro 114-3435

HANDLE ASM

$

$

Not available

1:2

Toro 114-3425

DECAL-WARNING, CONTROL, ES

$

$

Not available

2

Toro 3234-42

SCREW-HHF

$3.99

$

In Stock, Qty 20+

0

3

Toro 32128-43

NUT-FLANGE

$1.49

$

In Stock, only 4 left!

0

4

Toro 3229-1

BOLT-CARR

$3.99

$

In Stock, Qty 20+

0

5

Toro 3234-4

SCREW-HHF

$0.99

$

In Stock, Qty 13

0

6

Toro 114-0235

BRACKET-SUPPORT

$37.99

$

Usually ships in 3-6 days

0

7

Toro 114-0272

CONTROL LEVER ASM
(Superseded to 114-0272-03)

$142.99

$

Usually ships in 3-6 days

0

8

Toro 114-0260

SHAFT-PIVOT
(Superseded to 119-1885)

$25.99

$

Usually ships in 3-6 days

0

9

Toro 114-0234

MOTION CONTROL ASM

$113.99

$

Usually ships in 3-6 days

0

10

Toro 103-9928

BEARING

$8.49

$

In Stock, Qty 10

0

11

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

13

Toro 114-0268

CAM-LEVER

$6.99

$

Usually ships in 3-6 days

0

14

Toro 114-0239

SCREW-HSH

$13.99

$

In Stock, only 1 left!

0

15

Toro 114-0238

LEVER ASM
(Superseded to 114-0238-03)

$142.99

$

Usually ships in 3-6 days

0

16

Toro 3296-47

NUT-LOCK, NI

$4.49

$

In Stock, Qty 20+

0

17

Toro 114-0241

GRIP-LEVER
(Superseded to 119-0222)

$9.49

$

Usually ships in 3-6 days

0

18

Toro 114-0249

SPRING-EXTENSION

$14.99

$

In Stock, Qty 9

0

19

Toro 1-513152

SWITCH-CLOSED, NORMALLY

$14.99

$

In Stock, Qty 10

0

20

Toro 1-633181

PLATE-TAPPED

$7.49

$

In Stock, only 3 left!

0

21

Toro 32105-13

SCREW-HWH

$1.99

$

In Stock, Qty 5

0

22

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

23

Toro 114-3424

DECAL-CONTROL

$22.99

$

Usually ships in 3-6 days

0

24

Toro 114-3423

DECAL-PANEL, CONTROL

$

$

Not available
