39521 - Toro 30" Stand-On Aerator (SN: 417000000 - 999999999) Caster Wheel and Fork Assembly Parts Diagram

30" Stand-On Aerator

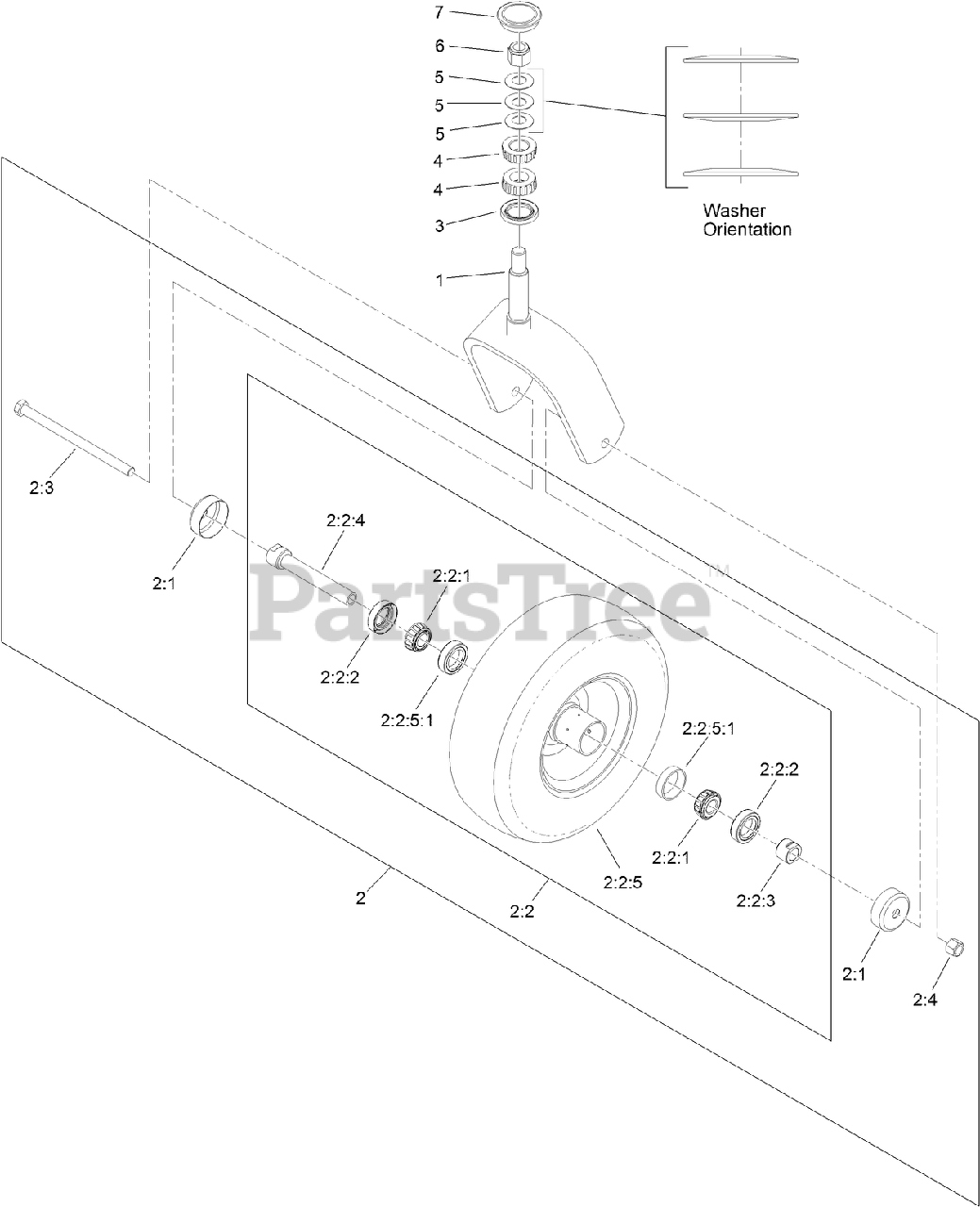

Caster Wheel and Fork Assembly Parts Diagram

  • Title

1

Toro 116-6704-01

CASTER

$154.99

$

Usually ships in 3-6 days

0

2

Toro 127-9531

WHEEL AND AXLE ASM

$360.99

$

Usually ships in 3-6 days

0

2:1

Toro 103-2768

GUARD-SEAL

$3.99

$

In Stock, Qty 20+

0

2:2

WHEEL AND BEARING ASM

Note: Not serviced separately

$

$

Not available

2:2:1

Toro 1-633585

BEARING-CONE, TAPER

$25.99

$

In Stock, Qty 20+

0

2:2:2

Toro 103-0063

SEAL-CASTER

$10.99

$

In Stock, Qty 20+

0

2:2:3

Toro 103-3051

SPACER-NUT

Note: Use Pro-Lock, Nut Type (P/N 1-840022, .5ml tube) on threads.

$9.49

$

In Stock, Qty 20+

0

2:2:4

Toro 126-5360

AXLE-CASTER

$17.99

$

In Stock, only 3 left!

0

2:2:5

WHEEL AND TIRE ASM

Note: Not serviced separately

$

$

Not available

2:2:5:1

Toro 1-633584

BEARING-CUP

$9.49

$

In Stock, Qty 20+

0

2:3

Toro 325-42

SCREW-HH

$15.99

$

In Stock, only 1 left!

0

2:4

Toro 3296-23

NUT-LOCK, NI

$1.49

$

In Stock, Qty 20+

0

3

Toro 116-5647

SEAL-GREASE

$6.49

$

In Stock, Qty 20+

0

4

Toro 1-543509

BEARING-ROLLER, TAPERED

$15.99

$

In Stock, Qty 20+

0

5

Toro 1-633508

WASHER-BELLVILLE

$3.99

$

In Stock, Qty 20+

0

6

Toro 3296-51

NUT-LOCK, NI

$7.49

$

In Stock, Qty 20+

0

7

Toro 103-4882

CAP-GREASE

$8.99

$

In Stock, Qty 20+

0
