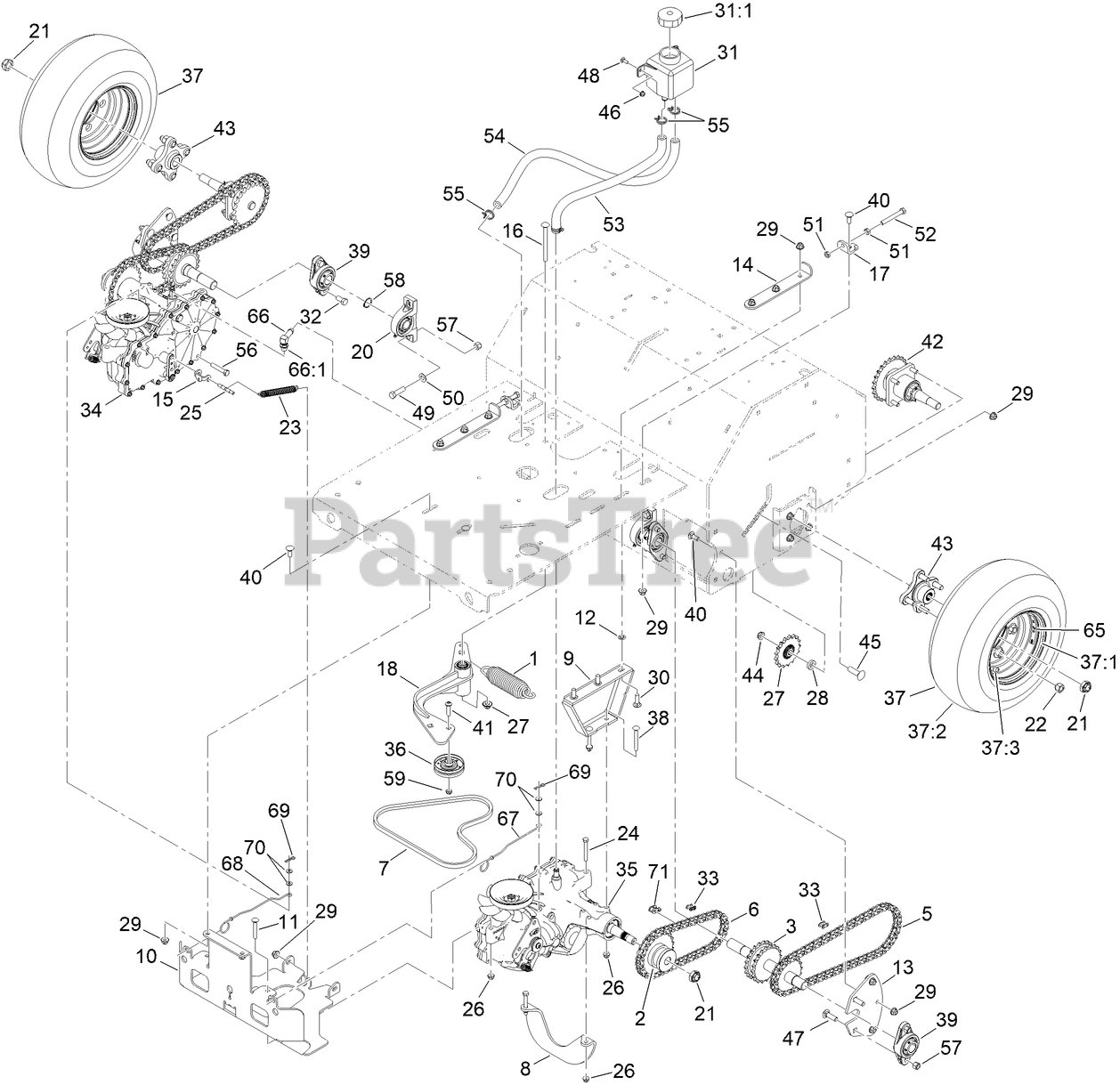

39521 - Toro 30" Stand-On Aerator (SN: 417000000 - 999999999) Ground Drive Assembly Parts Diagram

30" Stand-On Aerator

Ground Drive Assembly Parts Diagram

  • Title

1

Toro 116-6317

SPRING-EXTENSION

$31.99

$

In Stock, Qty 20+

0

2

Toro 116-9305

HUB-DRIVE, CHAIN

$183.99

$

In Stock, Qty 9

0

3

Toro 126-5625

JACKSHAFT

$253.99

$

In Stock, Qty 14

0

5

Toro 126-8808

CHAIN-ROLLER

$256.99

$

In Stock, Qty 14

0

6

Toro 126-8807

CHAIN-ROLLER

$206.99

$

In Stock, Qty 5

0

7

Toro 116-8874

BELT-4L SECTION

$38.99

$

In Stock, Qty 11

0

8

Toro 135-5051-03

BRACE-ANGLE

$36.99

$

Usually ships in 3-6 days

0

9

Toro 116-9710-03

MOUNT-TRANSMISSION

$49.99

$

Usually ships in 3-6 days

0

10

Toro 126-5495-03

GUARD-TRANSMISSION

$256.99

$

Usually ships in 3-6 days

0

11

Toro 3230-7

BOLT-CARR

$1.49

$

In Stock, Qty 6

0

12

Toro 107-3154

NUT-PUSH

$1.49

$

In Stock, Qty 5

0

13

Toro 116-6596-01

PLATE-JACKSHAFT

$39.99

$

Usually ships in 3-6 days

0

14

Toro 116-6619

PLATE-ADJUSTMENT, TRANSMISSION

$30.99

$

Usually ships in 3-6 days

0

15

Toro 116-7597

YOKE-BRAKE, PARK

$72.99

$

Usually ships in 3-6 days

0

16

Toro 9000779

BOLT-CARR

$2.99

$

Usually ships in 3-6 days

0

17

Toro 116-6723

BRACKET-HYDRO, ADJUST

$23.99

$

In Stock, only 3 left!

0

18

Toro 116-9307

IDLER ARM ASM

$172.99

$

Usually ships in 3-6 days

0

20

Toro 116-6756

BEARING-PILLOW BLOCK

$60.99

$

In Stock, only 2 left!

0

21

Toro 116-2839

NUT-LOCK

$12.99

$

In Stock, only 2 left!

0

22

Toro 242-50

NUT-LUG
(Superseded to 139-2564)

$1.49

$

In Stock, Qty 20+

0

23

Toro 76-4660

SPRING-DOOR

$12.99

$

In Stock, only 2 left!

0

24

Toro 322-12

SCREW-HH
(Superseded to 32136-4)

$2.49

$

In Stock, Qty 13

0

25

Toro 116-7596

PIN-BRAKE, PARK

$22.99

$

Usually ships in 3-6 days

0

26

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

27

Toro 126-9108

SPROCKET-IDLER, 15T

$128.99

$

In Stock, only 2 left!

0

28

Toro 104-8417

WASHER

$10.99

$

In Stock, only 2 left!

0

29

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

30

Toro 3231-25

BOLT-CARR
(Superseded to 119-4162)

$2.49

$

In Stock, Qty 20+

0

31

Toro 109-2250

TANK-HYD

$74.99

$

In Stock, Qty 6

0

31:1

Toro 109-3320

CAP-RESERVOIR, HYD

$31.99

$

In Stock, only 2 left!

0

32

Toro 135-7810

SCREW-HH

$7.99

$

Usually ships in 3-6 days

0

33

Toro 116-6897

LINK-CONNECTING

$8.99

$

In Stock, Qty 5

0

34

Toro 135-1050

RH TRANSAXLE ASM (W/PIN)

$1751.99

$

Usually ships in 3-6 days

0

35

Toro 135-1051

LH TRANSAXLE ASM (W/PIN)

$1751.99

$

Usually ships in 3-6 days

0

36

Toro 116-9715

PULLEY-IDLER

$79.99

$

In Stock, only 2 left!

0

37

Toro 126-4267

WHEEL AND TIRE ASM

$169.99

$

Usually ships in 3-6 days

0

37:1

Toro 126-4266

RIM-GRAY

$82.99

$

Usually ships in 3-6 days

0

37:2

Toro 116-6978

TIRE

$166.99

$

Usually ships in 3-6 days

0

37:3

Toro 232-27

See Supercession: 5108
(Superseded to 5108)

$8.49

$

Usually ships in 3-6 days

0

38

Toro 3230-9

SCREW-CARR

$3.99

$

In Stock, Qty 20+

0

39

Toro 116-6777

BEARING-FLANGE, 2 BOLT

$51.99

$

In Stock, only 2 left!

0

40

Toro 3231-2

BOLT-CARR

$1.99

$

In Stock, Qty 20+

0

41

Toro 116-9927

SCREW-HSBH

$2.99

$

In Stock, only 2 left!

0

42

Toro 116-9545

AXLE AND BEARING ASM

$837.99

$

Usually ships in 3-6 days

0

43

Toro 116-3872

HUB-OFFSET

$77.99

$

In Stock, only 3 left!

0

44

Toro 3296-45

NUT-HEX

$4.49

$

In Stock, Qty 20+

0

45

Toro 3233-14

SCREW-CARR

$18.99

$

In Stock, Qty 20+

0

46

Toro 104-7201

NUT-HF

$1.49

$

In Stock, Qty 20+

0

47

Toro 3232-3

BOLT-CARR

$3.99

$

In Stock, Qty 5

0

48

Toro 3229-1

BOLT-CARR

$3.99

$

In Stock, Qty 20+

0

49

Toro 324-6

SCREW-HH

$1.49

$

Usually ships in 3-6 days

0

50

Toro 3256-25

WASHER-FLAT

$0.99

$

In Stock, only 2 left!

0

51

Toro 3217-7

NUT-HEX

$0.99

$

In Stock, Qty 15

0

52

Toro 99-8664

SCREW-HH

$2.99

$

In Stock, Qty 5

0

53

Toro 116-6775

HOSE-HYDRAULIC

$21.99

$

Usually ships in 3-6 days

0

54

Toro 116-6776

HOSE-HYDRAULIC

$29.99

$

Usually ships in 3-6 days

0

55

Toro 109-3322

CLAMP-HOSE

$1.49

$

In Stock, Qty 8

0

56

Toro 323-10

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

57

Toro 3296-48

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

58

Toro 32151-29

RING-RETAINING

$5.99

$

In Stock, only 2 left!

0

59

Toro 3296-59

See Supercession: 121-4600
(Superseded to 121-4600)

$1.49

$

In Stock, only 4 left!

0

65

Toro 126-2054

DECAL-HUB, WHEEL

$5.99

$

Usually ships in 3-6 days

0

66

Toro 109-6449

FITTING-ELBOW, 90

$37.99

$

Usually ships in 3-6 days

0

66:1

Toro 237-42

O-RING

$3.49

$

In Stock, Qty 14

0

67

Toro 135-0685

ROD-BYPASS, RH

$20.99

$

Usually ships in 3-6 days

0

68

Toro 135-0683

ROD-BYPASS, LH

$20.99

$

Usually ships in 3-6 days

0

69

Toro 1-806003

PIN-COTTER

$1.99

$

In Stock, Qty 20+

0

70

Toro 119-8952

WASHER

$0.99

$

In Stock, Qty 20+

0

71

Toro 146-1367

LINK-#50 HALF LINK

$17.99

$

Usually ships in 3-6 days

0
