39521 - Toro 30" Stand-On Aerator (SN: 417000000 - 999999999) Tine Assembly Parts Diagram

30" Stand-On Aerator

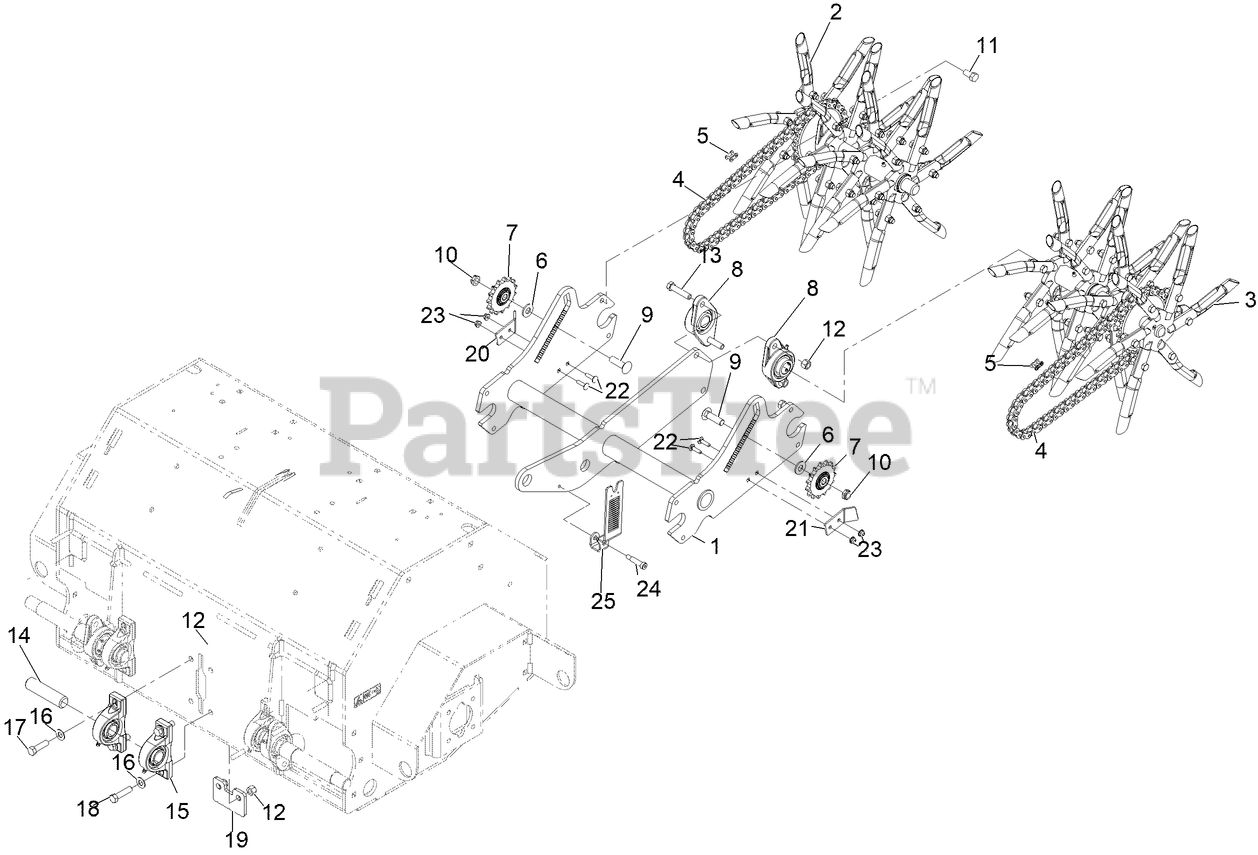

Tine Assembly Parts Diagram

  • Title

1

Toro 135-5952-03

ARM-TRAIL

$556.99

$

Usually ships in 3-6 days

0

2

Toro 135-2507

ASM-TINE WHEEL, RH

$1134.99

$

Usually ships in 3-6 days

0

3

Toro 135-2510

ASM-TINE WHEEL, LH

$1134.99

$

Usually ships in 3-6 days

0

4

Toro 126-8808

CHAIN-ROLLER

$256.99

$

In Stock, Qty 14

0

5

Toro 116-6897

LINK-CONNECTING

$8.99

$

In Stock, Qty 5

0

6

Toro 87-7270

WASHER-THRUST

$1.49

$

In Stock, only 4 left!

0

7

Toro 126-9108

SPROCKET-IDLER, 15T

$128.99

$

In Stock, only 2 left!

0

8

Toro 116-6777

BEARING-FLANGE, 2 BOLT

$51.99

$

In Stock, only 2 left!

0

9

Toro 3233-14

SCREW-CARR

$18.99

$

In Stock, Qty 20+

0

10

Toro 3296-45

NUT-HEX

$4.49

$

In Stock, Qty 20+

0

11

Toro 135-7810

SCREW-HH

Note: Use Pro-Lock, Nut Type (P/N 1-840022, .5ml tube) on threads.

$7.99

$

Usually ships in 3-6 days

0

12

Toro 3296-48

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

13

Toro 324-8

SCREW-HH

$6.49

$

In Stock, Qty 20+

0

14

Toro 116-6629

SHAFT

$25.99

$

Usually ships in 3-6 days

0

15

Toro 116-6756

BEARING-PILLOW BLOCK

Note: Use Pro-Lock, Nut Type (P/N 1-840022, .5ml tube) on threads.

$60.99

$

In Stock, only 2 left!

0

16

Toro 3256-25

WASHER-FLAT

$0.99

$

In Stock, only 2 left!

0

17

Toro 324-6

SCREW-HH

$1.49

$

Usually ships in 3-6 days

0

18

Toro 324-7

SCREW-HH

$2.49

$

Usually ships in 3-6 days

0

19

Toro 116-7327-01

PLATE-DOWNSTOP

$12.99

$

Usually ships in 3-6 days

0

20

Toro 126-4192-03

GUARD-CHAIN, RH

$14.99

$

In Stock, only 2 left!

0

21

Toro 126-4193-03

GUARD-CHAIN, LH

$14.99

$

Usually ships in 3-6 days

0

22

Toro 3229-30

SCREW-CARR

$1.99

$

In Stock, Qty 5

0

23

Toro 104-7201

NUT-HF

$1.49

$

In Stock, Qty 20+

0

24

Toro 114-0239

SCREW-HSH

$13.99

$

In Stock, only 1 left!

0

25

Toro 135-5109

BRACKET-CONTROL, DEPTH

$39.99

$

Usually ships in 3-6 days

0
