39678 - Toro 48" Walk-Behind Mower, Fixed Deck, T-Bar, Gear Drive (SN: 404324200 - 405457996) Sheave, Spindle and Blade Assembly Parts Diagram

48" Walk-Behind Mower, Fixed Deck, T-Bar, Gear Drive

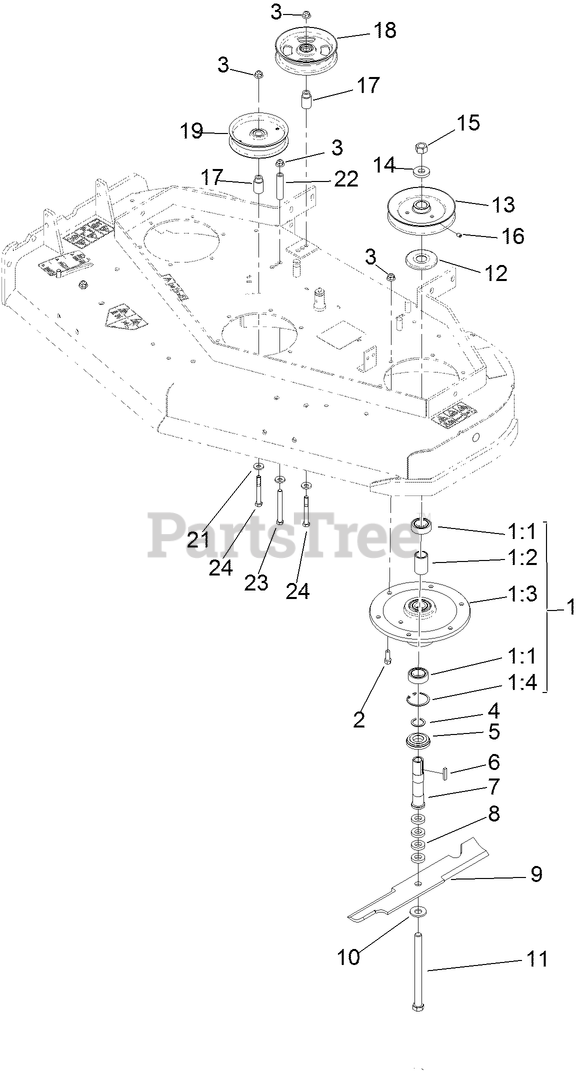

Sheave, Spindle and Blade Assembly Parts Diagram

  • Title

1

Toro 108-6697

SPINDLE HOUSING ASM

$345.99

$

Usually ships in 3-6 days

0

1:1

Toro 119-7857

BEARING-BALL, 1 INCH

$19.99

$

Usually ships in 3-6 days

0

1:2

Toro 110-2116

SPACER-BEARING

$19.99

$

Usually ships in 3-6 days

0

1:3

Toro 108-6694

HOUSING-SPINDLE

$254.99

$

Usually ships in 3-6 days

0

1:4

Toro 32120-8

RING-SNAP

$2.99

$

In Stock, Qty 20+

0

2

Toro 92-1624

See Supercession: 95-1726
(Superseded to 95-1726)

$2.99

$

In Stock, Qty 20+

0

3

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

4

Toro 110-4888

WASHER-SPACER

$34.99

$

Usually ships in 3-6 days

0

5

Toro 103-2535

SPACER-GUARD, BOTTOM

$13.99

$

In Stock, only 2 left!

0

6

Toro 1-807267

KEY

$2.99

$

In Stock, Qty 9

0

7

Toro 1-323529

TUBE-SPINDLE, SHORT

$101.99

$

In Stock, only 2 left!

0

8

Toro 1-323539

SPACER

$2.99

$

In Stock, Qty 20+

0

9

Toro 107-3192-03

BLADE-16.5 INCH (HIGH FLOW)

$34.99

$

In Stock, Qty 20+

0

10

Toro 1-513208

WASHER-SPRING

$10.99

$

Usually ships in 3-6 days

0

11

Toro 1-800861

SCREW-CAP, HH

$21.99

$

In Stock, only 4 left!

0

12

Toro 103-1330

GUARD-BEARING, TOP

$5.99

$

In Stock, Qty 20+

0

13

Toro 1-403183

SHEAVE

$76.99

$

In Stock, only 2 left!

0

14

Toro 1-323339

WASHER-RETAINER, SHEAVE

$5.99

$

In Stock, Qty 20+

0

15

Toro 3219-6

NUT-HEX

$4.49

$

In Stock, Qty 20+

0

16

Toro 3246-18

SETSCREW

$5.99

$

Usually ships in 3-6 days

0

17

Toro 1-413113

BUSHING-IDLER

$6.49

$

In Stock, Qty 20+

0

18

Toro 136-5405

PULLEY-IDLER,FLAT
(Superseded to 136-5405)

$52.99

$

In Stock, only 3 left!

0

19

Toro 1-613098

PULLEY-IDLER

$51.99

$

In Stock, Qty 20+

0

21

Toro 98-5975

WASHER-BELLEVILLE

$3.99

$

In Stock, Qty 20+

0

22

Toro 1-403188

SPACER

$15.99

$

Usually ships in 3-6 days

0

23

Toro 323-15

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

24

Toro 323-14

SCREW-HH

$4.49

$

In Stock, Qty 20+

0
