39692 - Toro 32" Walk-Behind Mower, Fixed Deck, T-Bar, Gear Drive (SN: 280000001 - 280999999) (2008) Spindle and Blade Assembly Parts Diagram

32" Walk-Behind Mower, Fixed Deck, T-Bar, Gear Drive

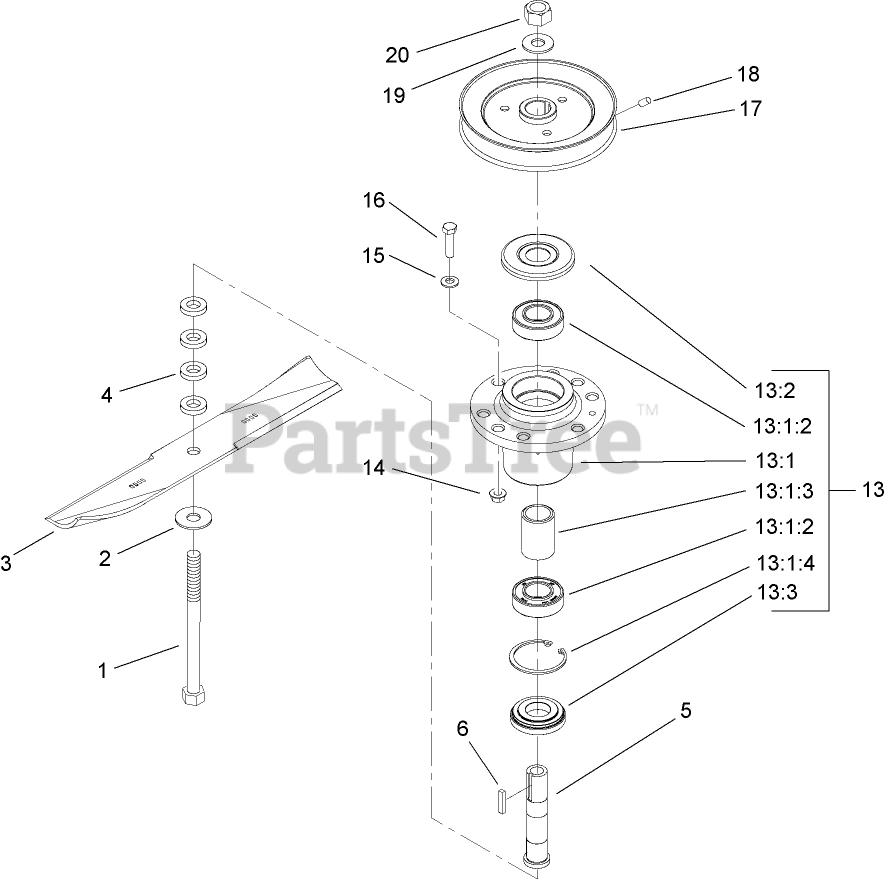

Spindle and Blade Assembly Parts Diagram

  • Title

1

Toro 1-800861

SCREW-CAP, HH

$21.99

$

In Stock, only 4 left!

0

2

Toro 1-513208

WASHER-SPRING

$10.99

$

Usually ships in 3-6 days

0

3

Toro 103-2527

BLADE-NOTCHED

Note: Optional Equipment

$35.99

$

In Stock, Qty 20+

0

3

Toro 103-2507

BLADE-LIFT, LOW

$29.99

$

In Stock, only 3 left!

0

4

Toro 1-323539

SPACER

$2.99

$

In Stock, Qty 20+

0

5

Toro 1-323529

TUBE-SPINDLE, SHORT

$101.99

$

In Stock, only 2 left!

0

6

Toro 1-807267

KEY

$2.99

$

In Stock, Qty 9

0

13

Toro 107-4065

CUTTER HOUSING ASM

$173.99

$

Usually ships in 3-6 days

0

13:1

HUB and BEARING ASM

Note: Not serviced separately

$

$

Not available

13:1:2

Toro 103-2477

BEARING-JACKSHAFT

$67.99

$

In Stock, Qty 9

0

13:1:3

Toro 103-2534

SPACER-BEARING

$9.49

$

In Stock, only 3 left!

0

13:1:4

Toro 32120-8

RING-SNAP

$2.99

$

In Stock, Qty 20+

0

13:2

Toro 103-1330

GUARD-BEARING, TOP

$5.99

$

In Stock, Qty 20+

0

13:3

Toro 103-2535

SPACER-GUARD, BOTTOM

$13.99

$

In Stock, only 2 left!

0

14

Toro 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

15

Toro 1-303334

WASHER-SPRING

$2.99

$

In Stock, Qty 20+

0

16

Toro 322-6

SCREW-HH

$4.49

$

In Stock, Qty 20+

0

17

Toro 1-403183

SHEAVE

$76.99

$

In Stock, only 2 left!

0

18

Toro 1-803310

SCREW-SET

$2.99

$

Usually ships in 3-6 days

0

19

Toro 1-323339

WASHER-RETAINER, SHEAVE

$5.99

$

In Stock, Qty 20+

0

20

Toro 3219-6

NUT-HEX

$4.49

$

In Stock, Qty 20+

0
