39921 T - Toro 21" Power Clear Flex-Force 60V MAX Snowthrower (SN: 415000000 - 999999999) Chute Assembly Parts Diagram

21" Power Clear Flex-Force 60V MAX Snowthrower

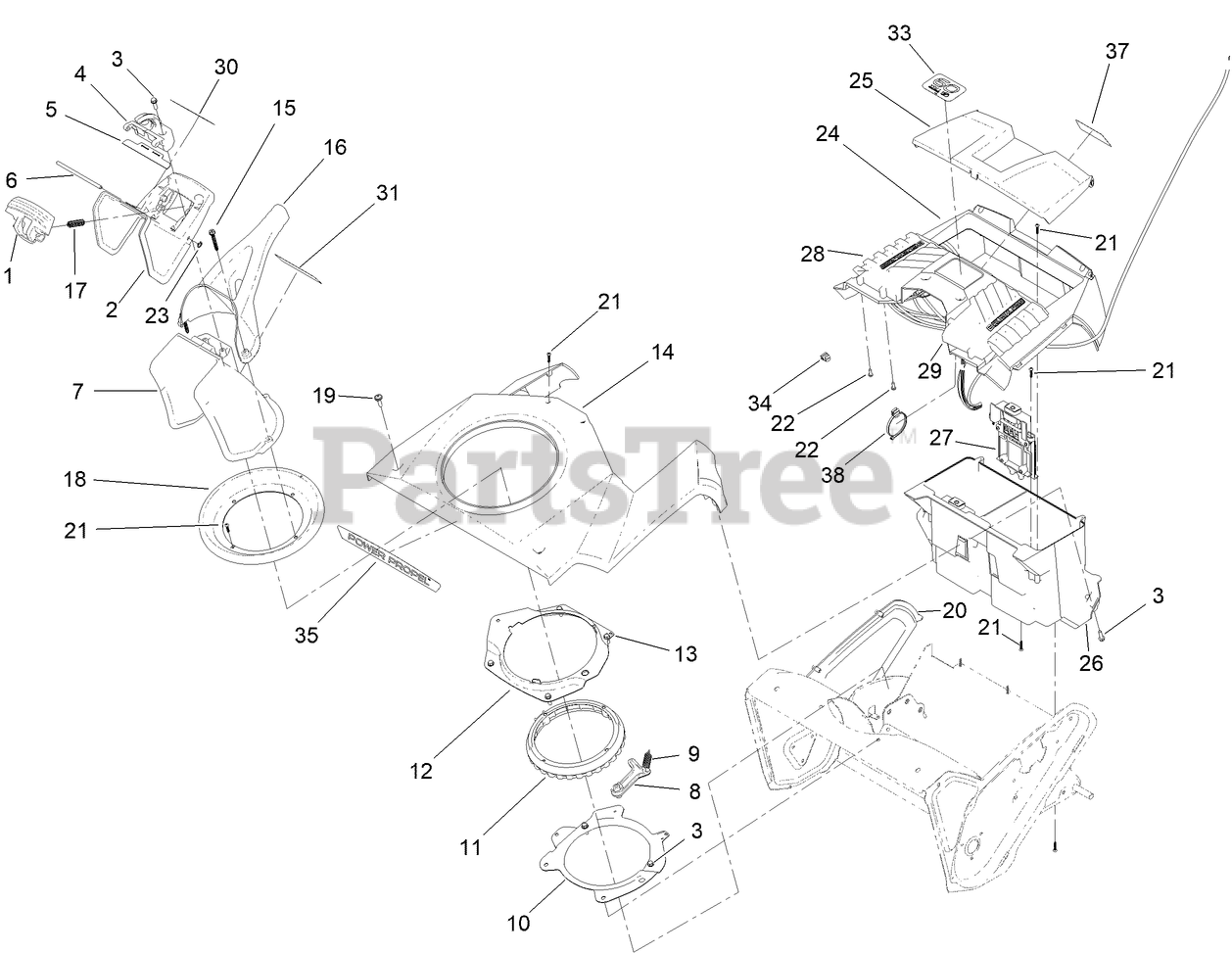

Chute Assembly Parts Diagram

  • Title

1

Toro 108-4941

TRIGGER-DEFLECTOR

$18.99

$

Usually ships in 3-6 days

0

2

Toro 147-1796

DEFLECTOR-CHUTE,

$19.99

$

Usually ships in 3-6 days

0

3

Toro 46-8091

SCREW-HWH

$4.49

$

In Stock, Qty 20+

0

4

Toro 108-4942

HINGE-RATCHET, DEFLECTOR

$15.99

$

In Stock, only 4 left!

0

5

Toro 114-3790

SEAL-DEFLECTOR

$3.99

$

Usually ships in 3-6 days

0

6

Toro 136-8672

HINGE PIN-DEFLECTOR

$3.99

$

In Stock, Qty 20+

0

7

Toro 108-4939

CHUTE

$23.99

$

In Stock, only 1 left!

0

8

Toro 108-4926

PAWL-DETENT

$5.99

$

In Stock, only 2 left!

0

9

Toro 80-4600

SPRING-EXTENSION

$8.99

$

In Stock, only 2 left!

0

10

Toro 108-4883-03

RING-SUPPORT, CHUTE

$19.99

$

In Stock, only 2 left!

0

11

Toro 108-4922

RING-CHUTE, DETENT

$19.99

$

In Stock, only 1 left!

0

12

Toro 108-4874-03

RETAINER-RING, CHUTE

$19.99

$

In Stock, only 4 left!

0

13

Toro 32144-85

SCREW-HWH

$1.99

$

In Stock, Qty 20+

0

14

Toro 144-4146

SHROUD

$55.99

$

Usually ships in 3-6 days

0

15

Toro 114-3751

SCREW-HWH, PLASTITE

$1.99

$

In Stock, Qty 6

0

16

Toro 110-9366

HANDLE-CHUTE

$26.99

$

In Stock, only 2 left!

0

17

Toro 136-7136

SPRING-COMPRESSION

$1.49

$

In Stock, Qty 20+

0

18

Toro 114-3772

SEAL-RING, CHUTE

$21.99

$

In Stock, only 2 left!

0

19

Toro 110-9361

SCREW-PPH
(Superseded to 137-3013)

$2.99

$

In Stock, only 4 left!

0

20

Toro 138-8754

COVER-SIDE

$10.99

$

In Stock, only 1 left!

0

21

Toro 94-4496

SCREW-PPH

$1.49

$

In Stock, Qty 20+

0

22

Toro 3250-12

SCREW-PPH

$0.99

$

Usually ships in 3-6 days

0

23

Toro 104-8310

RING-RETAINING

$0.99

$

In Stock, Qty 8

0

24

Toro 161-0971

COVER-HOUSING

$45.99

$

Usually ships in 3-6 days

0

25

Toro 144-4147

COVER-BATTERY BUCKET

$35.99

$

Usually ships in 3-6 days

0

26

Toro 144-5856

battery bucket

$79.99

$

Usually ships in 3-6 days

0

27

Toro 147-1788

BATTERY TRACK ASM (60A)

$54.99

$

Usually ships in 3-6 days

0

28

Toro 161-2150

PARALLEL MODULE-CONTROLLER E21SP

$234.99

$

Usually ships in 3-6 days

0

29

Toro 161-2149

MOTOR CONTROLLER- E21SP

$263.99

$

Usually ships in 3-6 days

0

30

Toro 147-9420

DECAL-DANGER

$6.99

$

Usually ships in 3-6 days

0

31

Toro 114-9035

DECAL-DANGER, DISCHARGE

$1.99

$

Usually ships in 3-6 days

0

33

Toro 145-8255

DECAL - 60V POWERHEAD, E21SP

$5.99

$

Usually ships in 3-6 days

0

34

Toro 32180-226

CLIP-EDGE, PARALLEL W/TIE

$

$

Currently unavailable

35

Toro 145-8266

DECAL - POWER PROPEL

$5.99

$

Usually ships in 3-6 days

0

37

Toro 147-1787

DECAL-BATTERY BUCKET

$4.49

$

Usually ships in 3-6 days

0

38

Toro 32180-225

CLIP-EDGE, PERPENDICULAR W/TIE

$

$

Currently unavailable
