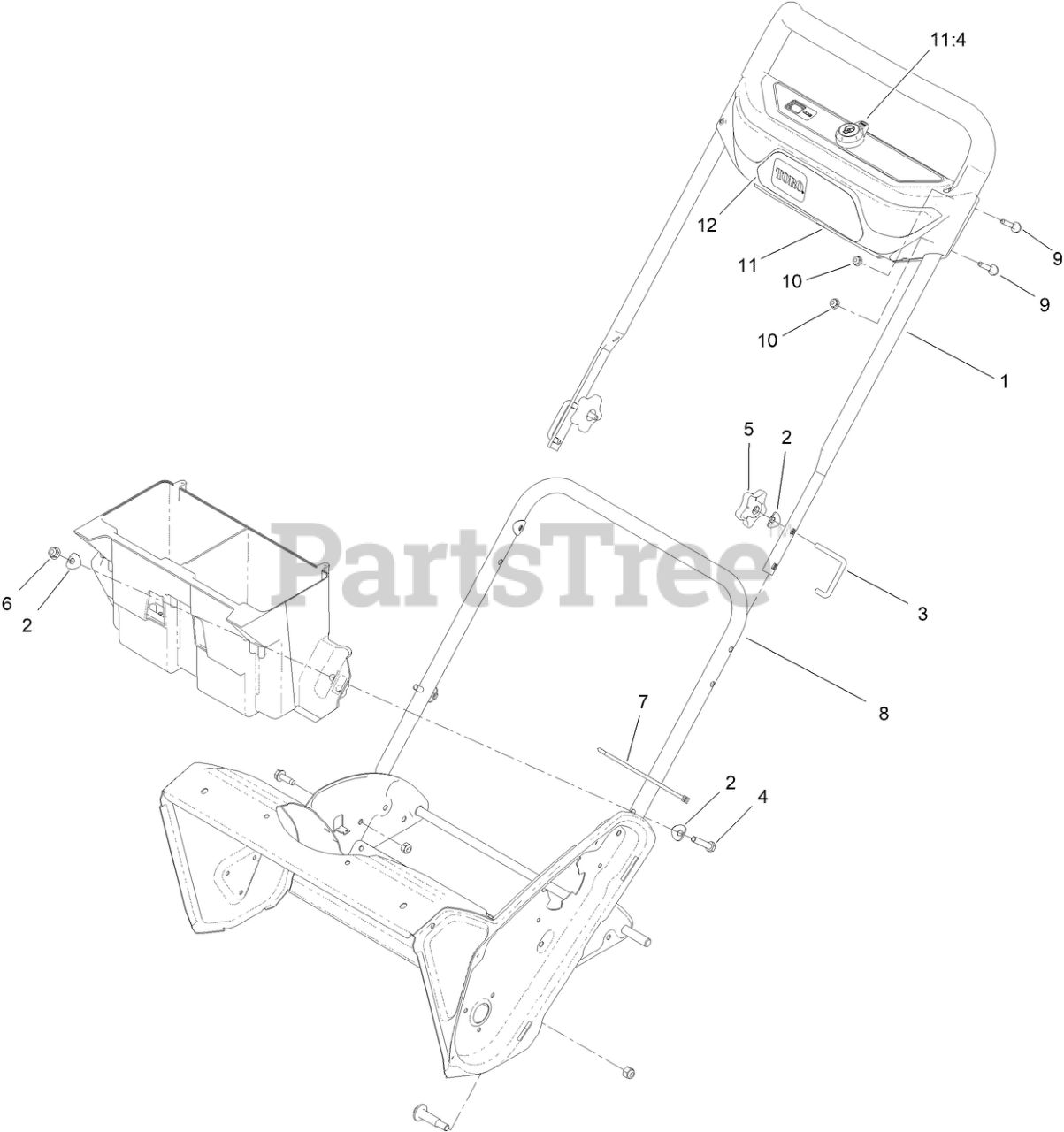

39921 - Toro 21" Power Clear Flex-Force 60V MAX Snowthrower (SN: 415600000 - 999999999) Handle and Control Assembly Parts Diagram

21" Power Clear Flex-Force 60V MAX Snowthrower

Handle and Control Assembly Parts Diagram

  • Title

1

Toro 147-1756

HANDLE BAR-UPPER ASM

$68.99

$

Usually ships in 3-6 days

0

2

Toro 137-3009

WASHER-CUP

$0.99

$

In Stock, Qty 8

0

3

Toro 136-7130

LOCK-HANDLE

$5.99

$

In Stock, only 2 left!

0

4

Toro 125-7944

SCREW-HH

$1.49

$

In Stock, only 4 left!

0

5

Toro 114-3779

KNOB-HANDLE

$6.99

$

In Stock, only 3 left!

0

6

Toro 130-6655

NUT-FLANGE, NI

$0.99

$

In Stock, Qty 17

0

7

Toro 614249

TIE-CABLE

$1.49

$

In Stock, Qty 5

0

8

Toro 144-5868-03

HANDLE-LOWER

$58.99

$

Usually ships in 3-6 days

0

9

Toro 117-7737

SCREW-HANDLE

$2.49

$

In Stock, Qty 7

0

10

Toro 104-7201

NUT-HF

$1.49

$

In Stock, Qty 20+

0

11

Toro 161-2158

DASH PANEL ASSEMBLY, 60V SNOW

$262.99

$

Usually ships in 3-6 days

0

11:4

Toro 139-5255

KEY-BAIL

$4.49

$

In Stock, Qty 9

0

12

Toro 145-8254

DECAL - CONSOLE

$10.99

$

Usually ships in 3-6 days

0
