39938 - Toro 48" Walk-Behind Mower, Fixed Deck, Pistol Grip, Hydro Drive (SN: 314000001 - 314999999) (2014) HYDRAULIC SYSTEM ASSEMBLY Parts Diagram

48" Walk-Behind Mower, Fixed Deck, Pistol Grip, Hydro Drive

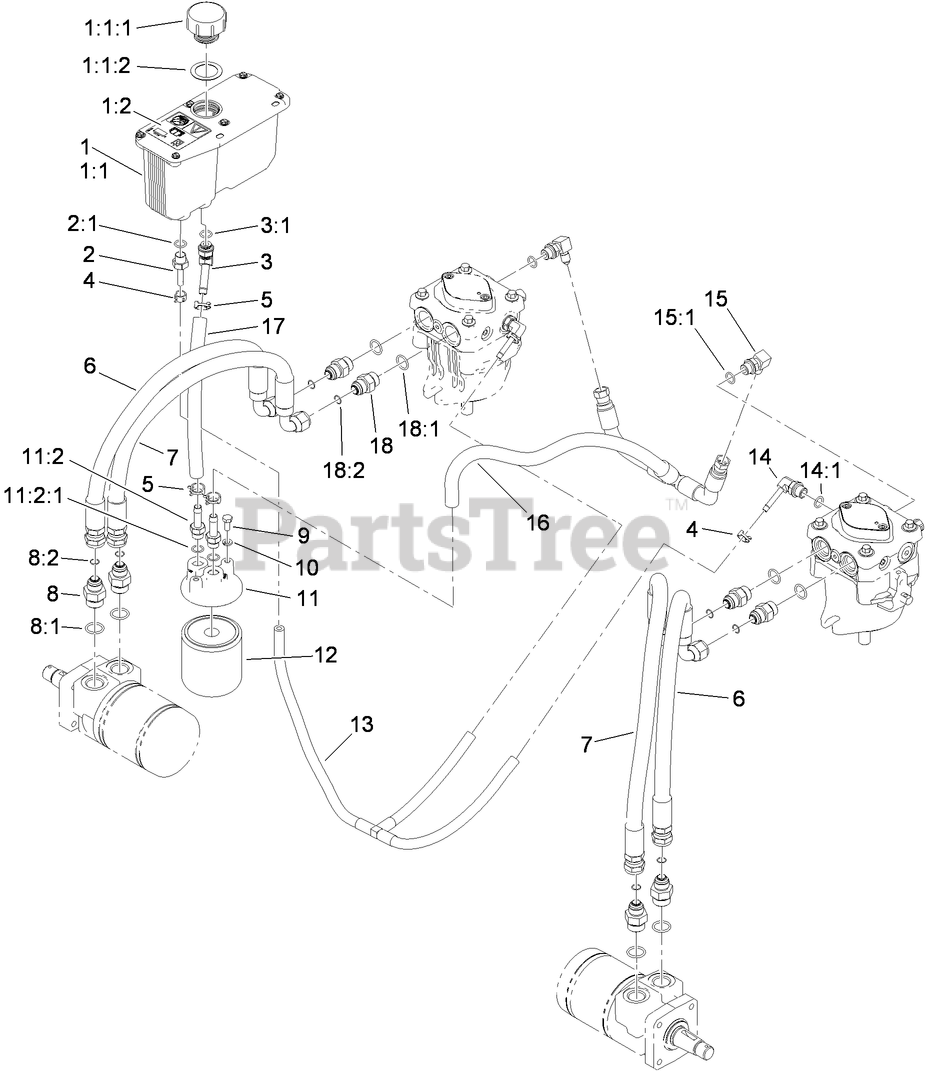

HYDRAULIC SYSTEM ASSEMBLY Parts Diagram

  • Title

1

Toro 107-8433

HYD RESERVOIR ASM

$432.99

$

Usually ships in 3-6 days

0

1:1

Reservoir-HYD

Note: Not serviced separately

$

$

Not available

1:1:1

Toro 103-1948

CAP-RESERVOIR, HYD

$37.99

$

In Stock, Qty 20+

0

1:1:2

Toro 103-1949

GASKET-CAP
(Superseded to 142-2792)

$1.49

$

In Stock, Qty 20+

0

1:2

Toro 115-4212

DECAL-WARNING

$13.99

$

Usually ships in 3-6 days

0

2

Toro 103-1801

Adapter-Straight

$35.99

$

Usually ships in 3-6 days

0

2:1

Toro 237-42

O-RING

$3.49

$

In Stock, Qty 14

0

3

Toro 103-1807

FITTING-BARBED, 45 DEG

$31.99

$

Usually ships in 3-6 days

0

3:1

Toro 237-42

O-RING

$3.49

$

In Stock, Qty 14

0

4

Toro 103-1716

Clamp-Hose

$1.49

$

In Stock, Qty 9

0

5

Toro 103-1988

Clamp-Hose

$1.49

$

In Stock, Qty 20+

0

6

Toro 119-7827

HYD HOSE ASM

$87.99

$

In Stock, only 3 left!

0

7

Toro 119-7826

HYD HOSE ASM

$99.99

$

Usually ships in 3-6 days

0

8

Toro 1-603991

Fitting-Straight

$25.99

$

In Stock, only 4 left!

0

8:1

Toro 237-80

O-RING

$7.49

$

In Stock, Qty 7

0

8:2

Toro 1-603992

O-Ring

$2.99

$

In Stock, Qty 20+

0

9

Toro 321-3

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

10

Toro 1-805004

WASHER-LOCK

$1.49

$

In Stock, Qty 13

0

11

Toro 103-2889

Filter Head ASM

$120.99

$

Usually ships in 3-6 days

0

11:2

Toro 103-1912

ADAPTER-STRAIGHT

$26.99

$

Usually ships in 3-6 days

0

11:2:1

Toro 237-42

O-RING

$3.49

$

In Stock, Qty 14

0

12

Toro 1-633750

FILTER-OIL, HYD

$28.99

$

In Stock, Qty 20+

0

13

Toro 116-0918

CASE DRAIN HOSE ASM

$42.99

$

Usually ships in 3-6 days

0

14

Toro 103-1799

ELBOW-90 DEG

$34.99

$

In Stock, only 1 left!

0

14:1

Toro 237-42

O-RING

$3.49

$

In Stock, Qty 14

0

15

Toro 103-1802

FITTING-ELBOW, 90 DEG

$27.99

$

In Stock, only 2 left!

0

15:1

Toro 1-603921

O-Ring
(Superseded to 237-42)

$3.49

$

In Stock, Qty 14

0

16

Toro 116-2123

CHARGE HOSE ASM

$68.99

$

Usually ships in 3-6 days

0

17

Toro 103-2959

Hose-Charge

$9.49

$

Usually ships in 3-6 days

0

18

Toro 1-603990

FITTING-STRAIGHT

$19.99

$

In Stock, only 4 left!

0

18:1

Toro 1-603920

O-RING

$3.99

$

In Stock, Qty 20+

0

18:2

Toro 1-603992

O-Ring

$2.99

$

In Stock, Qty 20+

0
