39984 - Toro 36" Walk-Behind Mower, Fixed Deck, Pistol Grip, Hydro Drive (SN: 280000001 - 280999999) (2008) HYDRAULIC ASSEMBLY Parts Diagram

36" Walk-Behind Mower, Fixed Deck, Pistol Grip, Hydro Drive

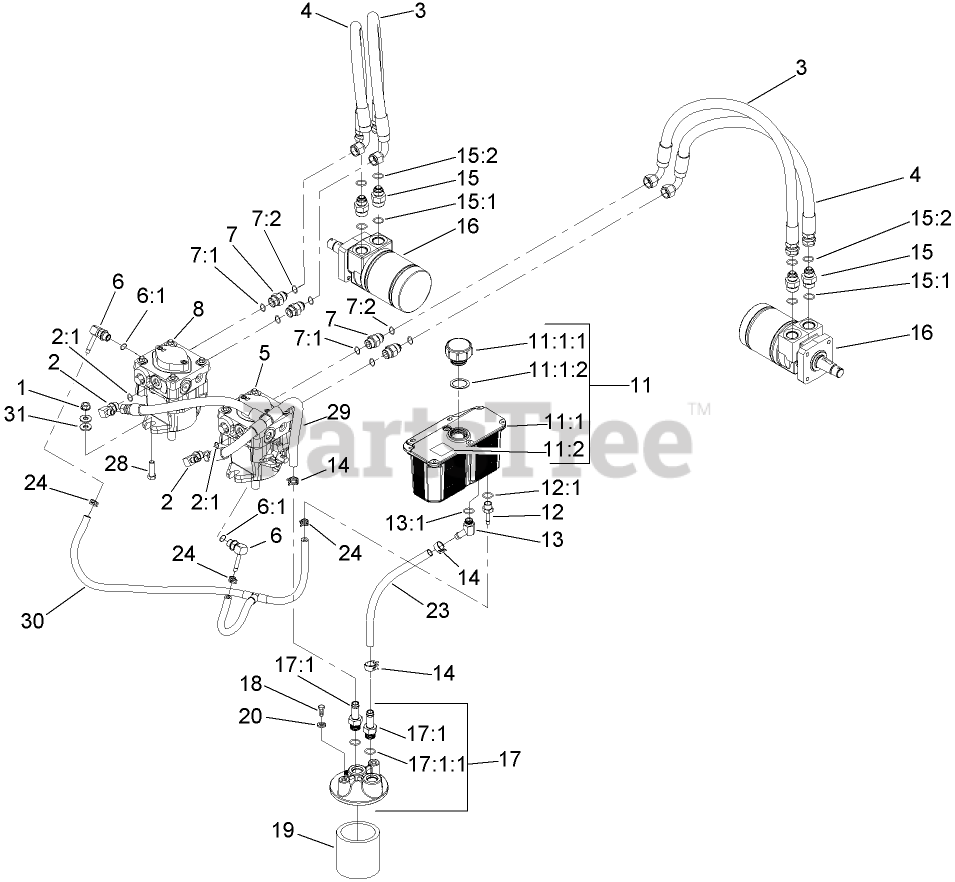

HYDRAULIC ASSEMBLY Parts Diagram

  • Title

1

Toro 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

2

Toro 103-1802

FITTING-ELBOW, 90 DEG

$27.99

$

In Stock, only 2 left!

0

2:1

Toro 1-603921

O-Ring
(Superseded to 237-42)

$3.49

$

In Stock, Qty 14

0

3

Toro 1-323241

HOSE-PRESSURE, HIGH

$96.99

$

Usually ships in 3-6 days

0

4

Toro 1-613034

HOSE-PRESSURE, HIGH
(Superseded to 119-7827)

$87.99

$

In Stock, only 3 left!

0

5

Toro 109-4987

PUMP-HYD

$1477.99

$

Usually ships in 3-6 days

0

5:1

Toro 103-2664

INPUT SHAFT KIT

Note: Not illustrated

$261.99

$

Usually ships in 3-6 days

0

5:2

Toro 94-6922

BEARING-THRUST

Note: Not illustrated

$70.99

$

In Stock, only 2 left!

0

5:3

Toro 103-2666

CYLINDER BLOCK KIT

Note: Not illustrated

$614.99

$

Usually ships in 3-6 days

0

5:4

Toro 105-6185

Plate-Valve

Note: Not illustrated

$125.99

$

Usually ships in 3-6 days

0

5:5

Toro 105-6184

SEAL OVERHAUL KIT

Note: Not illustrated

$101.99

$

In Stock, Qty 9

0

6

Toro 103-1799

ELBOW-90 DEG

$34.99

$

In Stock, only 1 left!

0

6:1

Toro 237-42

O-RING

$3.49

$

In Stock, Qty 14

0

7

Toro 1-603990

FITTING-STRAIGHT

$19.99

$

In Stock, only 4 left!

0

7:1

Toro 1-603920

O-RING

$3.99

$

In Stock, Qty 20+

0

7:2

Toro 1-603992

O-Ring

$2.99

$

In Stock, Qty 20+

0

8

Toro 109-4988

PUMP-HYD

$1614.99

$

Usually ships in 3-6 days

0

8:1

Toro 103-2664

INPUT SHAFT KIT

Note: Not illustrated

$261.99

$

Usually ships in 3-6 days

0

8:2

Toro 94-6922

BEARING-THRUST

Note: Not illustrated

$70.99

$

In Stock, only 2 left!

0

8:3

Toro 103-2666

CYLINDER BLOCK KIT

Note: Not illustrated

$614.99

$

Usually ships in 3-6 days

0

8:4

Toro 105-6185

Plate-Valve

Note: Not illustrated

$125.99

$

Usually ships in 3-6 days

0

8:5

Toro 105-6184

SEAL OVERHAUL KIT

Note: Not illustrated

$101.99

$

In Stock, Qty 9

0

11

Toro 103-1947

HYD Reservoir ASM

$286.99

$

Usually ships in 3-6 days

0

11:1

Reservoir-HYD

Note: Not serviced separately

$

$

Not available

11:1:1

Toro 103-1948

CAP-RESERVOIR, HYD

$37.99

$

In Stock, Qty 20+

0

11:1:2

Toro 103-1949

GASKET-CAP
(Superseded to 142-2792)

$1.49

$

In Stock, Qty 20+

0

11:2

Toro 1-523552

DECAL-TANK, HYD

$2.49

$

In Stock, Qty 11

0

12

Toro 103-1801

Adapter-Straight

$35.99

$

Usually ships in 3-6 days

0

12:1

Toro 237-42

O-RING

$3.49

$

In Stock, Qty 14

0

13

Toro 103-1807

FITTING-BARBED, 45 DEG

$31.99

$

Usually ships in 3-6 days

0

13:1

Toro 237-42

O-RING

$3.49

$

In Stock, Qty 14

0

14

Toro 103-1988

Clamp-Hose

$1.49

$

In Stock, Qty 20+

0

15

Toro 1-603991

Fitting-Straight

$25.99

$

In Stock, only 4 left!

0

15:1

Toro 237-80

O-RING

$7.49

$

In Stock, Qty 7

0

15:2

Toro 1-603992

O-Ring

$2.99

$

In Stock, Qty 20+

0

16

Toro 1-603718

HYD MOTOR ASM

$1243.99

$

Usually ships in 3-6 days

0

16:1

Toro 1-000119

SEAL KIT

Note: Not illustrated

$242.99

$

In Stock, only 1 left!

0

17

Toro 103-2889

Filter Head ASM

$120.99

$

Usually ships in 3-6 days

0

17:1

Toro 103-1912

ADAPTER-STRAIGHT

$26.99

$

Usually ships in 3-6 days

0

17:1:1

Toro 237-42

O-RING

$3.49

$

In Stock, Qty 14

0

18

Toro 321-3

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

19

Toro 1-633750

FILTER-OIL, HYD

$28.99

$

In Stock, Qty 20+

0

20

Toro 1-805004

WASHER-LOCK

$1.49

$

In Stock, Qty 13

0

23

Toro 103-2959

Hose-Charge

$9.49

$

Usually ships in 3-6 days

0

24

Toro 103-1716

Clamp-Hose

$1.49

$

In Stock, Qty 9

0

28

Toro 323-7

SCREW-HH

$3.49

$

In Stock, Qty 20+

0

29

Toro 103-3914

CHARGE HOSE ASM

$83.99

$

Usually ships in 3-6 days

0

30

Toro 103-4019

CASE DRAIN HOSE ASM

$76.99

$

In Stock, only 1 left!

0

31

Toro 3256-3

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0
