41-20OE03 (520-H) - Toro Garden Tractor (SN: 020000001 - 029999999) (1992) Hydrostatic Lift Linkage Parts Diagram

Garden Tractor

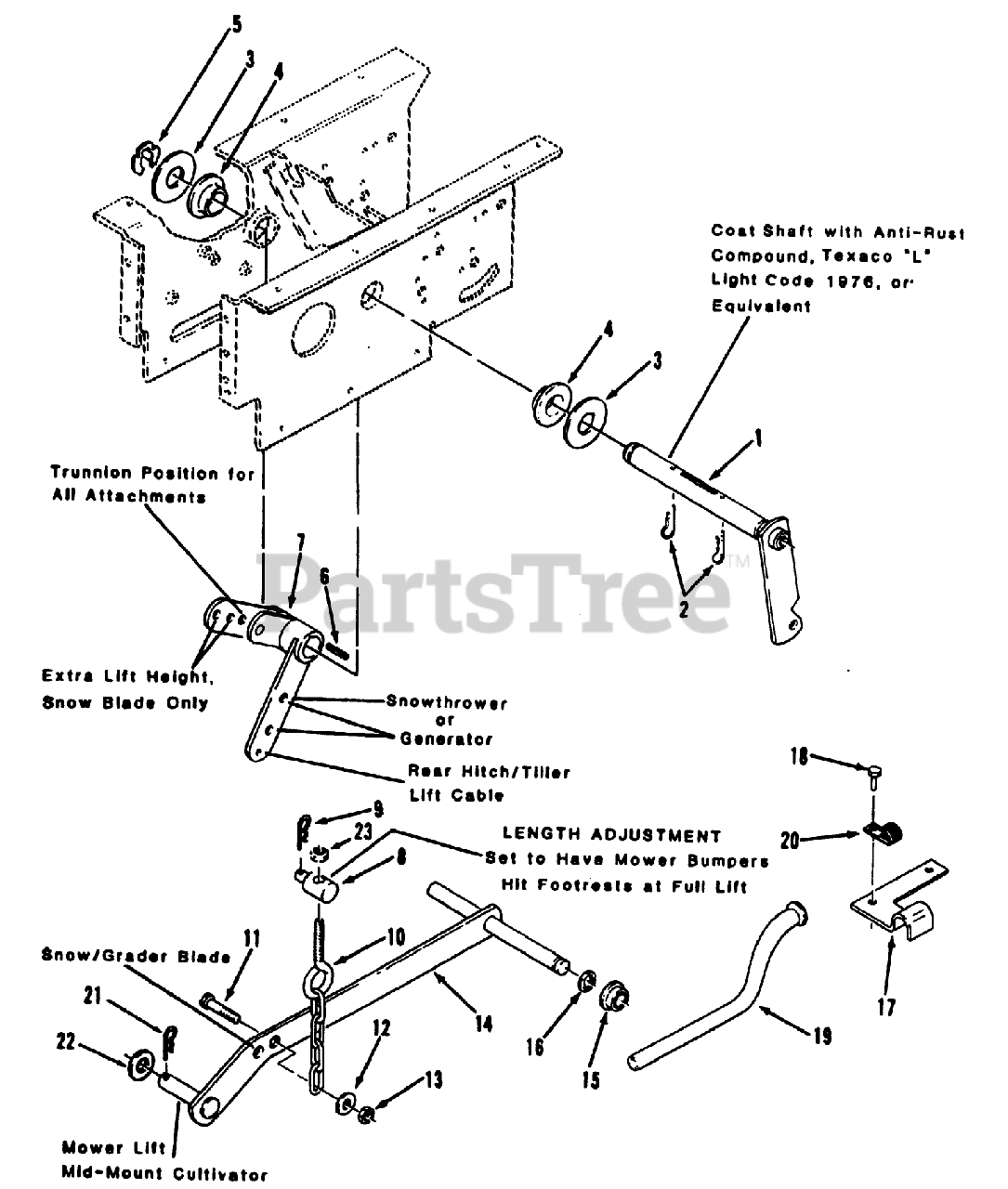

Hydrostatic Lift Linkage Parts Diagram

  • Title

1

Toro 121100

DISCONTINUED

$

$

Not available

2

Toro 933507

Pin-Cotter
(Superseded to 9335074)

$5.99

$

In Stock, only 4 left!

0

3

Toro 3256-30

WASHER-FLAT

$

$

Not available

4

Toro 106269

BEARING-FLANGE

$10.99

$

Usually ships in 3-6 days

0

5

Toro 32121-91

PIN-SPRING

$1.49

$

Usually ships in 3-6 days

0

6

Toro 1121

KEY-SQUARE

$

$

Not available

7

Toro 79-5700

DISCONTINUED

$

$

Not available

8

Toro 79-5720

TRUNNION

$98.99

$

Usually ships in 3-6 days

0

9

Toro 933505

Hairpin Cotter
(Superseded to 9335054)

$1.99

$

In Stock, Qty 20+

0

10

Toro 106522

CHAIN-LIFT

$

$

Not available

11

Toro 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

12

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

13

Toro 3296-29

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

14

Toro 120400

DISCONTINUED
(Superseded to 120400-03)

$

$

Not available

15

Toro 6229

BUSHING

$10.99

$

In Stock, only 3 left!

0

16

Toro 32120-47

RING-RETAINING, EXTERNAL

$1.49

$

In Stock, Qty 10

0

17

Tube-Clamp

$

$

Not available

18

Toro 3235-22

SCREW-HH, LOCK

$3.49

$

Usually ships in 3-6 days

0

19

Toro 108315

See Supercession: 108315-01
(Superseded to 108315-01)

$65.99

$

Usually ships in 3-6 days

0

20

Toro 8830

CLIP

$

$

Not available

21

Toro 933505

Hairpin Cotter
(Superseded to 9335054)

$1.99

$

In Stock, Qty 20+

0

22

Toro 3256-26

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

23

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0
