44409 - Toro 36" ProLine Walk-Behind Mower, Floating Deck (SN: 410000000 - 415199999) Frame Assembly Parts Diagram

36" ProLine Walk-Behind Mower, Floating Deck

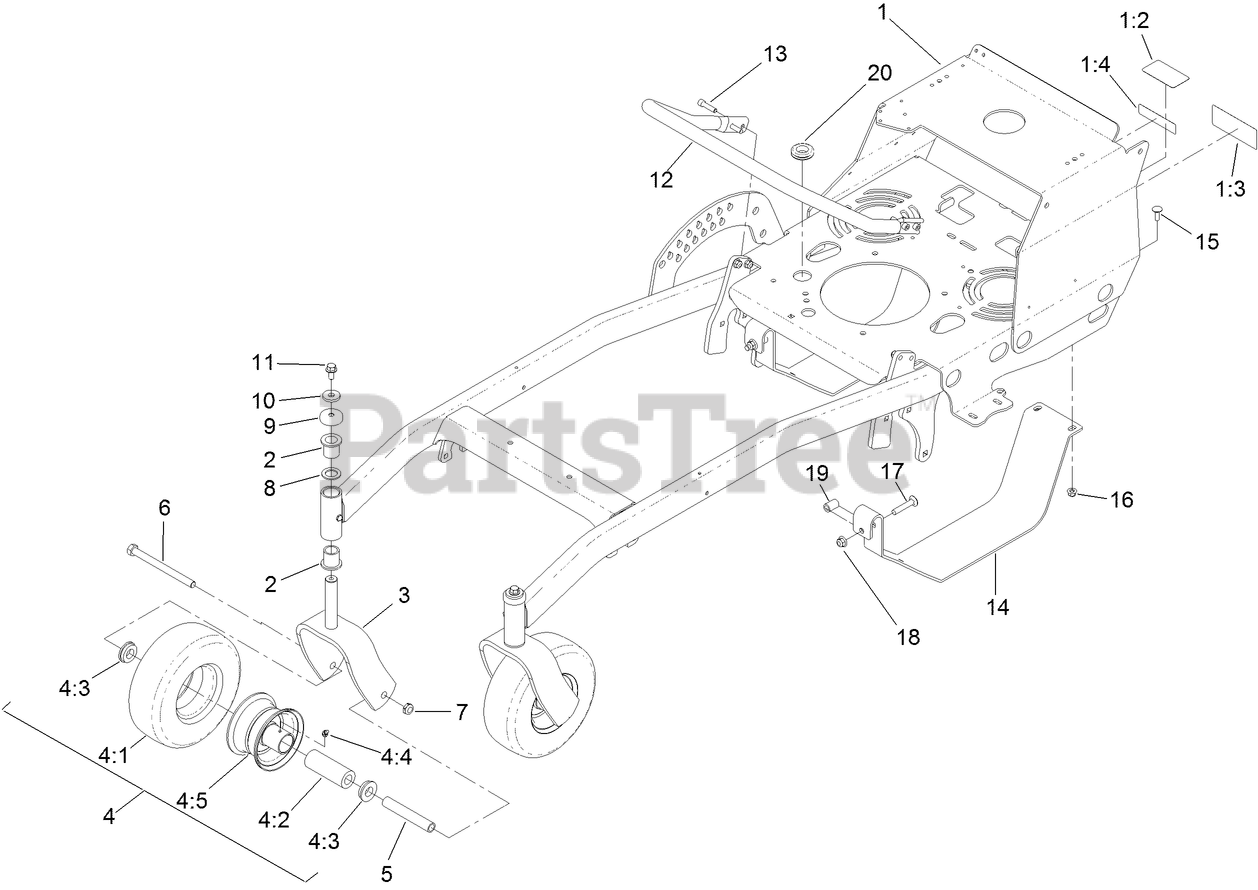

Frame Assembly Parts Diagram

  • Title

1

Toro 140-1864

FRAME ASM
(Superseded to 140-1864SP)

$1646.99

$

Usually ships in 3-6 days

0

1:2

Toro 138-8820

DECAL - BYPASS

$5.99

$

Usually ships in 3-6 days

0

1:3

Toro 126-1400

DECAL-WARNING, SULKY

$5.99

$

Usually ships in 3-6 days

0

1:4

Toro 98-1977

DECAL-WARNING

$12.99

$

Usually ships in 3-6 days

0

2

Toro 1-303514

BEARING-FLANGED

$13.99

$

In Stock, Qty 20+

0

3

Toro 116-7941-01

FORK, CASTER

$108.99

$

In Stock, only 2 left!

0

4

Toro 140-4285

WHEEL AND TIRE ASM

$129.99

$

Usually ships in 3-6 days

0

4:1

TIRE

Note: Not serviced separately

$

$

Not available

4:2

Toro 1-513809

BEARING

$39.99

$

In Stock, Qty 13

0

4:3

Toro 1-513810

BUSHING

$6.49

$

In Stock, Qty 20+

0

4:4

Toro 302-61

FITTING-GREASE

$12.99

$

In Stock, only 2 left!

0

4:5

WHEEL - 4 X 2.25 X 4.25 TUBE

Note: Not serviced separately

$

$

Not available

5

Toro 1-513547

SPACER

$13.99

$

In Stock, Qty 20+

0

6

Toro 325-20

SCREW-HH

$8.49

$

In Stock, Qty 15

0

7

Toro 3296-45

NUT-HEX

$4.49

$

In Stock, Qty 20+

0

8

Toro 3-7898

WASHER-THRUST

$1.99

$

Usually ships in 3-6 days

0

9

Toro 126-1425

CAP, DUST

$4.49

$

In Stock, Qty 20+

0

10

Toro 1-373034

WASHER

$3.99

$

In Stock, Qty 20+

0

11

Toro 110-1718

SCREW-HHF

$2.49

$

In Stock, Qty 20+

0

12

Toro 138-5880-03

TUBE, MUFFLER GUARD

$168.99

$

Usually ships in 3-6 days

0

13

Toro 3274-18

SCREW-HSH

$10.99

$

In Stock, only 2 left!

0

14

Toro 138-6816-03

GUARD-TRANSMISSION

$112.99

$

Usually ships in 3-6 days

0

15

Toro 3230-10

BOLT-CARR

$4.49

$

In Stock, Qty 20+

0

16

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

17

Toro 117-9971

BOLT-CARRIAGE

$3.99

$

Usually ships in 3-6 days

0

18

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

19

Toro 114-2754

SPACER

$12.99

$

In Stock, only 4 left!

0

20

Toro 1-543286

GROMMET

$13.99

$

Usually ships in 3-6 days

0
