44448 - Toro 48" ProLine Walk-Behind Mower, Floating Deck (SN: 413000000 - 415299999) 48 Inch Deck Assembly Parts Diagram

48" ProLine Walk-Behind Mower, Floating Deck

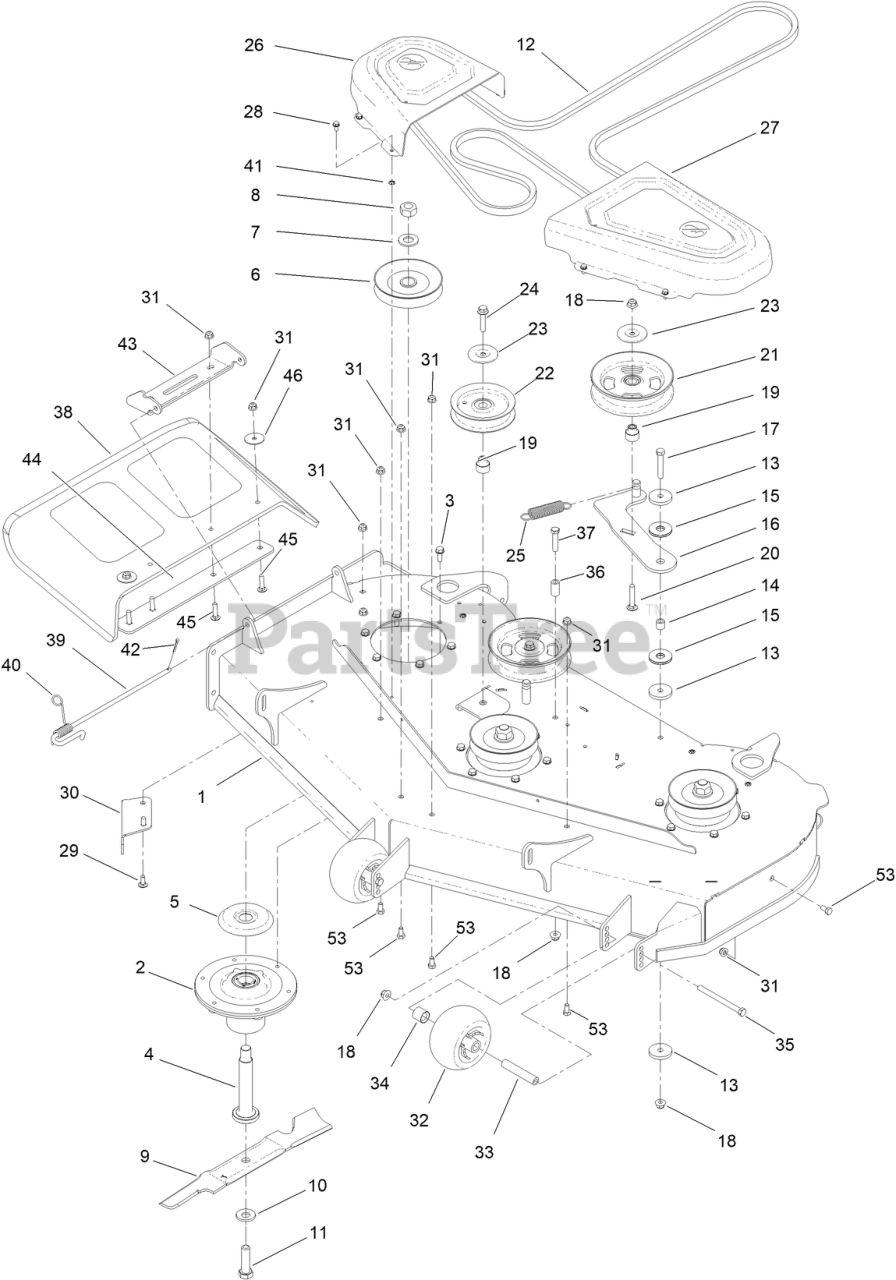

48 Inch Deck Assembly Parts Diagram

  • Title

1

Toro 138-6877

DECK ASM-48"

$1472.99

$

Usually ships in 3-6 days

0

2

Toro 139-2357

SPINDLE ASM

$117.99

$

In Stock, Qty 20+

0

3

Toro 32144-41

SCREW-TAPTITE

$5.99

$

In Stock, Qty 20+

0

4

Toro 115-2642

SHAFT-SPINDLE

$59.99

$

In Stock, Qty 20+

0

5

Toro 138-7221

SHIELD-BEARING

$5.99

$

In Stock, Qty 20+

0

6

Toro 138-7224

PULLEY

$88.99

$

Usually ships in 3-6 days

0

7

Toro 7-4150

WASHER

$1.49

$

In Stock, Qty 20+

0

8

Toro 3219-7

NUT-HEX

$1.99

$

In Stock, Qty 20+

0

9

Toro 138-8888-03

BLADE - HI FLOW, 16.50 IN

$34.99

$

Usually ships in 3-6 days

0

10

Toro 125-1736

WASHER-BELLEVILLE

$4.99

$

In Stock, Qty 20+

0

11

Toro 51-4060

SCREW-BLADE

$8.99

$

In Stock, Qty 20+

0

12

Toro 126-0784

BELT, DECK

$160.99

$

In Stock, only 2 left!

0

13

Toro 110-9981

WASHER-PLAIN

$16.99

$

In Stock, Qty 20+

0

14

Toro 139-7933

BUSHING-IDLER

$9.49

$

In Stock, only 1 left!

0

15

Toro 139-7932

WASHER-FRICTION, COMPOSITE

$7.99

$

In Stock, only 2 left!

0

16

Toro 139-7915

IDLER ARM ASM

$50.99

$

In Stock, only 2 left!

0

17

Toro 323-11

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

18

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

19

Toro 138-7227

BUSHING-IDLER

$3.49

$

In Stock, Qty 20+

0

20

Toro 3231-6

SCREW-CARR

$3.49

$

In Stock, Qty 18

0

21

Toro 132-9425

PULLEY-IDLER, FLAT

$50.99

$

Usually ships in 3-6 days

0

22

Toro 132-4718

PULLEY-IDLER, FLAT

$36.99

$

In Stock, Qty 20+

0

23

Toro 126-8043

SHIELD-DUST

$3.49

$

In Stock, Qty 20+

0

24

Toro 3234-19

SCREW-HHF

$3.49

$

In Stock, Qty 5

0

25

Toro 1-323071

SPRING-EXTENSION

$17.99

$

In Stock, Qty 9

0

26

Toro 133-9283

COVER-BELT, RH

$22.99

$

In Stock, only 1 left!

0

27

Toro 133-9282

COVER-BELT, LH

$26.99

$

In Stock, only 1 left!

0

28

Toro 32144-4

SCREW-HWH

$1.49

$

In Stock, Qty 20+

0

29

Toro 3230-23

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0

30

Toro 117-7418-03

BAFFLE-CUTOFF

$25.99

$

Usually ships in 3-6 days

0

31

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

32

Toro 1-603299

ROLLER-SCALP, ANTI

$26.99

$

In Stock, Qty 20+

0

33

Toro 138-7229

TUBE-SPANNER

$6.99

$

In Stock, Qty 9

0

34

Toro 104-0892

SPACER-AXLE, REAR

$5.99

$

In Stock, Qty 17

0

35

Toro 323-23

SCREW-HH

$5.99

$

In Stock, Qty 20+

0

36

Toro 138-7230

SPACER-FENDER

$5.49

$

Usually ships in 3-6 days

0

37

Toro 323-9

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

38

Toro 117-1270

DEFLECTOR

$87.99

$

In Stock, only 1 left!

0

39

Toro 138-7231

PIN-CHUTE

$9.49

$

In Stock, only 2 left!

0

40

Toro 138-7232

SPRING-TORSION

$2.99

$

In Stock, Qty 17

0

41

Toro 1-803037

NUT-RETAINING

$1.99

$

Usually ships in 3-6 days

0

42

Toro 139-2614

PIN-COTTER

$1.49

$

Usually ships in 3-6 days

0

43

Toro 140-4282-03

BRACKET UPPER, DEFLECTOR

$38.99

$

Usually ships in 3-6 days

0

44

Toro 115-5048-03

PLATE-DEFLECTOR

$49.99

$

In Stock, only 2 left!

0

45

Toro 3230-3

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0

46

Toro 3256-68

WASHER-FLAT

$3.49

$

In Stock, Qty 20+

0

53

Toro 322-2

SCREW-HH

$2.99

$

In Stock, Qty 20+

0
