44454 - Toro 54" ProLine Walk-Behind Mower, Floating Deck (SN: 413000000 - 415299999) Frame Assembly Parts Diagram

54" ProLine Walk-Behind Mower, Floating Deck

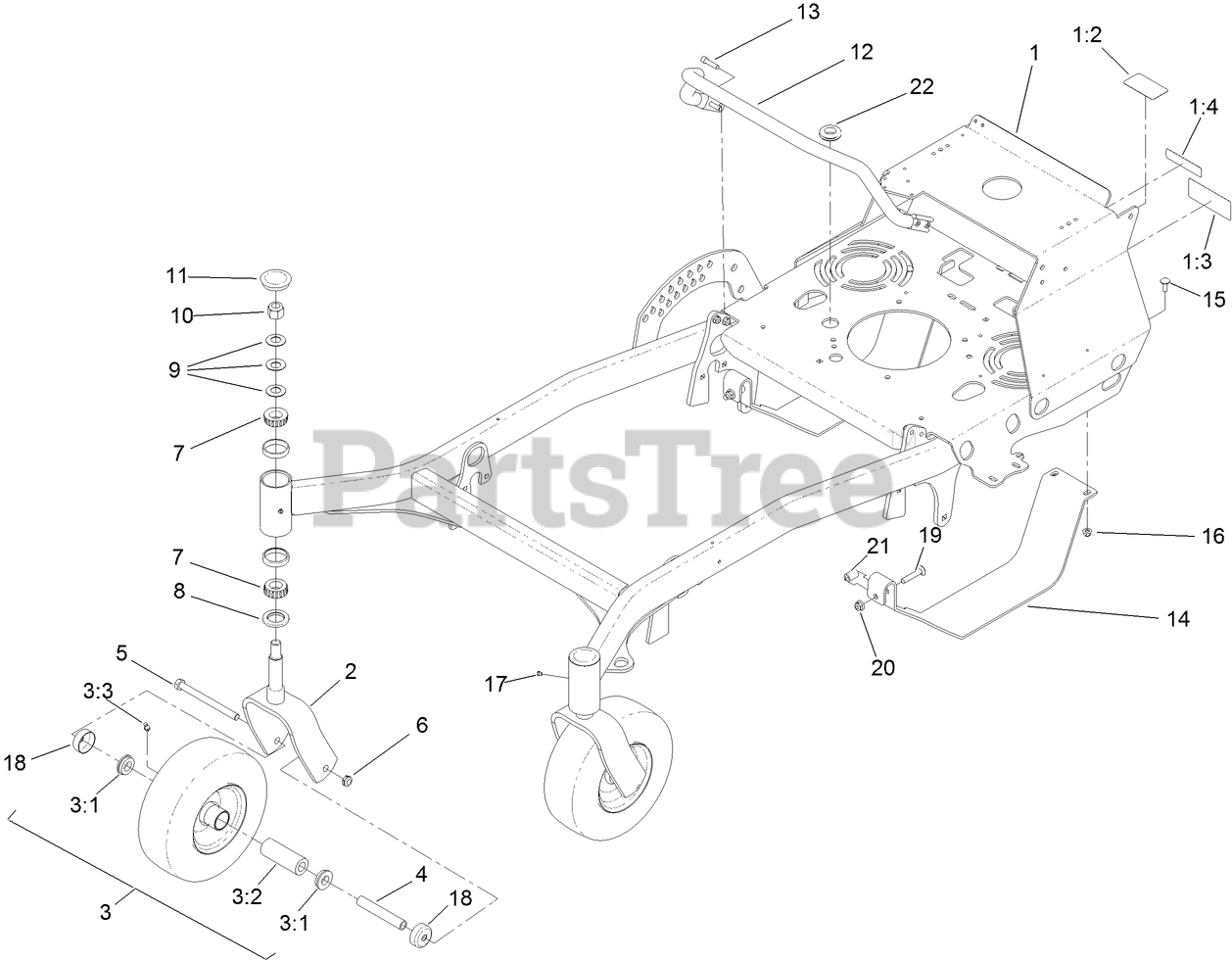

Frame Assembly Parts Diagram

  • Title

1

Toro 140-1865

FRAME ASM

$1722.99

$

Usually ships in 3-6 days

0

1:2

Toro 138-8820

DECAL - BYPASS

$5.99

$

Usually ships in 3-6 days

0

1:3

Toro 126-1400

DECAL-WARNING, SULKY

$5.99

$

Usually ships in 3-6 days

0

1:4

Toro 98-1977

DECAL-WARNING

$12.99

$

Usually ships in 3-6 days

0

2

Toro 121-7988-01

FORK-CASTER
(Superseded to 147-6343-01)

$201.99

$

In Stock, only 2 left!

0

3

Toro 140-4286

WHEEL AND TIRE ASM

$173.99

$

Usually ships in 3-6 days

0

3:1

Toro 1-513810

BUSHING

$6.49

$

In Stock, Qty 20+

0

3:2

Toro 1-513809

BEARING

$39.99

$

In Stock, Qty 13

0

3:3

Toro 302-61

FITTING-GREASE

$12.99

$

In Stock, only 2 left!

0

4

Toro 1-513547

SPACER

$13.99

$

In Stock, Qty 20+

0

5

Toro 325-20

SCREW-HH

$8.49

$

In Stock, Qty 14

0

6

Toro 3296-45

NUT-HEX

$4.49

$

In Stock, Qty 20+

0

7

Toro 1-543509

BEARING-ROLLER, TAPERED

$15.99

$

In Stock, Qty 20+

0

8

Toro 1-543511

SEAL-GREASE

$12.99

$

In Stock, Qty 17

0

9

Toro 1-633508

WASHER-BELLVILLE

$3.99

$

In Stock, Qty 20+

0

10

Toro 3296-51

NUT-LOCK, NI

$7.49

$

In Stock, Qty 20+

0

11

Toro 103-4882

CAP-GREASE

$8.99

$

In Stock, Qty 20+

0

12

Toro 138-5881-03

TUBE, MUFFLER GUARD

$140.99

$

Usually ships in 3-6 days

0

13

Toro 3274-18

SCREW-HSH

$10.99

$

In Stock, only 2 left!

0

14

Toro 139-2938-03

GUARD-TRANSMISSION

$99.99

$

Usually ships in 3-6 days

0

15

Toro 3230-10

BOLT-CARR

$4.49

$

In Stock, Qty 20+

0

16

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

17

Toro 1-811010

PLUG

$5.99

$

In Stock, only 3 left!

0

18

Toro 133-7088

GUARD-SEAL

$2.99

$

In Stock, only 4 left!

0

19

Toro 117-9971

BOLT-CARRIAGE

$3.99

$

Usually ships in 3-6 days

0

20

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

21

Toro 114-2754

SPACER

$12.99

$

In Stock, only 4 left!

0

22

Toro 1-543286

GROMMET

$13.99

$

Usually ships in 3-6 days

0
