47-08BL01 - Toro Rear Bagger (SN: 010000001 - 019999999) (1991) Hopper Assembly Parts Diagram

Rear Bagger

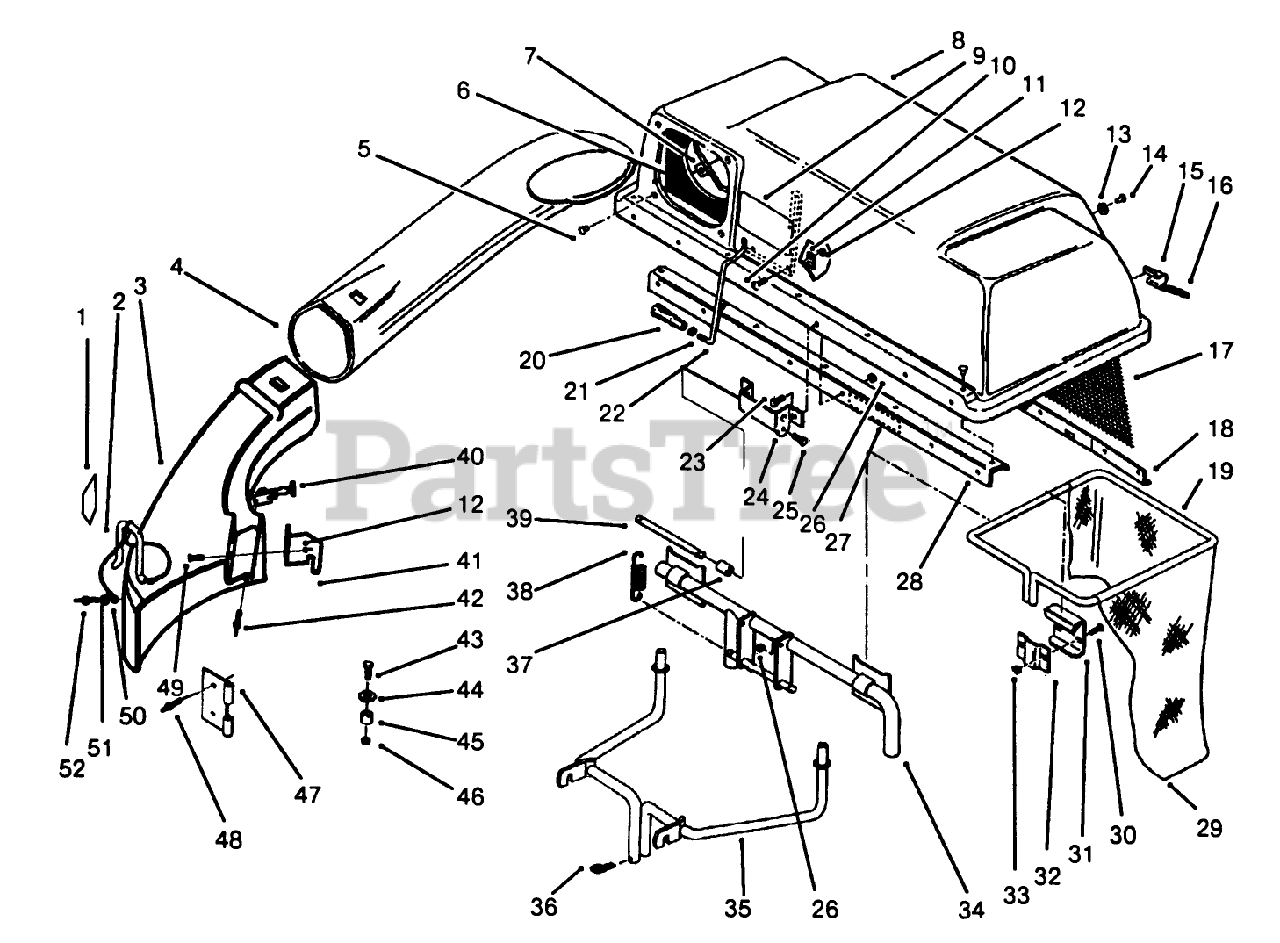

Hopper Assembly Parts Diagram

  • Title

1

Toro 54-9220

See Supercession: 93-1122
(Superseded to 93-1122)

$10.99

$

In Stock, Qty 9

0

2

Toro 28-8130

PIN-LOCKING, CHUTE

$13.99

$

Usually ships in 3-6 days

0

3

Toro 120210

ELBOW-BAGGER, 38 INCH

$322.99

$

Usually ships in 3-6 days

0

4

Toro 78-0840

CHUTE-BAGGER

$378.99

$

Usually ships in 3-6 days

0

5

Toro 933506

Hairpin
(Superseded to 9335064)

$2.49

$

In Stock, Qty 7

0

6

Toro 117239

SEAL-CHUTE

$100.99

$

Usually ships in 3-6 days

0

7

Toro 114966

CLAMP-SEAL

$77.99

$

Usually ships in 3-6 days

0

8

Toro 114963

DISCONTINUED

$

$

Not available

9

Toro 116347

DECAL

$

$

Not available

10

Toro 901837

Screw

$

$

Currently unavailable

11

Toro 116130

Clip
(Superseded to 2412-91)

$3.99

$

In Stock, only 2 left!

0

12

Toro 915661

See Supercession: 3296-42
(Superseded to 3296-42)

$0.99

$

In Stock, Qty 20+

0

13

Toro 920270

See Supercession: 9202704
(Superseded to 9202704)

$1.99

$

In Stock, Qty 11

0

14

Toro 114439

RIVET-BLIND

$1.49

$

In Stock, Qty 20+

0

15

Toro 115481

See Supercession: 115481-03
(Superseded to 115481-03)

$26.99

$

In Stock, only 3 left!

0

16

Toro 115880

GRIP

$5.99

$

In Stock, only 2 left!

0

17

Toro 78-9720

DISCONTINUED

$

$

Not available

18

Toro 115879

See Supercession: 92-1736-03
(Superseded to 92-1736-03)

$56.99

$

Usually ships in 3-6 days

0

19

Toro 114972

See Supercession: 114972-03
(Superseded to 114972-03)

$124.99

$

In Stock, only 2 left!

0

20

Toro 118320

HANDLE-TAPERED

$

$

Not available

21

Toro 915234

See Supercession: 3218-1
(Superseded to 3218-1)

$1.49

$

In Stock, only 4 left!

0

22

Toro 114969

FEELER-FILL, BAG

$

$

Not available

23

Toro 908034

See Supercession: 323-6
(Superseded to 323-6)

$2.99

$

In Stock, Qty 20+

0

24

Toro 114961

See Supercession: 114961-03
(Superseded to 114961-03)

$18.99

$

Usually ships in 3-6 days

0

25

Toro 908003

See Supercession: 321-4
(Superseded to 321-4)

$1.49

$

In Stock, Qty 20+

0

26

Toro 915663

See Supercession: 3296-39
(Superseded to 3296-39)

$2.99

$

In Stock, Qty 20+

0

27

Toro 116004

DISCONTINUED

$

$

Not available

28

Toro 114964

See Supercession: 88-9570
(Superseded to 88-9570)

$108.99

$

Usually ships in 3-6 days

0

29

Toro 114970

DISCONTINUED

$

$

Not available

30

Toro 900037

See Supercession: 3230-1
(Superseded to 3230-1)

$1.99

$

In Stock, Qty 20+

0

31

Toro 114973

See Supercession: 114973-03
(Superseded to 114973-03)

$28.99

$

In Stock, only 2 left!

0

32

Toro 114974

See Supercession: 114974-03
(Superseded to 114974-03)

$15.99

$

In Stock, only 2 left!

0

33

Toro 915662

See Supercession: 3296-29
(Superseded to 3296-29)

$2.99

$

In Stock, Qty 20+

0

34

Toro 114955

See Supercession: 114955-03
(Superseded to 114955-03)

$823.99

$

Usually ships in 3-6 days

0

35

Toro 114952

ASM-QUICK ATTACH *B

$

$

Not available

36

Toro 933506

Hairpin
(Superseded to 9335064)

$2.49

$

In Stock, Qty 7

0

37

Toro 979094

See Supercession: 9790944
(Superseded to 9790944)

$2.99

$

Usually ships in 3-6 days

0

38

Toro 114962

SPRING-EXTENSION

$14.99

$

Usually ships in 3-6 days

0

39

Toro 114960

PIN-SPRING

$29.99

$

Usually ships in 3-6 days

0

40

Toro 57-4670

See Supercession: 117344
(Superseded to 117344)

$41.99

$

In Stock, only 4 left!

0

41

Toro 120312

LATCH-BAGGER ELBOW

$

$

Not available

42

Toro 3296-13

NUT-LOCK, NI

$4.49

$

In Stock, Qty 16

0

43

Toro 908036

See Supercession: 323-8
(Superseded to 323-8)

$1.49

$

In Stock, Qty 20+

0

44

Toro 920039

See Supercession: 3256-4
(Superseded to 3256-4)

$1.99

$

In Stock, Qty 20+

0

45

Toro 105474

SPACER

$

$

Not available

46

Toro 915663

See Supercession: 3296-39
(Superseded to 3296-39)

$2.99

$

In Stock, Qty 20+

0

47

Toro 28-8050

BRACKET-MOUNTING, CHUTE

$27.99

$

Usually ships in 3-6 days

0

48

Toro 3290-412

RIVET-BLIND

$3.99

$

In Stock, Qty 17

0

49

Toro 911460

See Supercession: 9114604
(Superseded to 9114604)

$1.49

$

Usually ships in 3-6 days

0

50

Toro 28-8070

LANYARD

$16.99

$

Usually ships in 3-6 days

0

51

Toro 3296-49

NUT-LOCK, NI

$15.99

$

In Stock, only 2 left!

0

52

Toro 3290-282

RIVET-BLIND

$0.99

$

In Stock, Qty 7

0

Toro 112403

DECAL-OVERLAY

Note: Not illustrated

$

$

Not available
