51241 - Toro 9" String Trimmer, Electric (SN: 220000001 - 220999999) (2002) Trimmer Assembly Parts Diagram

9" String Trimmer, Electric

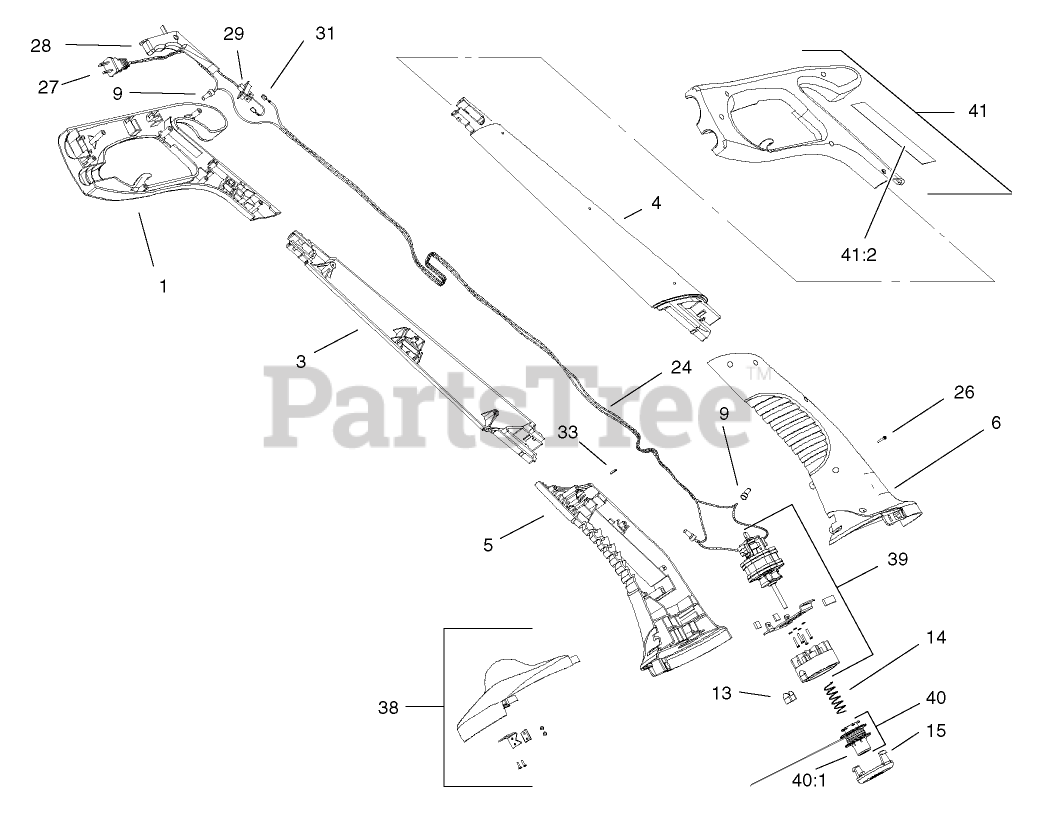

Trimmer Assembly Parts Diagram

  • Title

1

Toro 100-9701

HANDLE-LH

$

$

Not available

3

Toro 100-9703

MID-SECTION, LH

$

$

Not available

4

Toro 100-9704

MID-SECTION, RH

$

$

Not available

5

Toro 100-9705

HOUSING-MOTOR, LH

$

$

Not available

6

Toro 100-9706

HOUSING-MOTOR, RH

$

$

Not available

9

Toro 100-9709

CONNECTOR-WIRE

$

$

Not available

13

Toro 73-8260

EYELET

$3.49

$

Usually ships in 3-6 days

0

14

Toro 73-8270

SPRING-COMPRESSION

$11.99

$

In Stock, Qty 20+

0

15

Toro 73-8250

CAP-SMALL

$5.99

$

In Stock, Qty 8

0

24

Toro 100-9754

WIRE

$

$

Not available

26

Toro 100-9711

SCREW

$

$

Not available

27

Toro 100-9712

PLUG-INPUT

$

$

Not available

28

Toro 100-9719

TRIGGER-ON/OFF

$

$

Not available

29

Toro 100-9713

DISCONTINUED

$

$

Not available

31

Toro 100-9755

TERMINAL-FEMALE

$19.99

$

Usually ships in 3-6 days

0

33

Toro 100-9750

PIN-RETAINING

$28.99

$

Usually ships in 3-6 days

0

38

Toro 100-9714

SHIELD ASM

$

$

Not available

39

Toro 100-9715

MOTOR/DRUM ASM

$

$

Not available

40

Toro 100-9718

SPOOL ASM

$13.99

$

In Stock, only 3 left!

0

40:1

Toro 73-8240

SPOOL

$13.99

$

Usually ships in 3-6 days

0

41

Toro 100-9720

DISCONTINUED

$

$

Not available

41:2

Toro 100-9700

DECAL-SERIAL/WARNING

$

$

Not available
