51573 - Toro Rake and Vac Blower Vacuum (SN: 210000001 - 210999999) (2001) Blower/vacuum Assembly Parts Diagram

Rake and Vac Blower Vacuum

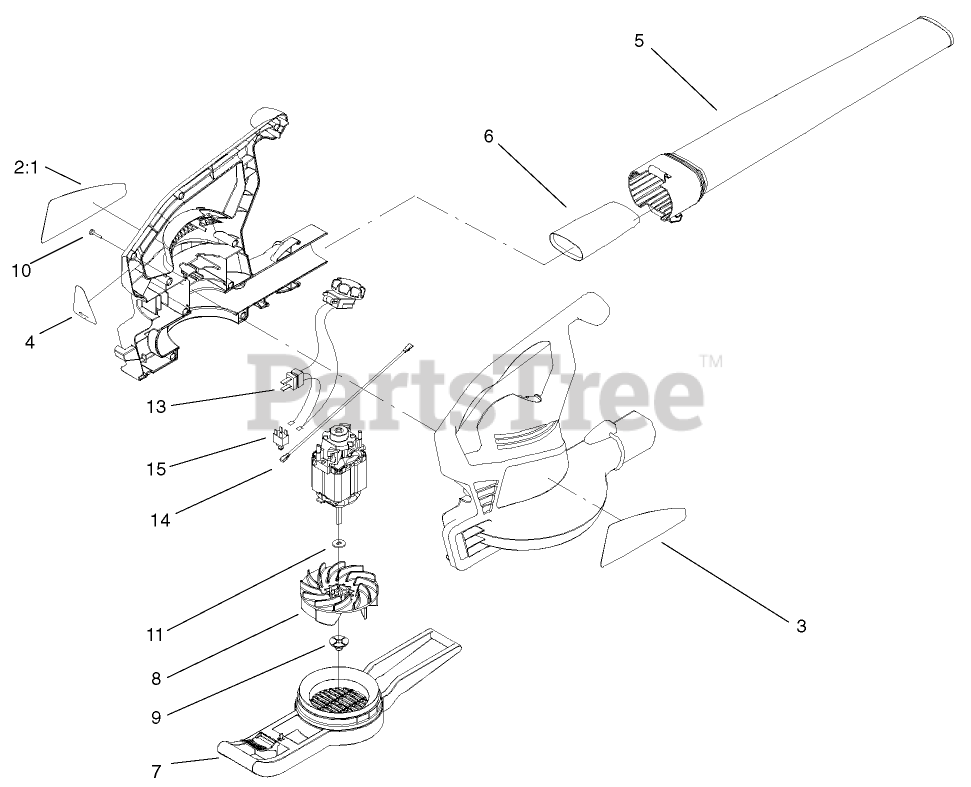

Blower/vacuum Assembly Parts Diagram

  • Title

2

Decal-Serial, Rake Vac

Note: Not serviced

$

$

Not available

2:1

Toro 100-9087

Label Stock-Serial

$

$

Currently unavailable

3

Toro 104-3804

DECAL-RAKE & VAC

$

$

Not available

4

Toro 100-9088

DECAL-LOCK, CORD

$3.49

$

Usually ships in 3-6 days

0

5

Toro 100-9072

DISCONTINUED

$

$

Not available

6

Toro 104-3843

TUBE-INSERT

$

$

Not available

7

Toro 100-9067

DISCONTINUED
(Superseded to 107-9989)

$

$

Not available

8

Toro 100-9068

IMPELLER-BLOWER

$45.99

$

In Stock, only 4 left!

0

9

Toro 100-9075

See Supercession: 114-9015
(Superseded to 114-9015)

$2.99

$

In Stock, Qty 20+

0

10

Toro 94-4496

SCREW-PPH

$1.49

$

In Stock, Qty 20+

0

11

Toro 93-0585

WASHER-FLAT

$1.99

$

In Stock, Qty 5

0

13

Toro 104-3819

See Supercession: 105-9448
(Superseded to 105-9448)

$

$

Not available

14

Toro 100-9085

WIRE-JUMPER

$

$

Not available

15

Toro 100-9083

See Supercession: 107-9967
(Superseded to 107-9967)

$

$

Not available
