51583 - Toro Super Blower Vacuum (SN: 059000001 - 059999999) (1995) Blower Assembly Parts Diagram

Super Blower Vacuum

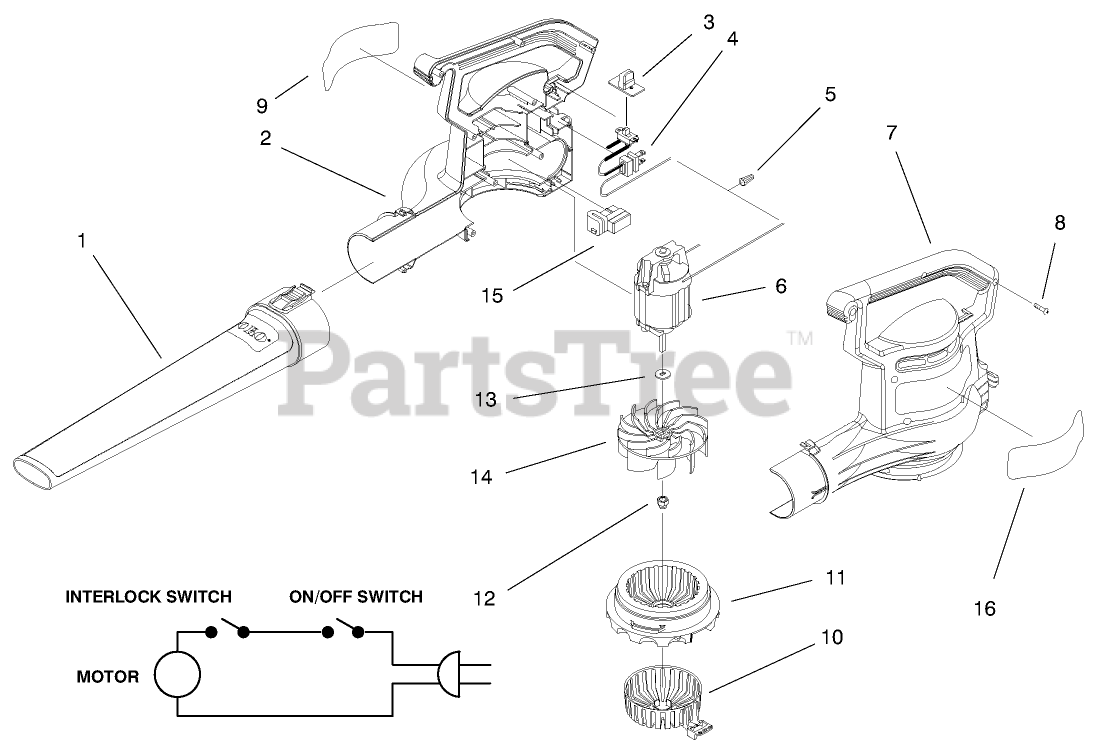

Blower Assembly Parts Diagram

  • Title

1

Toro 93-0571

DISCONTINUED

$

$

Not available

2

Toro 93-0563

HOUSING, RH (BLACK)

$64.99

$

Usually ships in 3-6 days

0

Toro 93-0562

HOUSING, RH (RED)

Note: Not illustrated

$80.99

$

Usually ships in 3-6 days

0

3

Toro 93-0599

DISCONTINUED

$

$

Not available

Toro 93-0565

DISCONTINUED

Note: Not illustrated

$

$

Not available

4

Toro 93-0578

DISCONTINUED

$

$

Not available

5

Toro 73-6570

CONNECTOR-NUT, WIRE

$1.49

$

Usually ships in 3-6 days

0

6

Toro 93-0575

MOTOR, ES-61,SUPER BLOWER

$418.99

$

Usually ships in 3-6 days

0

7

Toro 93-0561

DISCONTINUED

$

$

Not available

Toro 93-0560

HOUSING, LH (RED)

Note: Not illustrated

$80.99

$

Usually ships in 3-6 days

0

8

Toro 94-4496

SCREW-PPH

$1.49

$

In Stock, Qty 20+

0

9

Toro 93-0579

DISCONTINUED

$

$

Not available

Toro 93-0580

DISCONTINUED

Note: Not illustrated

$

$

Not available

10

Toro 93-0559

CHOKE - AIR, RED

$4.99

$

In Stock, only 1 left!

0

11

Toro 93-0569

COVER - INLET, W/HOLE

$12.99

$

Usually ships in 3-6 days

0

Toro 93-0568

COVER - INLET, NO HOLE

Note: Not illustrated

$12.99

$

Usually ships in 3-6 days

0

12

Toro 73-5380

See Supercession: 114-9015
(Superseded to 114-9015)

$2.99

$

In Stock, Qty 20+

0

13

Toro 93-0585

WASHER-FLAT

$1.99

$

In Stock, Qty 5

0

14

Toro 93-0564

IMPELLER, BLOWER

$

$

Not available

15

Toro 93-0567

DISCONTINUED

$

$

Not available

16

Toro 93-7697

Decal-Warning

$

$

Currently unavailable
