51598 (225) - Toro Ultra Blower Vacuum (SN: 210000001 - 210999999) (2001) Blower/Vacuum Assembly Parts Diagram

Ultra Blower Vacuum

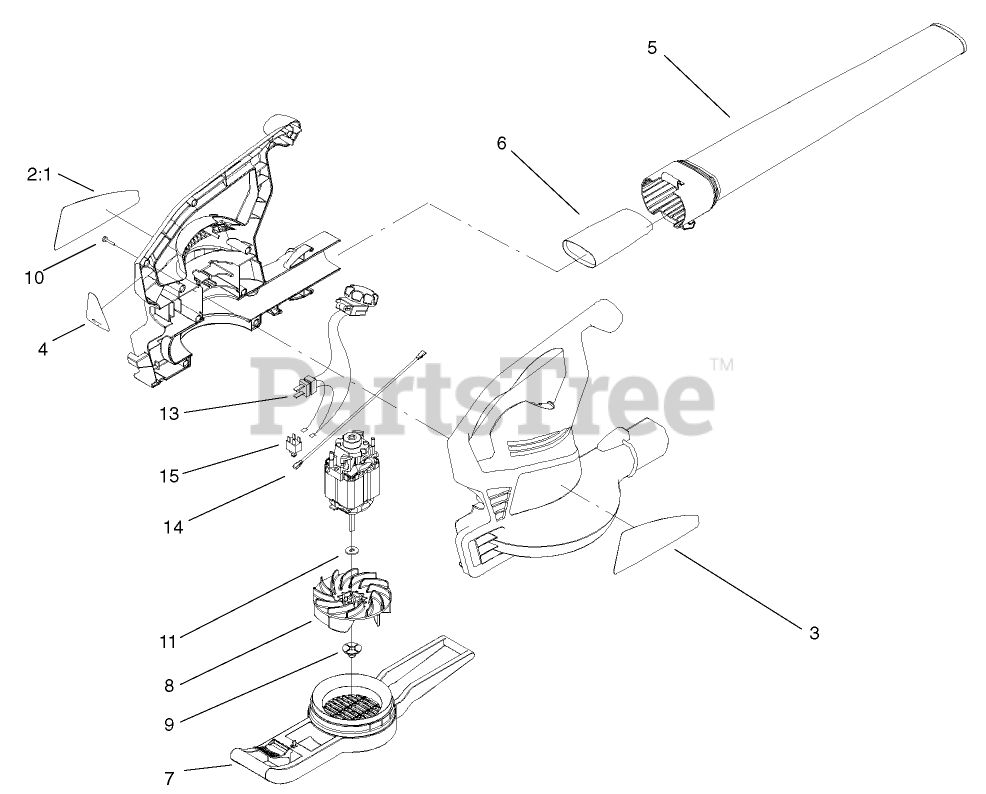

Blower/Vacuum Assembly Parts Diagram

  • Title

2

Loose Parts Package

Note: Not serviced separately

$

$

Not available

2:1

Toro 100-9087

Label Stock-Serial

$

$

Currently unavailable

3

Toro 100-9089

DECAL-ULTRABLOWER

$

$

Not available

4

Toro 100-9088

DECAL-LOCK, CORD

$3.49

$

Usually ships in 3-6 days

0

5

Toro 100-9072

DISCONTINUED

$

$

Not available

6

Toro 100-9069

TUBE-INSERT

$6.99

$

Usually ships in 3-6 days

0

7

Toro 100-9067

DISCONTINUED
(Superseded to 107-9989)

$

$

Not available

8

Toro 100-9076

IMPELLER-MAGNESIUM

$

$

Not available

9

Toro 73-5380

See Supercession: 114-9015
(Superseded to 114-9015)

$2.99

$

In Stock, Qty 20+

0

10

Toro 94-4496

SCREW-PPH

$1.49

$

In Stock, Qty 20+

0

11

Toro 93-0585

WASHER-FLAT

$1.99

$

In Stock, Qty 5

0

13

Toro 104-3820

See Supercession: 105-9449
(Superseded to 105-9449)

$

$

Not available

15

Toro 100-9083

See Supercession: 107-9967
(Superseded to 107-9967)

$

$

Not available
