51645 (TC 5000) - Toro String Trimmer (SN: 005000001 - 005999999) (1985) Fuel Tank Assembly Parts Diagram

String Trimmer

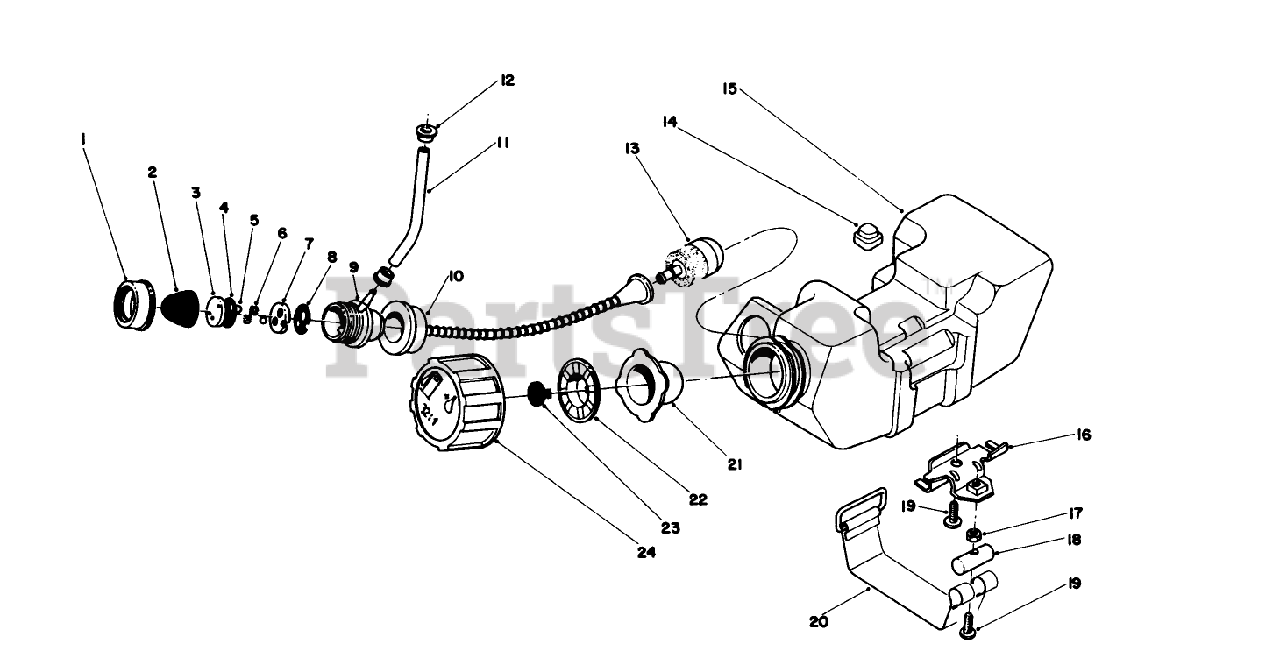

Fuel Tank Assembly Parts Diagram

  • Title

1

Toro 54-5510

DISCONTINUED

$

$

Not available

2

Toro 54-5520

CAP

$

$

Not available

3

Toro 54-5530

DISCONTINUED

$

$

Not available

4

Toro 54-5460

DISCONTINUED

$

$

Not available

5

Toro 54-5480

BALL

$6.99

$

In Stock, only 2 left!

0

6

Toro 54-5470

DISCONTINUED

$

$

Not available

7

Toro 54-5490

DISCONTINUED

$

$

Not available

8

Toro 54-5500

GASKET

$

$

Not available

9

Toro 54-5570

PRIMER PUMP

$

$

Not available

10

Toro 54-7050

HOSE, SUCTION

$59.99

$

Usually ships in 3-6 days

0

11

Toro 54-7040

See Supercession: 54-6060
(Superseded to 54-6060)

$

$

Not available

12

Toro 54-5550

CLIP

$3.49

$

Usually ships in 3-6 days

0

13

Toro 54-6380

See Supercession: 54-5540
(Superseded to 54-5540)

$55.99

$

In Stock, only 1 left!

0

14

Toro 54-6400

PAD

$

$

Not available

15

Toro 54-7070

DISCONTINUED

$

$

Not available

16

Toro 54-7080

DISCONTINUED

$

$

Not available

17

Toro 54-5840

DISCONTINUED

$

$

Not available

18

Toro 54-6430

DISCONTINUED

$

$

Not available

19

Toro 54-4330

DISCONTINUED

$

$

Not available

20

Toro 54-7060

BAND, TANK

$68.99

$

Usually ships in 3-6 days

0

21

Toro 54-5630

GASKET - PACKING

$

$

Not available

22

Toro 54-5620

HOLDER

$

$

Not available

23

Toro 54-5610

BREATHER VALVE

$

$

Not available

24

Toro 54-5590

TANK CAP ASM

$

$

Not available
