51655 (TC 3110) - Toro String Trimmer (SN: 010000001 - 019999999) (1991) Engine Assembly (continued) Parts Diagram

String Trimmer

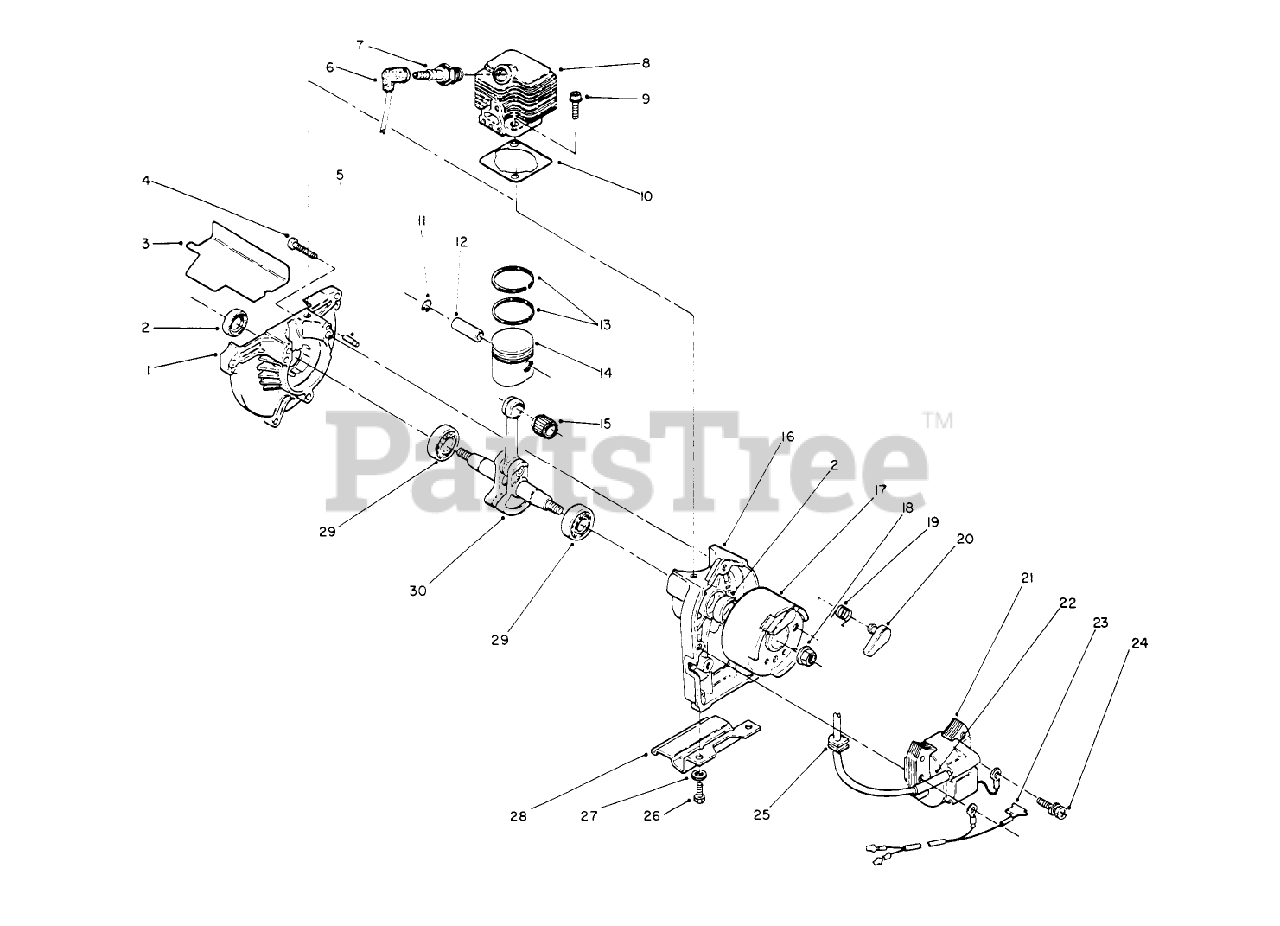

Engine Assembly (continued) Parts Diagram

  • Title

1

Toro 77-1110

DISCONTINUED

$

$

Not available

2

Toro 54-4380

OIL SEAL

$

$

Not available

3

Toro 82-6090

DISCONTINUED

$

$

Not available

4

Toro 54-4330

DISCONTINUED

$

$

Not available

5

Toro 60-7590

DISCONTINUED

$

$

Not available

6

Toro 77-1340

DISCONTINUED

$

$

Not available

7

Toro 77-1350

See Supercession: 45-0320
(Superseded to 45-0320)

$

$

Not available

8

Toro 77-1240

CYLINDER

$559.99

$

Usually ships in 3-6 days

0

9

Toro 60-7720

DISCONTINUED

$

$

Not available

10

Toro 60-7730

DISCONTINUED

$7.49

$

In Stock, Qty 6

0

11

Toro 54-5920

PISTON PIN CLIP

$

$

Not available

12

Toro 54-5910

DISCONTINUED

$

$

Not available

13

Toro 77-1260

TOP RING

$

$

Not available

14

Toro 77-1270

PISTON SET

$

$

Not available

15

Toro 54-5930

DISCONTINUED

$

$

Not available

16

Toro 60-7600

DISCONTINUED

$

$

Not available

17

Toro 77-1360

DISCONTINUED

$

$

Not available

18

Toro 54-4670

NUT

$

$

Not available

19

Toro 77-1370

DISCONTINUED

$

$

Not available

20

Toro 77-1380

RATCHET

$

$

Not available

21

Toro 77-1400

DISCONTINUED

$

$

Not available

22

Toro 77-2180

DISCONTINUED

$

$

Not available

23

Toro 77-2190

DISCONTINUED

$

$

Not available

24

Toro 54-4790

BOLT AND WASHER

$

$

Not available

25

Toro 60-7840

DISCONTINUED

$

$

Not available

26

Toro 46-0053

DISCONTINUED

$

$

Not available

27

Toro 3254-8

WASHER-LOCK

$0.99

$

Usually ships in 3-6 days

0

28

Toro 82-6110

STAND SUPPORT *

$25.99

$

Usually ships in 3-6 days

0

29

Toro 54-4360

BEARING

$

$

Not available

30

Toro 77-1330

DISCONTINUED

$

$

Not available
