51700 - Toro 21cc String Trimmer (SN: 008000001 - 008999999) (1978) Handle And Cutter Head Assembly Parts Diagram

21cc String Trimmer

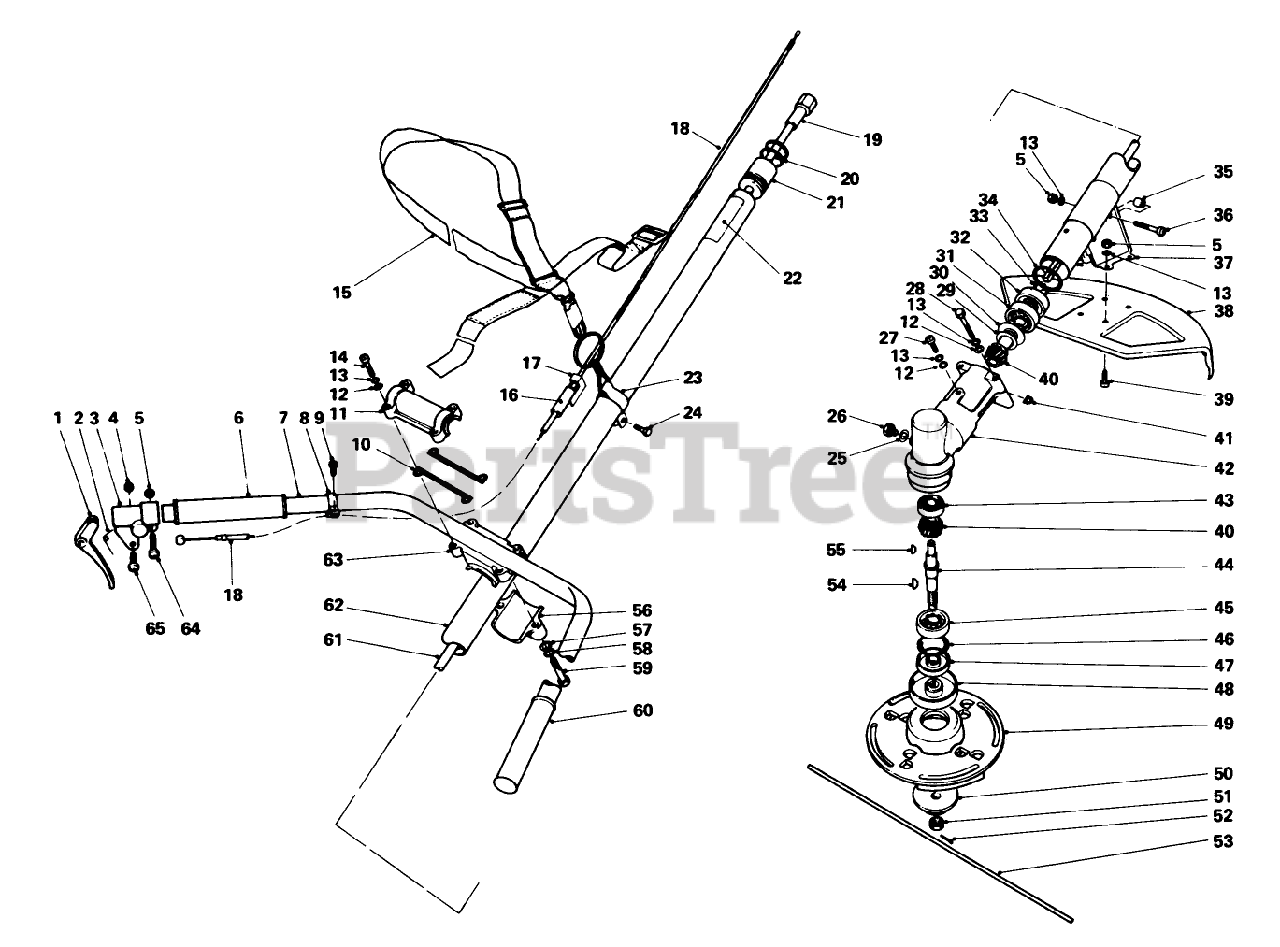

Handle And Cutter Head Assembly Parts Diagram

  • Title

1

Toro 41-7350

DISCONTINUED

$

$

Not available

2

Toro 41-3420

DISCONTINUED

$

$

Not available

3

Toro 41-7380

DISCONTINUED

$

$

Not available

4

Toro 41-4250

DISCONTINUED

$

$

Not available

5

Toro 41-5350

See Supercession: 47-6390
(Superseded to 47-6390)

$

$

Not available

6

Toro 235-25

DISCONTINUED

$

$

Not available

7

Toro 33-7520

DISCONTINUED

$

$

Not available

8

Toro 41-3450

DISCONTINUED

$

$

Not available

9

Toro 41-5080

DISCONTINUED

$

$

Not available

10

Toro 41-4240

DISCONTINUED

$

$

Not available

11

Toro 41-4210

DISCONTINUED

$

$

Not available

12

Toro 41-5440

DISCONTINUED

$

$

Not available

13

Toro 41-5490

DISCONTINUED
(Superseded to 71-1150)

$

$

Not available

14

Toro 41-4810

DISCONTINUED

$

$

Not available

15

Toro 33-7530

DISCONTINUED

$

$

Not available

16

Toro 41-3370

DISCONTINUED

$

$

Not available

17

Toro 41-3480

DISCONTINUED

$

$

Not available

18

Toro 41-3300

DISCONTINUED

$

$

Not available

19

Toro 41-4290

DISCONTINUED

$

$

Not available

20

Toro 41-5590

DISCONTINUED

$

$

Not available

21

Toro 41-4300

DISCONTINUED

$

$

Not available

22

Toro 41-7550

DISCONTINUED

$

$

Not available

23

Toro 41-4030

DISCONTINUED

$

$

Not available

24

Toro 41-4790

DISCONTINUED

$

$

Not available

25

Toro 41-7530

DISCONTINUED

$

$

Not available

26

Toro 41-4870

DISCONTINUED

$

$

Not available

27

Toro 41-5190

DISCONTINUED

$

$

Not available

28

Toro 41-4820

DISCONTINUED

$

$

Not available

29

Toro 41-4470

DISCONTINUED

$

$

Not available

30

Toro 41-4460

DISCONTINUED

$

$

Not available

31

Toro 41-5600

DISCONTINUED

$

$

Not available

32

Toro 41-5620

DISCONTINUED

$

$

Not available

33

Toro 41-5550

DISCONTINUED

$

$

Not available

34

Toro 41-5560

DISCONTINUED

$

$

Not available

35

Toro 41-4670

DISCONTINUED

$

$

Not available

36

Toro 41-5100

DISCONTINUED

$

$

Not available

37

Toro 41-4660

DISCONTINUED

$

$

Not available

38

Toro 41-4650

DISCONTINUED

$

$

Not available

39

Toro 41-5070

DISCONTINUED

$

$

Not available

40

Toro 41-4390

DISCONTINUED

$

$

Not available

41

Toro 41-4370

DISCONTINUED

$

$

Not available

42

Toro 41-4530

DISCONTINUED

$

$

Not available

43

Toro 41-5610

DISCONTINUED

$

$

Not available

44

Toro 41-4410

DISCONTINUED

$

$

Not available

45

Toro 41-5660

DISCONTINUED

$

$

Not available

46

Toro 41-5580

DISCONTINUED

$

$

Not available

47

Toro 41-4540

DISCONTINUED

$

$

Not available

48

Toro 41-4420

DISCONTINUED

$

$

Not available

49

Toro 33-6400

See Supercession: 46-2810
(Superseded to 46-2810)

$

$

Not available

50

Toro 41-4430

WASHER

$

$

Not available

51

Toro 41-5410

NUT

$9.99

$

Usually ships in 3-6 days

0

52

Toro 40-3180

Cotter Pin

$

$

Currently unavailable

53

Toro 40-3180

Cotter Pin

$

$

Currently unavailable

Toro 40-3190

Filament Line, Pkg. of 100

$

$

Currently unavailable

54

Toro 41-4490

DISCONTINUED

$

$

Not available

55

Toro 41-0210

DISCONTINUED

$

$

Not available

56

Toro 41-4230

DISCONTINUED

$

$

Not available

57

Toro 41-5450

See Supercession: 3256-60
(Superseded to 3256-60)

$1.99

$

Usually ships in 3-6 days

0

58

Toro 41-5500

DISCONTINUED

$

$

Not available

59

Toro 41-4860

DISCONTINUED

$

$

Not available

60

Toro 235-24

DISCONTINUED

$

$

Not available

61

Toro 41-4280

DISCONTINUED

$

$

Not available

62

Toro 41-7490

DISCONTINUED

$

$

Not available

63

Toro 41-4220

DISCONTINUED

$

$

Not available

64

Toro 41-5240

DISCONTINUED

$

$

Not available

65

Toro 41-3460

DISCONTINUED

$

$

Not available

Toro 41-4200

DISCONTINUED

Note: Not illustrated

$

$

Not available

Toro 41-4640

DISCONTINUED

Note: Not illustrated

$

$

Not available

Toro 41-7520

DISCONTINUED

Note: Not illustrated

$

$

Not available

Toro 40-3170

See Supercession: 51-1250
(Superseded to 51-1250)

Note: Not illustrated

$130.99

$

Usually ships in 3-6 days

0

Toro 40-3160

DISCONTINUED

Note: Not illustrated

$

$

Not available

Toro 41-6890

See Supercession: 41-4440
(Superseded to 41-4440)

Note: Not illustrated

$106.99

$

Usually ships in 3-6 days

0
