52144 A (RE 8E) - Lawn-Boy 30" Rear-Engine Riding Mower (SN: L00000001 - L99999999) (1992) Cutter Housing Parts List Models 52144a 52145a Parts Diagram

30" Rear-Engine Riding Mower

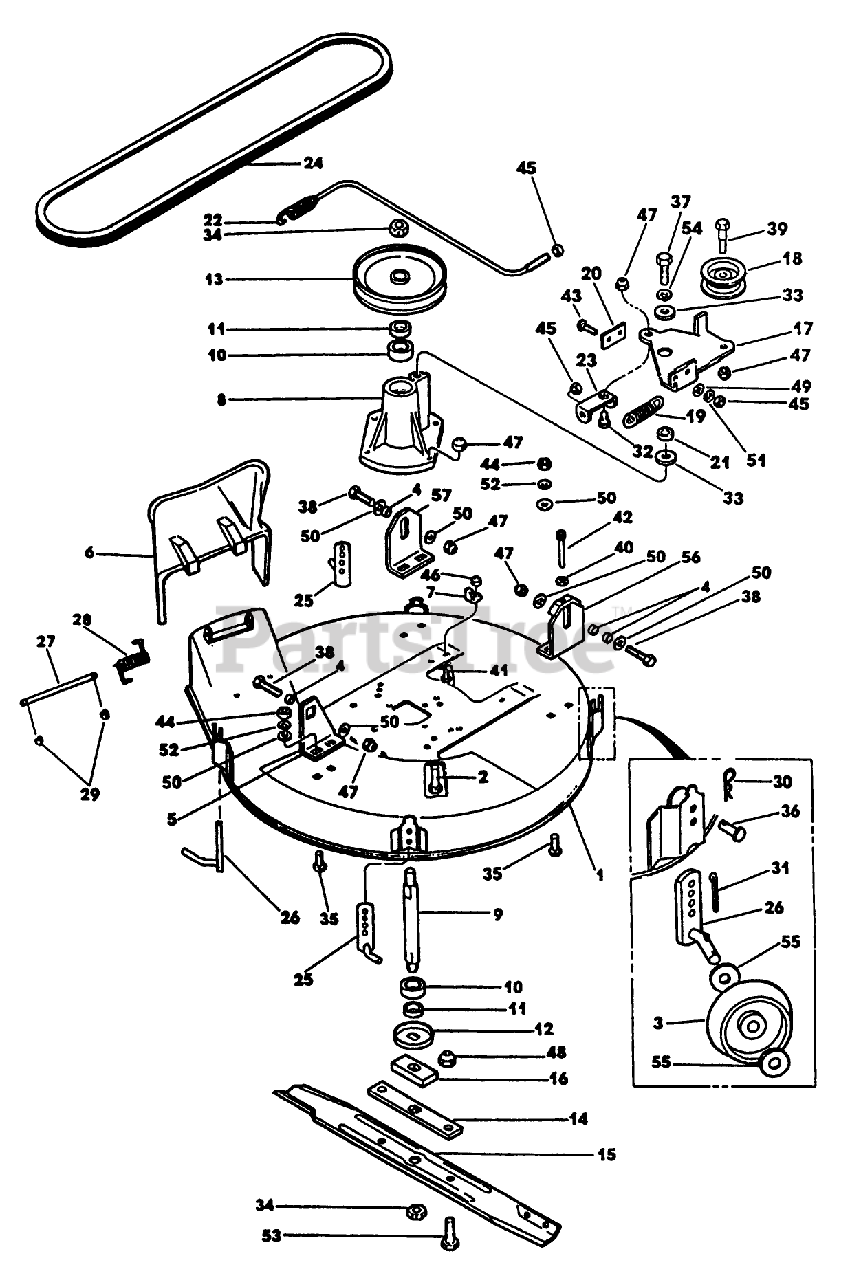

Cutter Housing Parts List Models 52144a 52145a Parts Diagram

  • Title

1

Lawn-Boy 741058

See Supercession: 741057
(Superseded to 741057)

Note: NOTE: Replacement parts may not always be available in matching colors. All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

2

Lawn-Boy 700768

See Supercession: 323-5
(Superseded to 323-5)

Note: NOTE: Replacement parts may not always be available in matching colors. All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately.

$1.49

$

In Stock, Qty 5

0

3

Lawn-Boy 701756

WHEEL-GAGE

Note: NOTE: Replacement parts may not always be available in matching colors. All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately.

$8.99

$

In Stock, Qty 10

0

4

Lawn-Boy 701720

BUSHING

Note: NOTE: Replacement parts may not always be available in matching colors. All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

5

Lawn-Boy 701754

DISCONTINUED

Note: NOTE: Replacement parts may not always be available in matching colors. All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

6

Lawn-Boy 700888

EXTENSION -CHUTE

Note: NOTE: Replacement parts may not always be available in matching colors. All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

7

Lawn-Boy 701735

BRKT-CLUTCH SPG *FORD BLUE

Note: NOTE: Replacement parts may not always be available in matching colors. All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

8

Lawn-Boy 701722

HOUSING,MOWER SPINDLE

Note: NOTE: Replacement parts may not always be available in matching colors. All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately.

$682.99

$

Usually ships in 3-6 days

0

9

Lawn-Boy 701739

SHAFT-SPINDLE

Note: NOTE: Replacement parts may not always be available in matching colors. All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

10

Lawn-Boy 740485

See Supercession: 70-9240
(Superseded to 70-9240)

Note: NOTE: Replacement parts may not always be available in matching colors. All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

11

Lawn-Boy 701737

SPACER

Note: NOTE: Replacement parts may not always be available in matching colors. All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately.

$104.99

$

Usually ships in 3-6 days

0

12

Lawn-Boy 701734

DISCONTINUED

Note: NOTE: Replacement parts may not always be available in matching colors. All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

13

Lawn-Boy 740487

DISCONTINUED

Note: NOTE: Replacement parts may not always be available in matching colors. All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

14

Lawn-Boy 701738

DISCONTINUED

Note: NOTE: Replacement parts may not always be available in matching colors. All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

15

Lawn-Boy 701721

DISCONTINUED

Note: NOTE: Replacement parts may not always be available in matching colors. All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

16

Lawn-Boy 701751

DISCONTINUED

Note: NOTE: Replacement parts may not always be available in matching colors. All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

17

Lawn-Boy 701723

DISCONTINUED

Note: NOTE: Replacement parts may not always be available in matching colors. All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

18

Lawn-Boy 740486

DISCONTINUED

Note: NOTE: Replacement parts may not always be available in matching colors. All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

19

Lawn-Boy 701742

SPRING

Note: NOTE: Replacement parts may not always be available in matching colors. All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately.

$23.99

$

Usually ships in 3-6 days

0

20

Lawn-Boy 701743

DISCONTINUED

Note: NOTE: Replacement parts may not always be available in matching colors. All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

21

Lawn-Boy 701741

DISCONTINUED

Note: NOTE: Replacement parts may not always be available in matching colors. All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

22

Lawn-Boy 740427

DISCONTINUED

Note: NOTE: Replacement parts may not always be available in matching colors. All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

23

Lawn-Boy 744552

DISCONTINUED

Note: NOTE: Replacement parts may not always be available in matching colors. All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

24

Lawn-Boy 701748

V-BELT

Note: NOTE: Replacement parts may not always be available in matching colors. All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately.

$53.99

$

Usually ships in 3-6 days

0

25

Lawn-Boy 740488

DISCONTINUED

Note: NOTE: Replacement parts may not always be available in matching colors. All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

26

Lawn-Boy 740490

LH GAGE WHL WA*B

Note: NOTE: Replacement parts may not always be available in matching colors. All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

27

Lawn-Boy 701198

SHAFT - CHUTE

Note: NOTE: Replacement parts may not always be available in matching colors. All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

28

Lawn-Boy 701199

See Supercession: 710273
(Superseded to 710273)

Note: NOTE: Replacement parts may not always be available in matching colors. All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

29

Lawn-Boy 701197

E-RING

Note: NOTE: Replacement parts may not always be available in matching colors. All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately.

$3.99

$

Usually ships in 3-6 days

0

30

Lawn-Boy 701570

PIN-HAIR

Note: NOTE: Replacement parts may not always be available in matching colors. All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

31

Lawn-Boy 146374

See Supercession: 3272-10
(Superseded to 3272-10)

Note: NOTE: Replacement parts may not always be available in matching colors. All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately.

$1.49

$

In Stock, only 4 left!

0

32

Lawn-Boy 700964

DISCONTINUED

Note: NOTE: Replacement parts may not always be available in matching colors. All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

33

Lawn-Boy 701745

WASHER

Note: NOTE: Replacement parts may not always be available in matching colors. All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

34

Lawn-Boy 701740

LOCKNUT-SPECIAL

Note: NOTE: Replacement parts may not always be available in matching colors. All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

35

Lawn-Boy 700685

DISCONTINUED

Note: NOTE: Replacement parts may not always be available in matching colors. All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

36

Lawn-Boy 701730

PIN - CLEVIS

Note: NOTE: Replacement parts may not always be available in matching colors. All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

37

Lawn-Boy 701812

DISCONTINUED

Note: NOTE: Replacement parts may not always be available in matching colors. All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

38

Lawn-Boy 146207

DISCONTINUED

Note: NOTE: Replacement parts may not always be available in matching colors. All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

39

Lawn-Boy 700838

See Supercession: 323-11
(Superseded to 323-11)

Note: NOTE: Replacement parts may not always be available in matching colors. All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately.

$2.49

$

In Stock, Qty 20+

0

40

Lawn-Boy 700828

DISCONTINUED

Note: NOTE: Replacement parts may not always be available in matching colors. All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

41

Lawn-Boy 700822

SCREW-HH

Note: NOTE: Replacement parts may not always be available in matching colors. All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately.

$1.99

$

In Stock, Qty 5

0

42

Lawn-Boy 701733

DISCONTINUED

Note: NOTE: Replacement parts may not always be available in matching colors. All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

43

Lawn-Boy 701732

DISCONTINUED

Note: NOTE: Replacement parts may not always be available in matching colors. All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

44

Lawn-Boy 146211

NUT

Note: NOTE: Replacement parts may not always be available in matching colors. All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately.

$3.49

$

Usually ships in 3-6 days

0

45

Lawn-Boy 146254

NUT

Note: NOTE: Replacement parts may not always be available in matching colors. All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

46

Lawn-Boy 146375

NUT-LOCK, CONE

Note: NOTE: Replacement parts may not always be available in matching colors. All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately.

$2.49

$

Usually ships in 3-6 days

0

47

Lawn-Boy 700032

NUT-LOCKING

Note: NOTE: Replacement parts may not always be available in matching colors. All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

48

Lawn-Boy 700687

NUT-HEX CONE LOK

Note: NOTE: Replacement parts may not always be available in matching colors. All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

49

Lawn-Boy 700324

DISCONTINUED

Note: NOTE: Replacement parts may not always be available in matching colors. All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

50

Lawn-Boy 146304

WASHER

Note: NOTE: Replacement parts may not always be available in matching colors. All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

51

Lawn-Boy 146252

See Supercession: 3253-3
(Superseded to 3253-3)

Note: NOTE: Replacement parts may not always be available in matching colors. All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately.

$0.99

$

In Stock, Qty 20+

0

52

Lawn-Boy 146260

WASHER

Note: NOTE: Replacement parts may not always be available in matching colors. All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

53

Lawn-Boy 701731

SCREW

Note: NOTE: Replacement parts may not always be available in matching colors. All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

54

Lawn-Boy 701068

DISCONTINUED

Note: NOTE: Replacement parts may not always be available in matching colors. All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

55

Lawn-Boy 701744

DISCONTINUED

Note: NOTE: Replacement parts may not always be available in matching colors. All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

56

Lawn-Boy 740492

DISCONTINUED

Note: NOTE: Replacement parts may not always be available in matching colors. All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

57

Lawn-Boy 701749

BRKT REAR HNGE *F

Note: NOTE: Replacement parts may not always be available in matching colors. All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately.

$169.99

$

Usually ships in 3-6 days

0
