52145 A (RE 12E) - Lawn-Boy 30" Rear-Engine Riding Mower (SN: L00000001 - L99999999) (1992) Body Parts List Model 52163a Parts Diagram

30" Rear-Engine Riding Mower

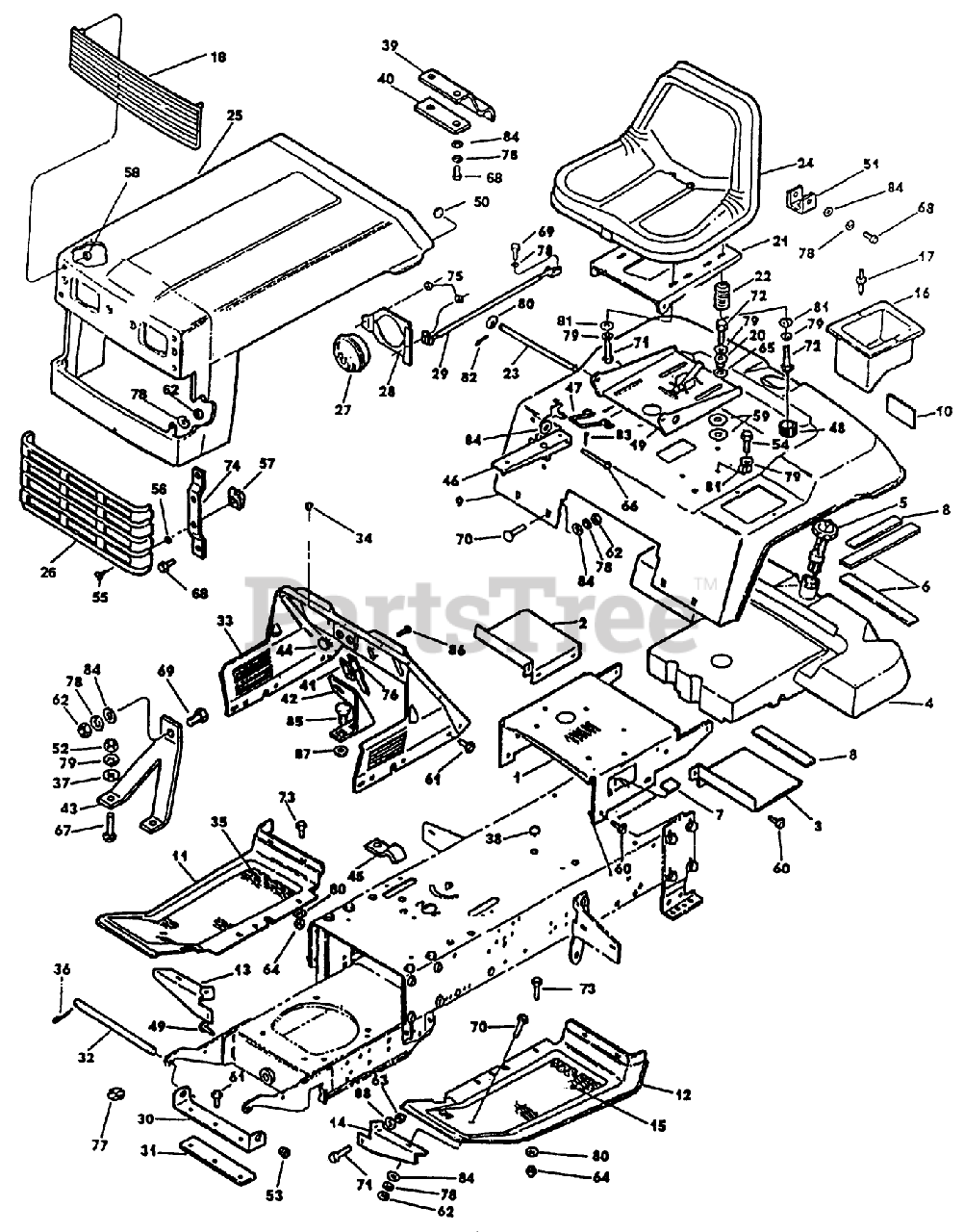

Body Parts List Model 52163a Parts Diagram

  • Title

1

Lawn-Boy 740361

DISCONTINUED

Note: Note: All assemblies that list decals have only operational, instructional or safety decals.Other kinds of decals must be ordered separately.

$

$

Not available

2

Lawn-Boy 701484

DISCONTINUED

Note: Note: All assemblies that list decals have only operational, instructional or safety decals.Other kinds of decals must be ordered separately.

$

$

Not available

3

Lawn-Boy 701485

DISCONTINUED

Note: Note: All assemblies that list decals have only operational, instructional or safety decals.Other kinds of decals must be ordered separately.

$

$

Not available

4

Lawn-Boy 701498

TANK - FUEL

Note: Note: All assemblies that list decals have only operational, instructional or safety decals.Other kinds of decals must be ordered separately.

$777.99

$

Usually ships in 3-6 days

0

5

Lawn-Boy 740378

GUAGE ASSEMBLY-FUE

Note: Note: All assemblies that list decals have only operational, instructional or safety decals.Other kinds of decals must be ordered separately.

$230.99

$

Usually ships in 3-6 days

0

6

Lawn-Boy 700500

DISCONTINUED

Note: Note: All assemblies that list decals have only operational, instructional or safety decals.Other kinds of decals must be ordered separately.

$

$

Not available

7

Lawn-Boy 701481

DISCONTINUED

Note: Note: All assemblies that list decals have only operational, instructional or safety decals.Other kinds of decals must be ordered separately.

$

$

Not available

8

Lawn-Boy 701499

PAD - FUEL TANK

Note: Note: All assemblies that list decals have only operational, instructional or safety decals.Other kinds of decals must be ordered separately.

$

$

Not available

9

Lawn-Boy 744377

DISCONTINUED

Note: Note: All assemblies that list decals have only operational, instructional or safety decals.Other kinds of decals must be ordered separately.

$

$

Not available

10

Lawn-Boy 740324

REFLECTOR

Note: Note: All assemblies that list decals have only operational, instructional or safety decals.Other kinds of decals must be ordered separately.

$

$

Not available

11

Lawn-Boy 709891

See Supercession: 709095
(Superseded to 709095)

Note: Note: All assemblies that list decals have only operational, instructional or safety decals.Other kinds of decals must be ordered separately.

$

$

Not available

12

Lawn-Boy 702392

DISCONTINUED
(Superseded to 701486)

Note: Note: All assemblies that list decals have only operational, instructional or safety decals.Other kinds of decals must be ordered separately.

$

$

Not available

13

Lawn-Boy 700948

DISCONTINUED

Note: Note: All assemblies that list decals have only operational, instructional or safety decals.Other kinds of decals must be ordered separately.

$

$

Not available

14

Lawn-Boy 700949

DISCONTINUED

Note: Note: All assemblies that list decals have only operational, instructional or safety decals.Other kinds of decals must be ordered separately.

$

$

Not available

15

Lawn-Boy 710080

DISCONTINUED

Note: Note: All assemblies that list decals have only operational, instructional or safety decals.Other kinds of decals must be ordered separately.

$

$

Not available

16

Lawn-Boy 701496

DISCONTINUED

Note: Note: All assemblies that list decals have only operational, instructional or safety decals.Other kinds of decals must be ordered separately.

$

$

Not available

17

Lawn-Boy 701494

Rivet

Note: Note: All assemblies that list decals have only operational, instructional or safety decals.Other kinds of decals must be ordered separately.

$

$

Currently unavailable

18

Lawn-Boy 701346

DISCONTINUED

Note: Note: All assemblies that list decals have only operational, instructional or safety decals.Other kinds of decals must be ordered separately.

$

$

Not available

19

Lawn-Boy 740257

SEAT SUPPORT AY

Note: Note: All assemblies that list decals have only operational, instructional or safety decals.Other kinds of decals must be ordered separately.

$

$

Not available

20

Lawn-Boy 700758

DISCONTINUED

Note: Note: All assemblies that list decals have only operational, instructional or safety decals.Other kinds of decals must be ordered separately.

$

$

Not available

21

Lawn-Boy 740276

PIVOT AY - SEAT *B

Note: Note: All assemblies that list decals have only operational, instructional or safety decals.Other kinds of decals must be ordered separately.

$217.99

$

Usually ships in 3-6 days

0

22

Lawn-Boy 701179

See Supercession: 88-6220
(Superseded to 88-6220)

Note: Note: All assemblies that list decals have only operational, instructional or safety decals.Other kinds of decals must be ordered separately.

$38.99

$

Usually ships in 3-6 days

0

23

Lawn-Boy 700756

PIN

Note: Note: All assemblies that list decals have only operational, instructional or safety decals.Other kinds of decals must be ordered separately.

$

$

Not available

24

Lawn-Boy 740399

SEAT

Note: Note: All assemblies that list decals have only operational, instructional or safety decals.Other kinds of decals must be ordered separately.

$702.99

$

Usually ships in 3-6 days

0

25

Lawn-Boy 741842

HOOD&GRILLE (UPS) *G

Note: Note: All assemblies that list decals have only operational, instructional or safety decals.Other kinds of decals must be ordered separately.

$

$

Not available

26

Lawn-Boy 701349

INSERT - GRILLE

Note: Note: All assemblies that list decals have only operational, instructional or safety decals.Other kinds of decals must be ordered separately.

$252.99

$

Usually ships in 3-6 days

0

27

Lawn-Boy 740186

See Supercession: 102881
(Superseded to 102881)

Note: Note: All assemblies that list decals have only operational, instructional or safety decals.Other kinds of decals must be ordered separately.

$

$

Not available

28

Lawn-Boy 701307

DISCONTINUED

Note: Note: All assemblies that list decals have only operational, instructional or safety decals.Other kinds of decals must be ordered separately.

$

$

Not available

29

Lawn-Boy 740386

DISCONTINUED

Note: Note: All assemblies that list decals have only operational, instructional or safety decals.Other kinds of decals must be ordered separately.

$

$

Not available

30

Lawn-Boy 701310

DISCONTINUED

Note: Note: All assemblies that list decals have only operational, instructional or safety decals.Other kinds of decals must be ordered separately.

$

$

Not available

31

Lawn-Boy 701311

DISCONTINUED

Note: Note: All assemblies that list decals have only operational, instructional or safety decals.Other kinds of decals must be ordered separately.

$

$

Not available

32

Lawn-Boy 702148

ROD - HOOD PIVOT

Note: Note: All assemblies that list decals have only operational, instructional or safety decals.Other kinds of decals must be ordered separately.

$

$

Not available

33

Lawn-Boy 744826

DISCONTINUED

Note: Note: All assemblies that list decals have only operational, instructional or safety decals.Other kinds of decals must be ordered separately.

$

$

Not available

34

Lawn-Boy 700746

DISCONTINUED

Note: Note: All assemblies that list decals have only operational, instructional or safety decals.Other kinds of decals must be ordered separately.

$

$

Not available

35

Lawn-Boy 710081

DISCONTINUED

Note: Note: All assemblies that list decals have only operational, instructional or safety decals.Other kinds of decals must be ordered separately.

$

$

Not available

36

Lawn-Boy 146374

See Supercession: 3272-10
(Superseded to 3272-10)

Note: Note: All assemblies that list decals have only operational, instructional or safety decals.Other kinds of decals must be ordered separately.

$1.49

$

In Stock, only 4 left!

0

37

Lawn-Boy 146368

See Supercession: 3256-23
(Superseded to 3256-23)

Note: Note: All assemblies that list decals have only operational, instructional or safety decals.Other kinds of decals must be ordered separately.

$2.49

$

In Stock, Qty 20+

0

38

Lawn-Boy 700819

DISCONTINUED

Note: Note: All assemblies that list decals have only operational, instructional or safety decals.Other kinds of decals must be ordered separately.

$

$

Not available

39

Lawn-Boy 700763

DISCONTINUED

Note: Note: All assemblies that list decals have only operational, instructional or safety decals.Other kinds of decals must be ordered separately.

$

$

Not available

40

Lawn-Boy 700762

DISCONTINUED

Note: Note: All assemblies that list decals have only operational, instructional or safety decals.Other kinds of decals must be ordered separately.

$

$

Not available

41

Lawn-Boy 700795

DISCONTINUED

Note: Note: All assemblies that list decals have only operational, instructional or safety decals.Other kinds of decals must be ordered separately.

$

$

Not available

42

Lawn-Boy 700982

DISCONTINUED

Note: Note: All assemblies that list decals have only operational, instructional or safety decals.Other kinds of decals must be ordered separately.

$

$

Not available

43

Lawn-Boy 701554

BRACKET-SUPPORT

Note: Note: All assemblies that list decals have only operational, instructional or safety decals.Other kinds of decals must be ordered separately.

$144.99

$

Usually ships in 3-6 days

0

44

Lawn-Boy 700757

DISCONTINUED

Note: Note: All assemblies that list decals have only operational, instructional or safety decals.Other kinds of decals must be ordered separately.

$

$

Not available

45

Lawn-Boy 701516

DISCONTINUED

Note: Note: All assemblies that list decals have only operational, instructional or safety decals.Other kinds of decals must be ordered separately.

$

$

Not available

46

Lawn-Boy 701539

LATCH - SEAT PAN *B

Note: Note: All assemblies that list decals have only operational, instructional or safety decals.Other kinds of decals must be ordered separately.

$46.99

$

Usually ships in 3-6 days

0

47

Lawn-Boy 701537

DISCONTINUED

Note: Note: All assemblies that list decals have only operational, instructional or safety decals.Other kinds of decals must be ordered separately.

$

$

Not available

48

Lawn-Boy 701178

CAP-PROTECTOR

Note: Note: All assemblies that list decals have only operational, instructional or safety decals.Other kinds of decals must be ordered separately.

$2.99

$

In Stock, Qty 15

0

49

Lawn-Boy 700093

DISCONTINUED

Note: Note: All assemblies that list decals have only operational, instructional or safety decals.Other kinds of decals must be ordered separately.

$

$

Not available

50

Lawn-Boy 700785

DISCONTINUED

Note: Note: All assemblies that list decals have only operational, instructional or safety decals.Other kinds of decals must be ordered separately.

$

$

Not available

51

Lawn-Boy 701180

DISCONTINUED

Note: Note: All assemblies that list decals have only operational, instructional or safety decals.Other kinds of decals must be ordered separately.

$

$

Not available

52

Lawn-Boy 146259

NUT SS

Note: Note: All assemblies that list decals have only operational, instructional or safety decals.Other kinds of decals must be ordered separately.

$

$

Not available

53

Lawn-Boy 700776

BEARING-NYLINER

Note: Note: All assemblies that list decals have only operational, instructional or safety decals.Other kinds of decals must be ordered separately.

$

$

Not available

54

Lawn-Boy 146299

DISCONTINUED

Note: Note: All assemblies that list decals have only operational, instructional or safety decals.Other kinds of decals must be ordered separately.

$

$

Not available

55

Lawn-Boy 701340

FASTENER-1/4 TURN

Note: Note: All assemblies that list decals have only operational, instructional or safety decals.Other kinds of decals must be ordered separately.

$

$

Not available

56

Lawn-Boy 700787

DISCONTINUED

Note: Note: All assemblies that list decals have only operational, instructional or safety decals.Other kinds of decals must be ordered separately.

$

$

Not available

57

Lawn-Boy 700789

DISCONTINUED

Note: Note: All assemblies that list decals have only operational, instructional or safety decals.Other kinds of decals must be ordered separately.

$

$

Not available

58

Lawn-Boy 700751

DISCONTINUED

Note: Note: All assemblies that list decals have only operational, instructional or safety decals.Other kinds of decals must be ordered separately.

$

$

Not available

59

Lawn-Boy 700745

WASHER-PLASTIC

Note: Note: All assemblies that list decals have only operational, instructional or safety decals.Other kinds of decals must be ordered separately.

$

$

Not available

60

Lawn-Boy 700990

DISCONTINUED

Note: Note: All assemblies that list decals have only operational, instructional or safety decals.Other kinds of decals must be ordered separately.

$

$

Not available

61

Lawn-Boy 700989

See Supercession: 9266964
(Superseded to 9266964)

Note: Note: All assemblies that list decals have only operational, instructional or safety decals.Other kinds of decals must be ordered separately.

$

$

Not available

62

Lawn-Boy 146254

NUT

Note: Note: All assemblies that list decals have only operational, instructional or safety decals.Other kinds of decals must be ordered separately.

$

$

Not available

63

Lawn-Boy 146501

NUT

Note: Note: All assemblies that list decals have only operational, instructional or safety decals.Other kinds of decals must be ordered separately.

$1.99

$

In Stock, only 1 left!

0

64

Lawn-Boy 700032

NUT-LOCKING

Note: Note: All assemblies that list decals have only operational, instructional or safety decals.Other kinds of decals must be ordered separately.

$

$

Not available

65

Lawn-Boy 700750

DISCONTINUED

Note: Note: All assemblies that list decals have only operational, instructional or safety decals.Other kinds of decals must be ordered separately.

$

$

Not available

66

Lawn-Boy 701538

PIN

Note: Note: All assemblies that list decals have only operational, instructional or safety decals.Other kinds of decals must be ordered separately.

$9.99

$

Usually ships in 3-6 days

0

67

Lawn-Boy 700030

BOLT - CARRIAGE

Note: Note: All assemblies that list decals have only operational, instructional or safety decals.Other kinds of decals must be ordered separately.

$1.99

$

Usually ships in 3-6 days

0

68

Lawn-Boy 700822

SCREW-HH

Note: Note: All assemblies that list decals have only operational, instructional or safety decals.Other kinds of decals must be ordered separately.

$1.99

$

In Stock, Qty 5

0

69

Lawn-Boy 700138

SCREW

Note: Note: All assemblies that list decals have only operational, instructional or safety decals.Other kinds of decals must be ordered separately.

$

$

Not available

70

Lawn-Boy 700327

DISCONTINUED

Note: Note: All assemblies that list decals have only operational, instructional or safety decals.Other kinds of decals must be ordered separately.

$

$

Not available

71

Lawn-Boy 146209

SCREW - HEX

Note: Note: All assemblies that list decals have only operational, instructional or safety decals.Other kinds of decals must be ordered separately.

$1.99

$

Usually ships in 3-6 days

0

72

Lawn-Boy 700342

SCREW

Note: Note: All assemblies that list decals have only operational, instructional or safety decals.Other kinds of decals must be ordered separately.

$

$

Not available

73

Lawn-Boy 146208

See Supercession: 323-4
(Superseded to 323-4)

Note: Note: All assemblies that list decals have only operational, instructional or safety decals.Other kinds of decals must be ordered separately.

$4.49

$

In Stock, Qty 20+

0

74

Lawn-Boy 701342

DISCONTINUED

Note: Note: All assemblies that list decals have only operational, instructional or safety decals.Other kinds of decals must be ordered separately.

$

$

Not available

75

Lawn-Boy 147158

DISCONTINUED

Note: Note: All assemblies that list decals have only operational, instructional or safety decals.Other kinds of decals must be ordered separately.

$

$

Not available

76

Lawn-Boy 701332

DISCONTINUED

Note: Note: All assemblies that list decals have only operational, instructional or safety decals.Other kinds of decals must be ordered separately.

$

$

Not available

77

Lawn-Boy 702366

CLIP-RETAINER, WIRE

Note: Note: All assemblies that list decals have only operational, instructional or safety decals.Other kinds of decals must be ordered separately.

$

$

Not available

78

Lawn-Boy 146252

See Supercession: 3253-3
(Superseded to 3253-3)

Note: Note: All assemblies that list decals have only operational, instructional or safety decals.Other kinds of decals must be ordered separately.

$0.99

$

In Stock, Qty 20+

0

79

Lawn-Boy 146258

See Supercession: 3253-4
(Superseded to 3253-4)

Note: Note: All assemblies that list decals have only operational, instructional or safety decals.Other kinds of decals must be ordered separately.

$0.99

$

In Stock, Qty 20+

0

80

Lawn-Boy 146304

WASHER

Note: Note: All assemblies that list decals have only operational, instructional or safety decals.Other kinds of decals must be ordered separately.

$

$

Not available

81

Lawn-Boy 146205

DISCONTINUED

Note: Note: All assemblies that list decals have only operational, instructional or safety decals.Other kinds of decals must be ordered separately.

$

$

Not available

82

Lawn-Boy 146379

See Supercession: 3272-6
(Superseded to 3272-6)

Note: Note: All assemblies that list decals have only operational, instructional or safety decals.Other kinds of decals must be ordered separately.

$0.99

$

In Stock, Qty 20+

0

83

Lawn-Boy 700833

See Supercession: 3272-1
(Superseded to 3272-1)

Note: Note: All assemblies that list decals have only operational, instructional or safety decals.Other kinds of decals must be ordered separately.

$0.99

$

In Stock, Qty 10

0

84

Lawn-Boy 700324

DISCONTINUED

Note: Note: All assemblies that list decals have only operational, instructional or safety decals.Other kinds of decals must be ordered separately.

$

$

Not available

85

Lawn-Boy 146511

DISCONTINUED

Note: Note: All assemblies that list decals have only operational, instructional or safety decals.Other kinds of decals must be ordered separately.

$

$

Not available

86

Lawn-Boy 700804

DISCONTINUED

Note: Note: All assemblies that list decals have only operational, instructional or safety decals.Other kinds of decals must be ordered separately.

$

$

Not available

87

Lawn-Boy 709996

DISCONTINUED

Note: Note: All assemblies that list decals have only operational, instructional or safety decals.Other kinds of decals must be ordered separately.

$

$

Not available

88

Lawn-Boy 146260

WASHER

Note: Note: All assemblies that list decals have only operational, instructional or safety decals.Other kinds of decals must be ordered separately.

$

$

Not available
