52149 (LT 12 H) - Lawn-Boy Lawn Tractor (SN: J00000001 - J99999999) (1990) Steering, Wheel And Axle Parts List Parts Diagram

Lawn Tractor

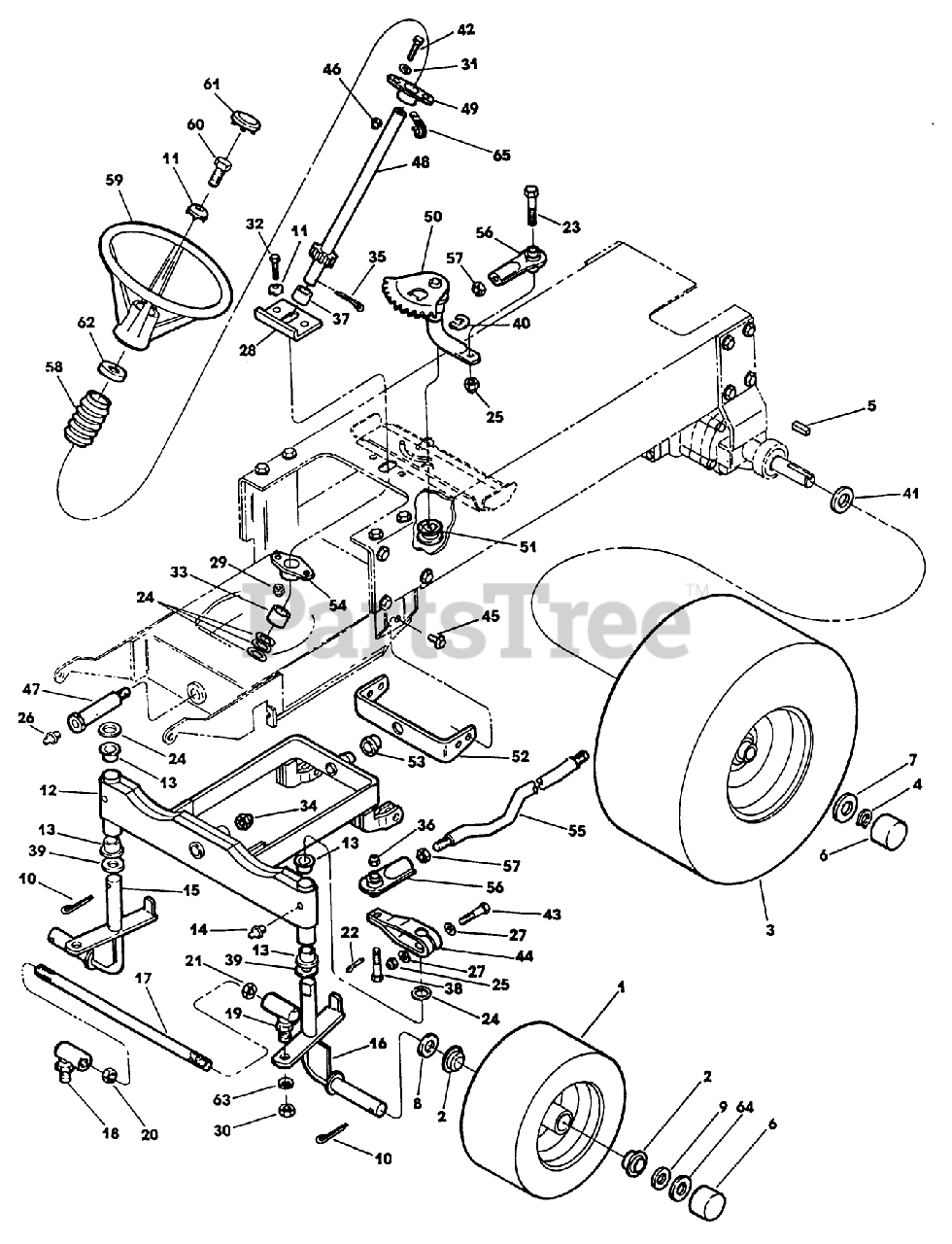

Steering, Wheel And Axle Parts List Parts Diagram

  • Title

1

Lawn-Boy 740306

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

Lawn-Boy 700458

See Supercession: 5108
(Superseded to 5108)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$8.49

$

In Stock, only 2 left!

0

Lawn-Boy 700458

See Supercession: 5108
(Superseded to 5108)

Note: Parts shown with bullet included with assembly above.

$8.49

$

In Stock, only 2 left!

0

Lawn-Boy 700458

See Supercession: 5108
(Superseded to 5108)

Note: Parts not shown.

$8.49

$

In Stock, only 2 left!

0

Lawn-Boy 700996

TIRE-15X6.00-6

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$276.99

$

Usually ships in 3-6 days

0

Lawn-Boy 700996

TIRE-15X6.00-6

Note: Parts not shown.

$276.99

$

Usually ships in 3-6 days

0

Lawn-Boy 700996

TIRE-15X6.00-6

Note: Parts shown with bullet included with assembly above.

$276.99

$

Usually ships in 3-6 days

0

Lawn-Boy 740308

WHEEL ASM

Note: Parts shown with bullet included with assembly above.

$

$

Not available

Lawn-Boy 740308

WHEEL ASM

Note: Parts not shown.

$

$

Not available

Lawn-Boy 740308

WHEEL ASM

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

Lawn-Boy 700998

See Supercession: 302-5
(Superseded to 302-5)

Note: Parts not shown.

$3.99

$

In Stock, Qty 20+

0

Lawn-Boy 700998

See Supercession: 302-5
(Superseded to 302-5)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$3.99

$

In Stock, Qty 20+

0

2

Lawn-Boy 700997

See Supercession: 110513
(Superseded to 110513)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$25.99

$

In Stock, Qty 20+

0

3

Lawn-Boy 740307

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

Lawn-Boy 701306

WHEEL

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

Lawn-Boy 701306

WHEEL

Note: Parts not shown.

$

$

Not available

Lawn-Boy 700995

DISCONTINUED

Note: Parts not shown.

$

$

Not available

Lawn-Boy 700995

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

Lawn-Boy 700995

DISCONTINUED

Note: Parts shown with bullet included with assembly above.

$

$

Not available

4

Lawn-Boy 703842

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

5

Lawn-Boy 703843

KEY-SQUARE 1/4X1/4

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

6

Lawn-Boy 700781

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

7

Lawn-Boy 700783

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

8

Lawn-Boy 700812

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

9

Lawn-Boy 700815

WASHER

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$6.99

$

Usually ships in 3-6 days

0

10

Lawn-Boy 701294

See Supercession: 3272-17
(Superseded to 3272-17)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$2.99

$

In Stock, only 3 left!

0

11

Lawn-Boy 701297

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

12

Lawn-Boy 740783

AXLE AY-FRONT

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

13

Lawn-Boy 701148

BEARING - BRONZE

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

13

Lawn-Boy 701148

BEARING - BRONZE

Note: Parts shown with bullet included with assembly above.

$

$

Not available

14

Lawn-Boy 700041

See Supercession: 302-5
(Superseded to 302-5)

Note: Parts shown with bullet included with assembly above.

$3.99

$

In Stock, Qty 20+

0

14

Lawn-Boy 700041

See Supercession: 302-5
(Superseded to 302-5)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$3.99

$

In Stock, Qty 20+

0

15

Lawn-Boy 740785

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

16

Lawn-Boy 740784

SPINDLE ASM - LH

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

17

Lawn-Boy 701351

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

18

Lawn-Boy 701352

BALL JOINT, RH

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

18

Lawn-Boy 701352

BALL JOINT, RH

Note: R.H. Threaded ball joint and nut are "silver" zinc plated. L.H. Threaded parts are "gold". Note color when ordering parts.

$

$

Not available

19

Lawn-Boy 701353

BALL JOINT-LH

Note: R.H. Threaded ball joint and nut are "silver" zinc plated. L.H. Threaded parts are "gold". Note color when ordering parts.

$

$

Not available

19

Lawn-Boy 701353

BALL JOINT-LH

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

20

Lawn-Boy 701354

DISCONTINUED

Note: R.H. Threaded ball joint and nut are "silver" zinc plated. L.H. Threaded parts are "gold". Note color when ordering parts.

$

$

Not available

20

Lawn-Boy 701354

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

21

Lawn-Boy 701355

NUT HEX JAMB LH

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

21

Lawn-Boy 701355

NUT HEX JAMB LH

Note: R.H. Threaded ball joint and nut are "silver" zinc plated. L.H. Threaded parts are "gold". Note color when ordering parts.

$

$

Not available

22

Lawn-Boy 146379

See Supercession: 3272-6
(Superseded to 3272-6)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$0.99

$

In Stock, Qty 20+

0

23

Lawn-Boy 146504

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

24

Lawn-Boy 700809

SPACER

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$4.99

$

In Stock, only 2 left!

0

25

Lawn-Boy 700032

NUT-LOCKING

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

26

Lawn-Boy 700041

See Supercession: 302-5
(Superseded to 302-5)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$3.99

$

In Stock, Qty 20+

0

27

Lawn-Boy 700050

WASHER

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

28

Lawn-Boy 700060

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

29

Lawn-Boy 146501

NUT

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$1.99

$

In Stock, only 1 left!

0

30

Lawn-Boy 700827

HEX NUT

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

31

Lawn-Boy 700324

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

32

Lawn-Boy 700342

SCREW

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

33

Lawn-Boy 700586

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

34

Lawn-Boy 700680

NUT-HEX

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

35

Lawn-Boy 700682

See Supercession: 3272-12
(Superseded to 3272-12)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$0.99

$

In Stock, only 4 left!

0

36

Lawn-Boy 700747

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

37

Lawn-Boy 700770

SPACER

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

38

Lawn-Boy 700784

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

39

Lawn-Boy 702982

WASHER - THRUST

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$10.99

$

In Stock, only 1 left!

0

40

Lawn-Boy 700817

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

41

Lawn-Boy 703844

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

42

Lawn-Boy 700822

SCREW-HH

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$1.99

$

In Stock, Qty 5

0

43

Lawn-Boy 700838

See Supercession: 323-11
(Superseded to 323-11)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$2.49

$

In Stock, Qty 20+

0

44

Lawn-Boy 709905

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

45

Lawn-Boy 700989

See Supercession: 9266964
(Superseded to 9266964)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

46

Lawn-Boy 146375

NUT-LOCK, CONE

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$2.49

$

Usually ships in 3-6 days

0

47

Lawn-Boy 701296

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

48

Lawn-Boy 740109

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

49

Lawn-Boy 740166

BEARING AY.

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

50

Lawn-Boy 740178

See Supercession: 740178-03
(Superseded to 740178-03)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

51

Lawn-Boy 700818

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

52

Lawn-Boy 740185

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

53

Lawn-Boy 700978

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$6.36

$

Usually ships in 3-6 days

0

53

Lawn-Boy 700978

DISCONTINUED

Note: Parts shown with bullet included with assembly above.

$6.36

$

Usually ships in 3-6 days

0

54

Lawn-Boy 740208

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

55

Lawn-Boy 701145

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

56

Lawn-Boy 703908

BALL JOINT

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

57

Lawn-Boy 700149

NUT-HEX

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

58

Lawn-Boy 701276

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

59

Lawn-Boy 741315

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

60

Lawn-Boy 146209

SCREW - HEX

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$1.99

$

Usually ships in 3-6 days

0

61

Lawn-Boy 701281

CAP

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$29.99

$

Usually ships in 3-6 days

0

62

Lawn-Boy 701282

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

63

Lawn-Boy 701141

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

64

Lawn-Boy 700167

See Supercession: 3-6498
(Superseded to 3-6498)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$7.99

$

In Stock, Qty 20+

0

65

Lawn-Boy 702156

CLAMP - J EX

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$15.99

$

Usually ships in 3-6 days

0
