53002 (53005) - Toro Straight Shaft Trimmer (SN: 089000001 - 089050000) (1998) Head, Shaft And Shield Assembly Parts Diagram

Straight Shaft Trimmer

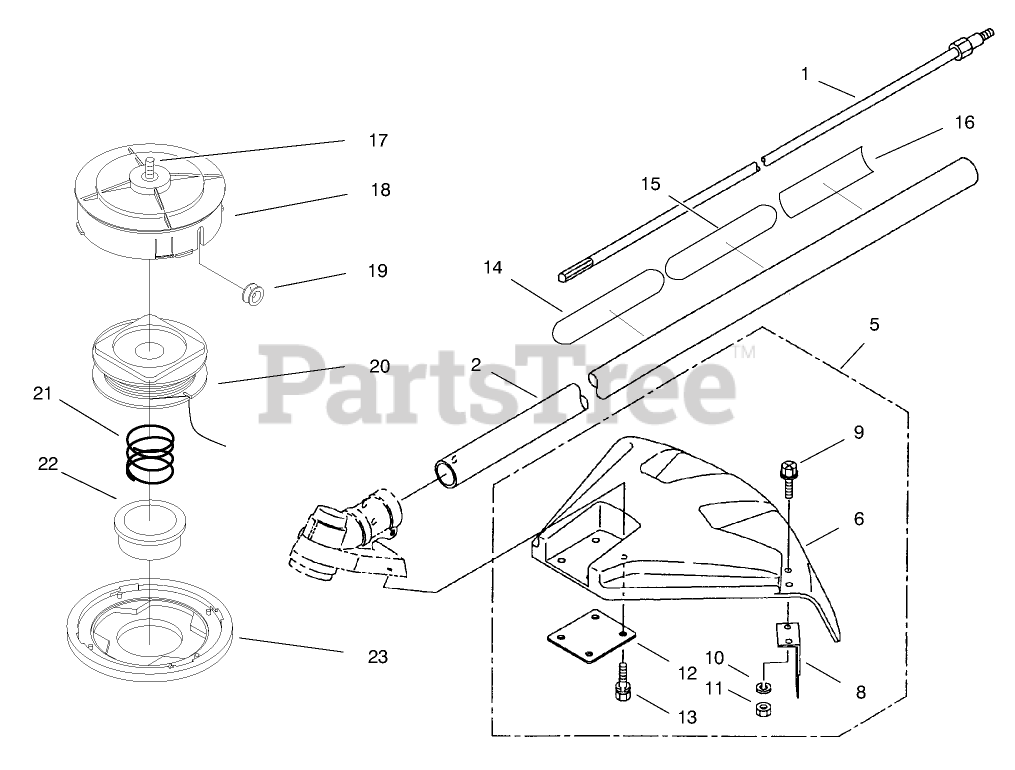

Head, Shaft And Shield Assembly Parts Diagram

  • Title

1

Toro M219268

ASM - DRIVESHAFT

$155.99

$

Usually ships in 3-6 days

0

2

Toro M221753

ASSEMBLY-DRIVESHAFT TUBE

$

$

Not available

5

Toro M221436

DISCONTINUED

$

$

Not available

6

Toro M221403

COVER - SAFETY

$99.99

$

Usually ships in 3-6 days

0

8

Toro M221438

CUTTER - STRING

$

$

Not available

9

Toro M092560

DISCONTINUED

$

$

Not available

10

Toro M012501

DISCONTINUED

$

$

Not available

11

Toro M081027

NUT M5

$

$

Not available

12

Toro M221469

DISCONTINUED

$

$

Not available

13

Toro M092579

BOLT

$

$

Not available

14

Toro M221502

DECAL - CAUTION

$

$

Not available

15

Toro M221501

DECAL - CAUTION

$

$

Not available

16

Toro M221500

DECAL - TORO

$

$

Not available

17

Toro 95-7468

DISCONTINUED

$

$

Not available

18

Toro 95-7460

HOUSING

$

$

Not available

19

Toro 95-7450

EYELET

$3.49

$

In Stock, only 3 left!

0

20

Toro 95-7464

SPOOL W/LINE

$

$

Not available

Toro 95-7461

SPOOL

Note: Not illustrated

$

$

Not available

21

Toro 95-7467

SPRING

$

$

Not available

22

Toro 95-7462

BUTTON

$14.99

$

In Stock, only 1 left!

0

23

Toro 95-7463

COVER

$

$

Not available

Toro 95-4425

UNIVERSAL 5" HEAD (UN32)

Note: Not illustrated

$155.99

$

Usually ships in 3-6 days

0

Toro M221437

ASM - STRING CUTTER

Note: Not illustrated

$

$

Not available
