53021 - Toro 10" Brush Cutter (SN: 099000001 - 099999999) (1999) Gearcase Assembly Parts Diagram

10" Brush Cutter

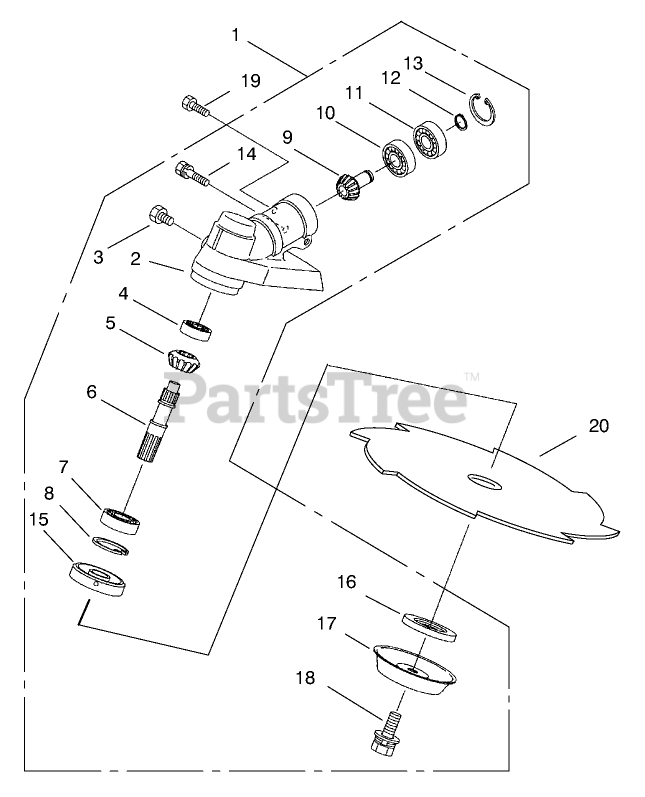

Gearcase Assembly Parts Diagram

  • Title

1

Toro M220577

ASM - GEARCASE

$

$

Not available

2

Toro M219077

DISCONTINUED

$

$

Not available

3

Toro M089884

BOLT

$

$

Not available

4

Toro M210554

BEARING

$

$

Not available

5

Toro M210555

GEAR

$130.99

$

Usually ships in 3-6 days

0

6

Toro M215762

SHAFT - BLADE

$

$

Not available

7

Toro M212999

DISCONTINUED

$

$

Not available

8

Toro M055185

RING - SNAP

$

$

Not available

9

Toro M215544

GEAR - PINION

$112.99

$

Usually ships in 3-6 days

0

10

Toro M210560

BEARING

$

$

Not available

11

Toro M140268

BEARING

$

$

Not available

12

Toro M140269

RING - SNAP

$

$

Not available

13

Toro M140270

DISCONTINUED

$

$

Not available

14

Toro M092561

BOLT

$

$

Not available

15

Toro M212986

ADAPTER - BOSS

$

$

Not available

16

Toro M140275

DISCONTINUED

$

$

Not available

17

Toro M215547

DISCONTINUED

$

$

Not available

18

Toro M215610

DISCONTINUED

$

$

Not available

19

Toro M089737

DISCONTINUED

$

$

Not available

20

Toro M212662

DISCONTINUED

$

$

Not available
