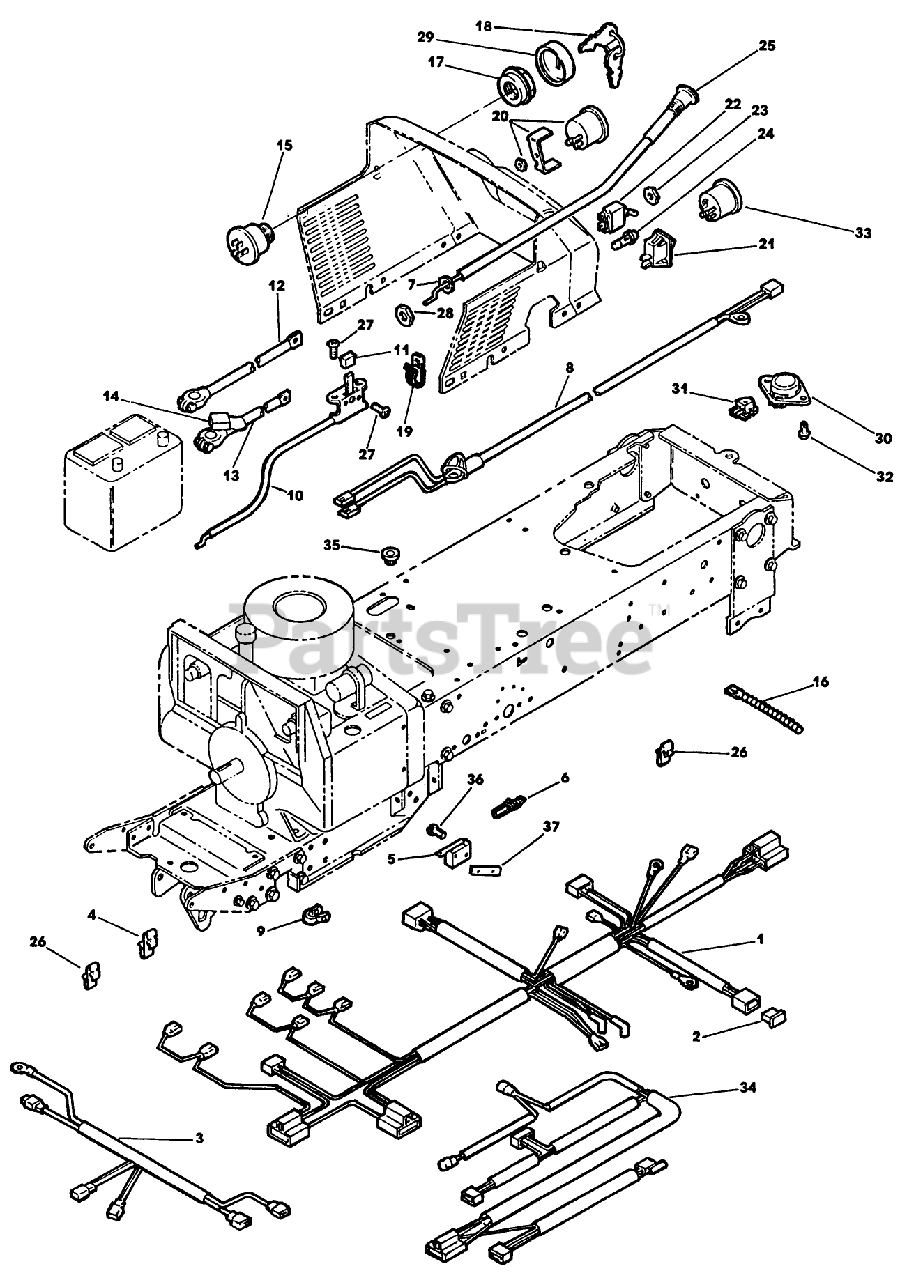

53084 (GT 18 H) - Lawn-Boy Garden Tractor (SN: K00000001 - K99999999) (1991) Electrical Parts List Parts Diagram

Garden Tractor

Electrical Parts List Parts Diagram

  • Title

1

Lawn-Boy 740692

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not be available in matching colors.

$

$

Not available

2

Lawn-Boy 702030

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not be available in matching colors.

$

$

Not available

2

Lawn-Boy 702030

DISCONTINUED

Note: Parts shown with bullet included with assembly above.

$

$

Not available

3

Lawn-Boy 740191

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not be available in matching colors.

$

$

Not available

4

Lawn-Boy 700771

CLIP

Note: IMPORTANT NOTE: Replacement parts may not be available in matching colors.

$

$

Not available

5

Lawn-Boy 740771

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not be available in matching colors.

$

$

Not available

6

Lawn-Boy 702292

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not be available in matching colors.

$

$

Not available

7

Lawn-Boy 146260

WASHER

Note: IMPORTANT NOTE: Replacement parts may not be available in matching colors.

$

$

Not available

8

Lawn-Boy 740705

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not be available in matching colors.

$

$

Not available

9

Lawn-Boy 702266

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not be available in matching colors.

$

$

Not available

10

Lawn-Boy 740694

CONTROL - THROTTLE

Note: IMPORTANT NOTE: Replacement parts may not be available in matching colors.

$151.99

$

Usually ships in 3-6 days

0

11

Lawn-Boy 700966

THROTTLE KNOB

Note: IMPORTANT NOTE: Replacement parts may not be available in matching colors.

$34.99

$

Usually ships in 3-6 days

0

12

Lawn-Boy 740772

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not be available in matching colors.

$

$

Not available

13

Lawn-Boy 740773

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not be available in matching colors.

$

$

Not available

14

Lawn-Boy 701568

DISCONTINUED

Note: Parts shown with bullet included with assembly above.

$

$

Not available

14

Lawn-Boy 701568

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not be available in matching colors.

$

$

Not available

15

Lawn-Boy 741308

See Supercession: 99-8595
(Superseded to 99-8595)

Note: IMPORTANT NOTE: Replacement parts may not be available in matching colors.

$

$

Not available

16

Lawn-Boy 147198

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not be available in matching colors.

$

$

Not available

17

Lawn-Boy 700919

NUT

Note: IMPORTANT NOTE: Replacement parts may not be available in matching colors.

$6.49

$

In Stock, only 2 left!

0

18

Lawn-Boy 700918

KEY

Note: IMPORTANT NOTE: Replacement parts may not be available in matching colors.

$6.99

$

In Stock, Qty 10

0

19

Lawn-Boy 702362

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not be available in matching colors.

$

$

Not available

20

Lawn-Boy 740391

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not be available in matching colors.

$

$

Not available

21

Lawn-Boy 740209

SWITCH ASSEMBLY

Note: IMPORTANT NOTE: Replacement parts may not be available in matching colors.

$

$

Not available

22

Lawn-Boy 740392

SWITCH-PTO W/SAFTY

Note: IMPORTANT NOTE: Replacement parts may not be available in matching colors.

$

$

Not available

23

Lawn-Boy 701506

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not be available in matching colors.

$

$

Not available

24

Lawn-Boy 740374

LIGHT-PTO INDICTOR

Note: IMPORTANT NOTE: Replacement parts may not be available in matching colors.

$

$

Not available

25

Lawn-Boy 740693

CONTROL - CHOKE

Note: IMPORTANT NOTE: Replacement parts may not be available in matching colors.

$

$

Not available

26

Lawn-Boy 702366

CLIP-RETAINER, WIRE

Note: IMPORTANT NOTE: Replacement parts may not be available in matching colors.

$

$

Not available

27

Lawn-Boy 701293

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not be available in matching colors.

$

$

Not available

28

Lawn-Boy 700149

NUT-HEX

Note: IMPORTANT NOTE: Replacement parts may not be available in matching colors.

$

$

Not available

29

Lawn-Boy 700960

BEZEL

Note: IMPORTANT NOTE: Replacement parts may not be available in matching colors.

$

$

Not available

30

Lawn-Boy 740274

SWITCH,SEAT

Note: IMPORTANT NOTE: Replacement parts may not be available in matching colors.

$160.99

$

Usually ships in 3-6 days

0

31

Lawn-Boy 740275

SWITCH

Note: IMPORTANT NOTE: Replacement parts may not be available in matching colors.

$22.99

$

Usually ships in 3-6 days

0

32

Lawn-Boy 701193

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not be available in matching colors.

$

$

Not available

33

Lawn-Boy 740695

See Supercession: 113469
(Superseded to 113469)

Note: IMPORTANT NOTE: Replacement parts may not be available in matching colors.

$536.99

$

Usually ships in 3-6 days

0

34

Lawn-Boy 740706

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not be available in matching colors.

$

$

Not available

35

Lawn-Boy 147172

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not be available in matching colors.

$

$

Not available

36

Lawn-Boy 147665

See Supercession: 95-3003
(Superseded to 95-3003)

Note: IMPORTANT NOTE: Replacement parts may not be available in matching colors.

$3.99

$

Usually ships in 3-6 days

0

37

Lawn-Boy 147664

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not be available in matching colors.

$3.18

$

Usually ships in 3-6 days

0
