545/545G Mark II - Husqvarna Chainsaw FUEL TANK Parts Diagram

Chainsaw

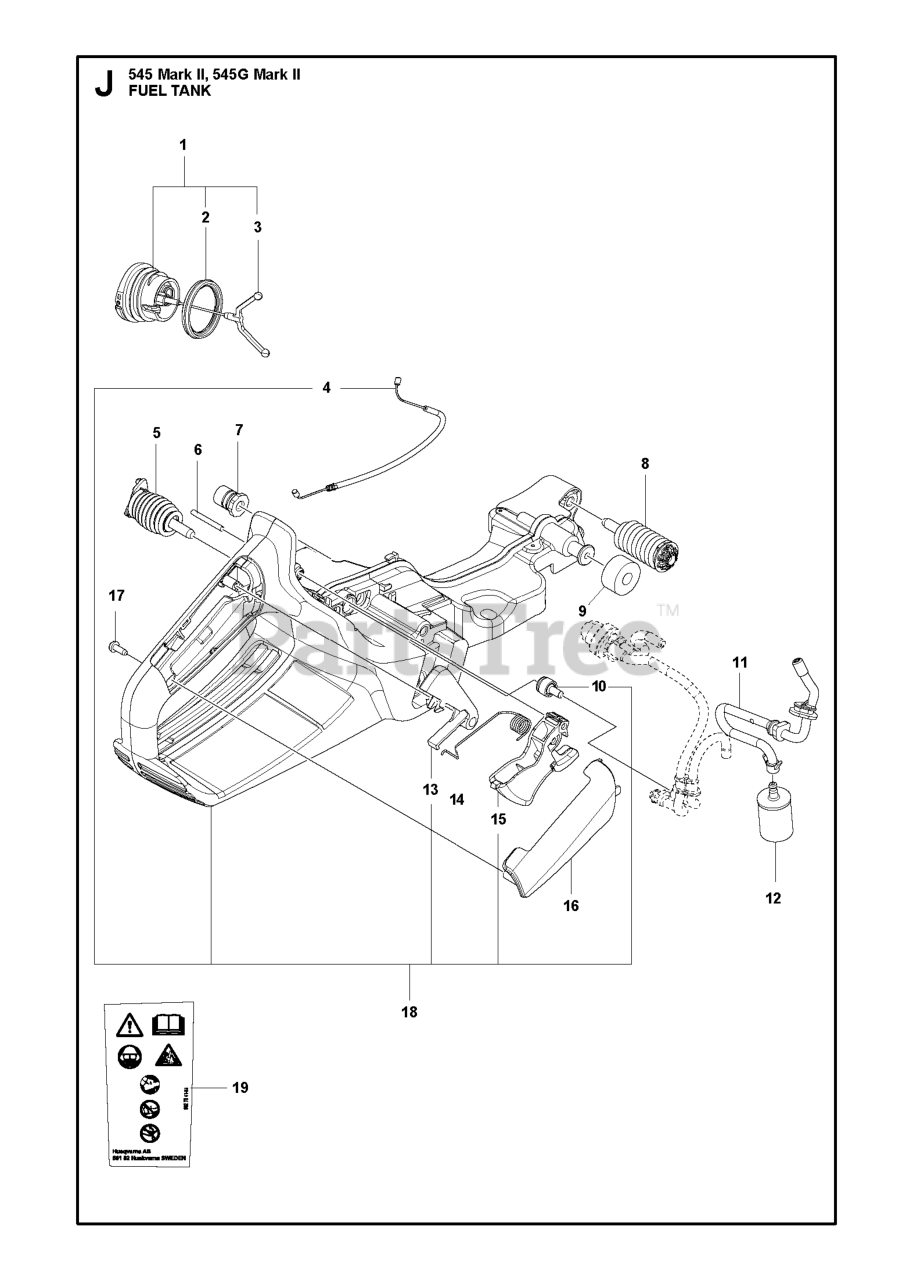

FUEL TANK Parts Diagram

  • Title

8

Husqvarna 590377401

ANTIVIBRATION ELEMENT FRONT

$17.99

$

In Stock, only 2 left!

0

1

Husqvarna 522620003

TANK CAP ASSY
(Superseded to 522620001)

$

$

Not available

3

Husqvarna 503578901

TANK LOCK

$7.49

$

In Stock, Qty 5

0

4

Husqvarna 596550001

THROTTLE CABLE ASSY 545/550 M

$23.99

$

Usually ships in 3-10 days

0

11

Husqvarna 577504101

FUEL HOSE
(Superseded to 529578202)

$23.99

$

In Stock, Qty 6

0

19

Husqvarna 582794105

LABEL

$3.99

$

Usually ships in 3-10 days

0

14

Husqvarna 544099901

SPRING

$7.49

$

In Stock, Qty 8

0

13

Husqvarna 544099801

THROTTLE LOCKOUT

$8.49

$

In Stock, Qty 10

0

10

Husqvarna 501152901

FUEL TANK VENT

$23.99

$

In Stock, Qty 10

0

17

Husqvarna 525887402

SCREW CITXPANT

$4.99

$

In Stock, Qty 20+

0

2

Husqvarna 589241101

SEALING

$7.49

$

In Stock, only 2 left!

0

12

Husqvarna 503443205

NEEDS DESCRIPTION

Note: 18-40 µm (Blue) Mega pack (100 pcs)

$

$

Currently unavailable

18

Husqvarna 596554002

Fuel Tanks

$101.99

$

In Stock, only 2 left!

0

7

Husqvarna 501007601

LATERAL SUPPORT

$3.49

$

In Stock, only 2 left!

0

9

Husqvarna 523085501

DEFLECTION LIMITER

$9.49

$

Usually ships in 3-10 days

0

6

Husqvarna 720182520

PIN

$3.99

$

In Stock, Qty 20+

0

16

Husqvarna 504106301

HANDLE INSERT

$8.49

$

In Stock, Qty 8

0

5

Husqvarna 596882001

ANTIVIBRATION ELEMENT REAR
(Superseded to 596882002)

$14.99

$

In Stock, only 2 left!

0

15

Husqvarna 505157701

THROTTLE

$6.99

$

In Stock, only 2 left!

0

12

503443203

FUEL FILTER

Note: 18-40 µm (Blue)

$

$

Not available
