54610 - Toro 40cm Scarifier Dethatcher (SN: 321000001 - 321999999) (2021) Deck and Grass Bag Assembly Parts Diagram

40cm Scarifier Dethatcher

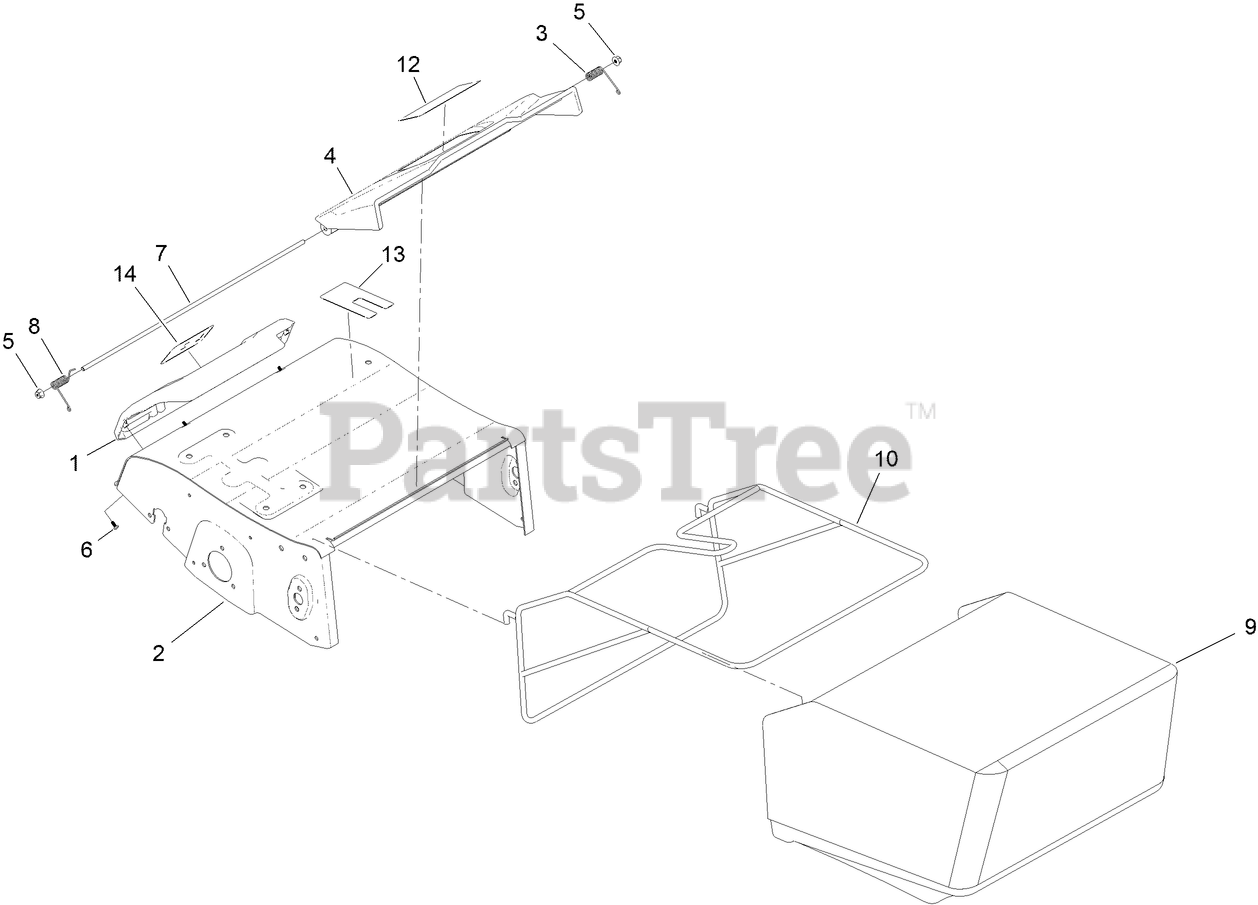

Deck and Grass Bag Assembly Parts Diagram

  • Title

1

Toro 134-5278

FRONT COWLING

$8.99

$

Usually ships in 3-6 days

0

2

Toro 134-7542

DECK HD

$200.99

$

Usually ships in 3-6 days

0

3

Toro 134-5495

SPRING-FLAP, REAR RHS

$0.99

$

Usually ships in 3-6 days

0

4

Toro 134-5524

FLAP-REAR

$15.99

$

Usually ships in 3-6 days

0

5

Toro 134-0118

NUT-LOCK, FLANGE

$

$

Currently unavailable

6

Toro 134-5571

SCREW-PAN HEAD

$0.99

$

Usually ships in 3-6 days

0

7

Toro 134-5585

ROD-FLAP

$4.49

$

Usually ships in 3-6 days

0

8

Toro 134-5608

SPRING-FLAP, REAR LHS

$0.99

$

Usually ships in 3-6 days

0

9

Toro 134-6106

GRASS BAG - FABRIC ASSY

$32.99

$

Usually ships in 3-6 days

0

10

Toro 134-6107

GRASS BAG STEEL FRAME

$37.99

$

Usually ships in 3-6 days

0

12

Toro 134-5696

DECAL - SAFETY

$

$

Not available

13

Toro 134-7583

DECAL - DUAL HOC / SPRING TINE

$2.49

$

Usually ships in 3-6 days

0

14

Toro 134-5702

DECAL - LOGO TORO

$1.99

$

Usually ships in 3-6 days

0
