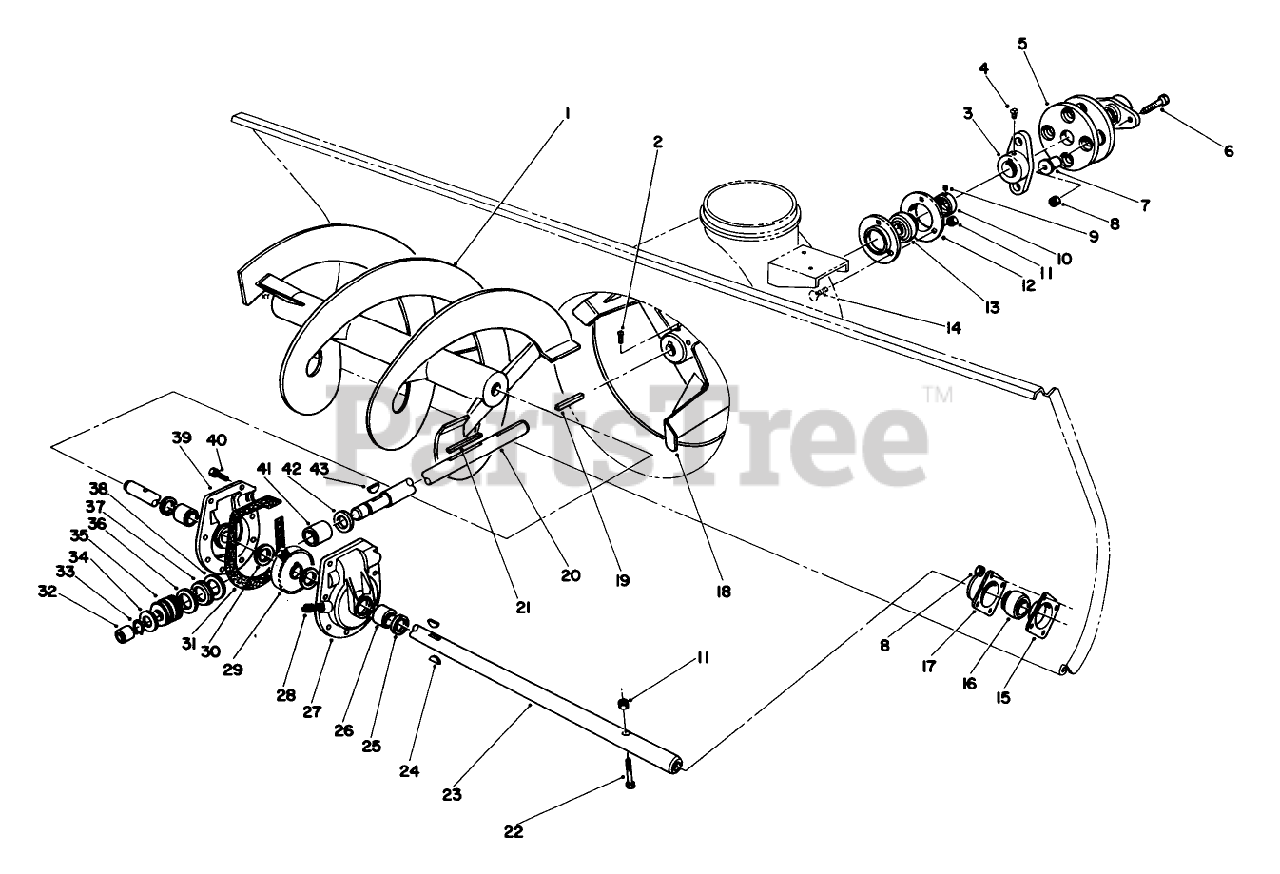

55-8450 - Toro Hour Meter Kit for Groundsmaster 117 44" Snow Thrower Model No. 30761 (optional) (continued) Parts Diagram

Hour Meter Kit for Groundsmaster 117

44" Snow Thrower Model No. 30761 (optional) (continued) Parts Diagram

  • Title

1

Toro 57-3300

See Supercession: 57-3300-03
(Superseded to 57-3300-03)

$979.99

$

Usually ships in 3-6 days

0

Toro 57-3370

See Supercession: 57-3370-03
(Superseded to 57-3370-03)

Note: Not illustrated

$

$

Not available

2

Toro 3242-4

SCREW-SET, SQH

$2.99

$

In Stock, only 2 left!

0

3

Toro 61-4000

See Supercession: 61-4000-01
(Superseded to 61-4000-01)

$

$

Not available

4

Toro 3241-5

SCREW-SET

$2.49

$

In Stock, only 2 left!

0

5

Toro 44-2230

See Supercession: 115-4523
(Superseded to 115-4523)

$61.99

$

In Stock, Qty 13

0

6

Toro 321-9

SCREW-HH

$5.49

$

In Stock, only 3 left!

0

7

Toro 27-6601

SPACER-COUPLING, RUBBER

$29.99

$

Usually ships in 3-6 days

0

8

Toro 3296-16

NUT-LOCK, NI

$1.99

$

In Stock, only 3 left!

0

9

Toro 3245-32

SCREW-HSH

$5.99

$

In Stock, only 2 left!

0

10

Toro 251-231

EXT LOCKING COLLAR

$

$

Not available

11

Toro 3296-29

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

12

Toro 251-229

BRG FLANGE

$51.99

$

Usually ships in 3-6 days

0

13

Toro 251-224

BALL BRG W/COLLAR

$67.99

$

In Stock, only 1 left!

0

14

Toro 3230-1

BOLT-CARR

$1.99

$

In Stock, Qty 20+

0

15

Toro 20-1000

BEARING-FLANGE, REAR

$12.99

$

In Stock, only 2 left!

0

16

Toro 20-0980

BEARING

$26.99

$

In Stock, Qty 10

0

17

Toro 20-0990

BEARING-FLANGE, FRONT

$12.99

$

In Stock, only 2 left!

0

18

Toro 19-8890

See Supercession: 19-8890-03
(Superseded to 19-8890-03)

$775.99

$

Usually ships in 3-6 days

0

19

Toro 21-5070

KEY-SQUARE

$

$

Not available

20

Toro 57-3490

DISCONTINUED

$

$

Not available

21

Toro 6-8590

KEY

$13.99

$

Usually ships in 3-6 days

0

22

Toro 322-14

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

23

Toro 57-3500

SHAFT-AUGER

$666.99

$

Usually ships in 3-6 days

0

24

Toro 3257-33

KEY-WOODRUFF

$2.49

$

In Stock, only 2 left!

0

25

Toro 7-0045

SEAL-OIL

$21.99

$

In Stock, Qty 12

0

26

Toro 256-237

BUSHING

$17.99

$

In Stock, only 2 left!

0

27

Toro 37-8860

See Supercession: 14-2459
(Superseded to 14-2459)

$168.99

$

In Stock, only 2 left!

0

28

Toro 281-1

PLUG-PIPE, SQH

$5.49

$

Usually ships in 3-6 days

0

29

Toro 5-7180

GEAR-WORM, 27T

$201.99

$

In Stock, only 2 left!

0

30

Toro 252-71

WASHER-THRUST

$19.99

$

In Stock, only 3 left!

0

31

Toro 51-0460

GASKET-CASE, GEAR

$10.99

$

In Stock, only 2 left!

0

32

Toro 256-32

BUSHING

$11.99

$

In Stock, only 2 left!

0

33

Toro 32120-72

RING-SNAP

$2.99

$

In Stock, Qty 20+

0

34

Toro 3-8664

WASHER-THRUST

$7.49

$

In Stock, only 2 left!

0

35

Toro 5-7170

GEAR

$144.99

$

Usually ships in 3-6 days

0

36

Toro 252-77

THRUST-WASHER

$11.99

$

Usually ships in 3-6 days

0

37

Toro 252-76

BEARING-THRUST

$25.99

$

In Stock, only 1 left!

0

38

Toro 252-78

WASHER-THRUST

$25.99

$

In Stock, only 2 left!

0

39

Toro 37-8850

See Supercession: 14-2449
(Superseded to 14-2449)

$168.99

$

In Stock, only 2 left!

0

40

Toro 32144-41

SCREW-TAPTITE

$5.99

$

In Stock, Qty 20+

0

41

Toro 20-3210

BUSHING-SPECIAL

$13.99

$

In Stock, only 2 left!

0

42

Toro 237-87

RING-QUAD

$7.99

$

In Stock, only 2 left!

0

43

Toro 3257-23

KEY-WOODRUFF

$7.99

$

In Stock, only 2 left!

0

Toro 57-3480

DISCONTINUED

Note: Not illustrated

$

$

Not available
