55-8450 - Toro Hour Meter Kit for Groundsmaster 117 Carburetor-Kohler Engine Model No. Kt17qs Type No. 24324 (continued) Parts Diagram

Hour Meter Kit for Groundsmaster 117

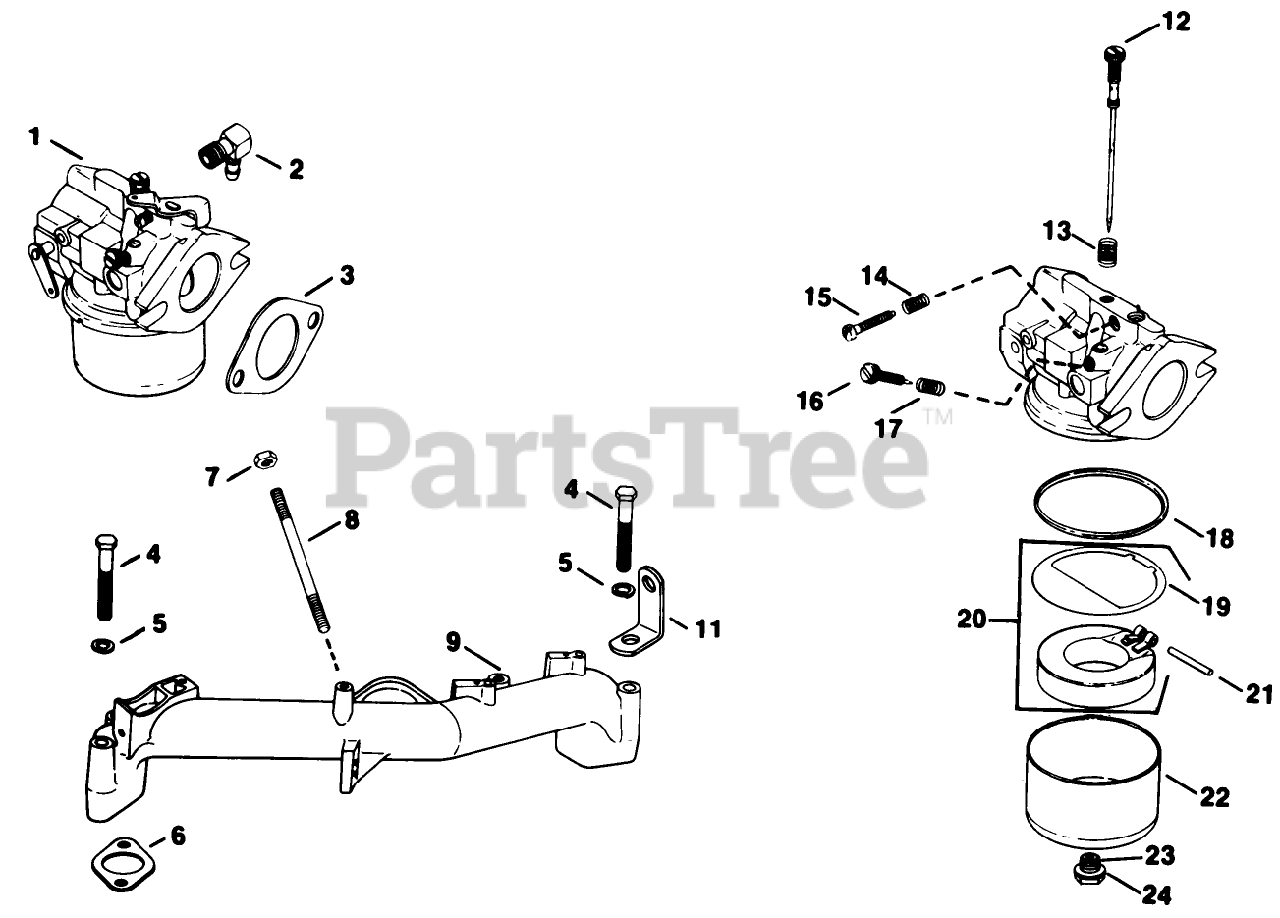

Carburetor-Kohler Engine Model No. Kt17qs Type No. 24324 (continued) Parts Diagram

  • Title

1

Toro 52_053_09

Carburetor Assembly

$

$

Currently unavailable

2

Toro 25_155_02

Connector-90?

$

$

Currently unavailable

3

Toro 271030

Gasket

$

$

Currently unavailable

4

Toro X-6-8

Screw-H.C.

$

$

Currently unavailable

5

Toro X-21-1

Washer

$

$

Currently unavailable

6

Toro 52_041_09

Gasket-Intake

$

$

Currently unavailable

7

Toro X-77-2

Nut

$

$

Currently unavailable

8

Toro X-352-37

Stud

$

$

Currently unavailable

9

Toro 52_164_10

Manifold-Intake

$

$

Currently unavailable

11

Toro 52_445_02

Strap-Lifting

$

$

Currently unavailable

12

Toro 52_103_01

Needle-Main Fuel Adj.

$

$

Currently unavailable

13

Toro 200383

Spring-Main

$

$

Currently unavailable

14

Toro 232555

Spring-Idle Speed

$

$

Currently unavailable

15

Toro 232556

Screw

$

$

Currently unavailable

16

Toro 277210

Needle-Idle Adj.

$

$

Currently unavailable

17

Toro 200380

Spring-Idle

$

$

Currently unavailable

18

Toro 200375

Gasket-Bowl

$

$

Currently unavailable

19

Toro 25_041_02

Gasket-Bowl Baffle

$

$

Currently unavailable

20

Toro 25_757_03

Kit-Float

$

$

Currently unavailable

21

Toro 200376

Pin-Float Hinge
(Superseded to 705358)

$

$

Not available

22

Toro 235448

Bowl
(Superseded to 742576)

$1042.99

$

Usually ships in 3-6 days

0

23

Toro 47_100_06

Screw-Bowl Retainer

$

$

Currently unavailable

24

Toro 200372

Gasket-Bowl Screw

$

$

Currently unavailable

Toro 25_757_02

Kit-Carburetor Repair

$

$

Currently unavailable

Toro 25_757_05

Kit-Choke/Throttle Repair

$

$

Currently unavailable
