55-8450 - Toro Hour Meter Kit for Groundsmaster 117 Front Axle Assembly Parts Diagram

Hour Meter Kit for Groundsmaster 117

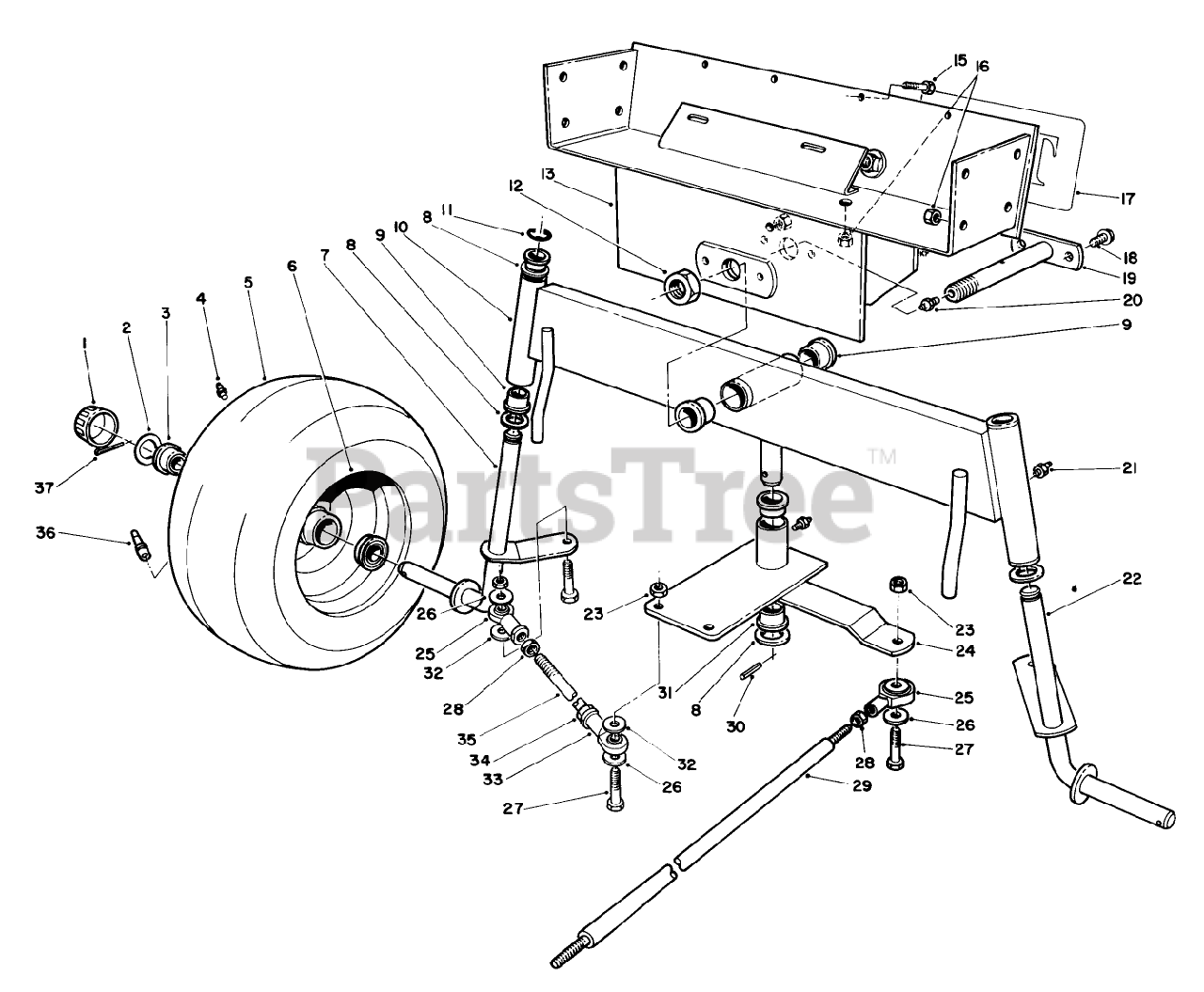

Front Axle Assembly Parts Diagram

  • Title

1

Toro 28-0060

See Supercession: 61-9780
(Superseded to 61-9780)

$8.99

$

In Stock, Qty 20+

0

2

Toro 28-2480

WASHER-PLAIN

$5.49

$

In Stock, Qty 16

0

3

Toro 251-210

See Supercession: 110513
(Superseded to 110513)

$25.99

$

In Stock, Qty 20+

0

4

Toro 302-5

FITTING-GREASE

$3.99

$

In Stock, Qty 20+

0

5

Toro 231-86

See Supercession: 231-126
(Superseded to 231-126)

$113.99

$

Usually ships in 3-6 days

0

6

Toro 242-60

See Supercession: 115-4215
(Superseded to 115-4215)

$

$

Not available

7

Toro 54-0570

DISCONTINUED
(Superseded to 54-0570-01)

$

$

Not available

8

Toro 3-6498

WASHER-THRUST

$7.99

$

In Stock, Qty 20+

0

9

Toro 46-6680

BUSHING PM

$29.99

$

Usually ships in 3-6 days

0

10

Toro 54-0510

See Supercession: 92-6255
(Superseded to 92-6255)

$

$

Not available

11

Toro 32151-48

E-RING

$1.99

$

In Stock, only 4 left!

0

12

Toro 3296-41

NUT-LOCK NI

$6.99

$

In Stock, only 1 left!

0

13

Toro 54-0330

See Supercession: 54-0330-01
(Superseded to 54-0330-01)

$

$

Not available

15

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

16

Toro 3296-29

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

17

Toro 43-5110

See Supercession: 67-1300
(Superseded to 67-1300)

$35.99

$

In Stock, only 2 left!

0

18

Toro 32144-15

SCREW-HHFTF

$9.49

$

Usually ships in 3-6 days

0

19

Toro 59-1500

See Supercession: 59-1500-01
(Superseded to 59-1500-01)

$

$

Not available

20

Toro 302-5

FITTING-GREASE

$3.99

$

In Stock, Qty 20+

0

21

Toro 302-49

GREASE FITTING

$4.49

$

Usually ships in 3-6 days

0

22

Toro 54-0560

See Supercession: 54-0560-01
(Superseded to 54-0560-01)

$151.99

$

Usually ships in 3-6 days

0

23

Toro 32152-9

NUT-HEX

$9.49

$

Usually ships in 3-6 days

0

24

Toro 54-0600

DISCONTINUED

$

$

Not available

25

Toro 251-305

BALL JOINT RH

$102.99

$

In Stock, only 2 left!

0

26

Toro 3256-4

WASHER-FLAT

$1.99

$

In Stock, Qty 20+

0

27

Toro 324-7

SCREW-HH

$2.49

$

Usually ships in 3-6 days

0

28

Toro 3220-4

NUT-JAM

$2.99

$

Usually ships in 3-6 days

0

29

Toro 54-1491

See Supercession: 54-1491-03
(Superseded to 54-1491-03)

$

$

Not available

30

Toro 32121-45

PIN-SPRING

$0.99

$

Usually ships in 3-6 days

0

31

Toro 27-9080

BEARING-FLANGE

$3.99

$

In Stock, only 2 left!

0

32

Toro 62-4420

WASHER

$8.99

$

Usually ships in 3-6 days

0

33

Toro 251-304

BALL JOINT LH

$102.99

$

Usually ships in 3-6 days

0

34

Toro 3220-19

NUT

$

$

Not available

35

Toro 57-3100

TIE ROD - STEERING

$

$

Not available

36

Toro 232-27

See Supercession: 5108
(Superseded to 5108)

$8.49

$

Usually ships in 3-6 days

0

37

Toro 3272-12

PIN-COTTER

$0.99

$

In Stock, only 4 left!

0
