55-8450 - Toro Hour Meter Kit for Groundsmaster 117 Hydrostatic Transmission Parts Diagram

Hour Meter Kit for Groundsmaster 117

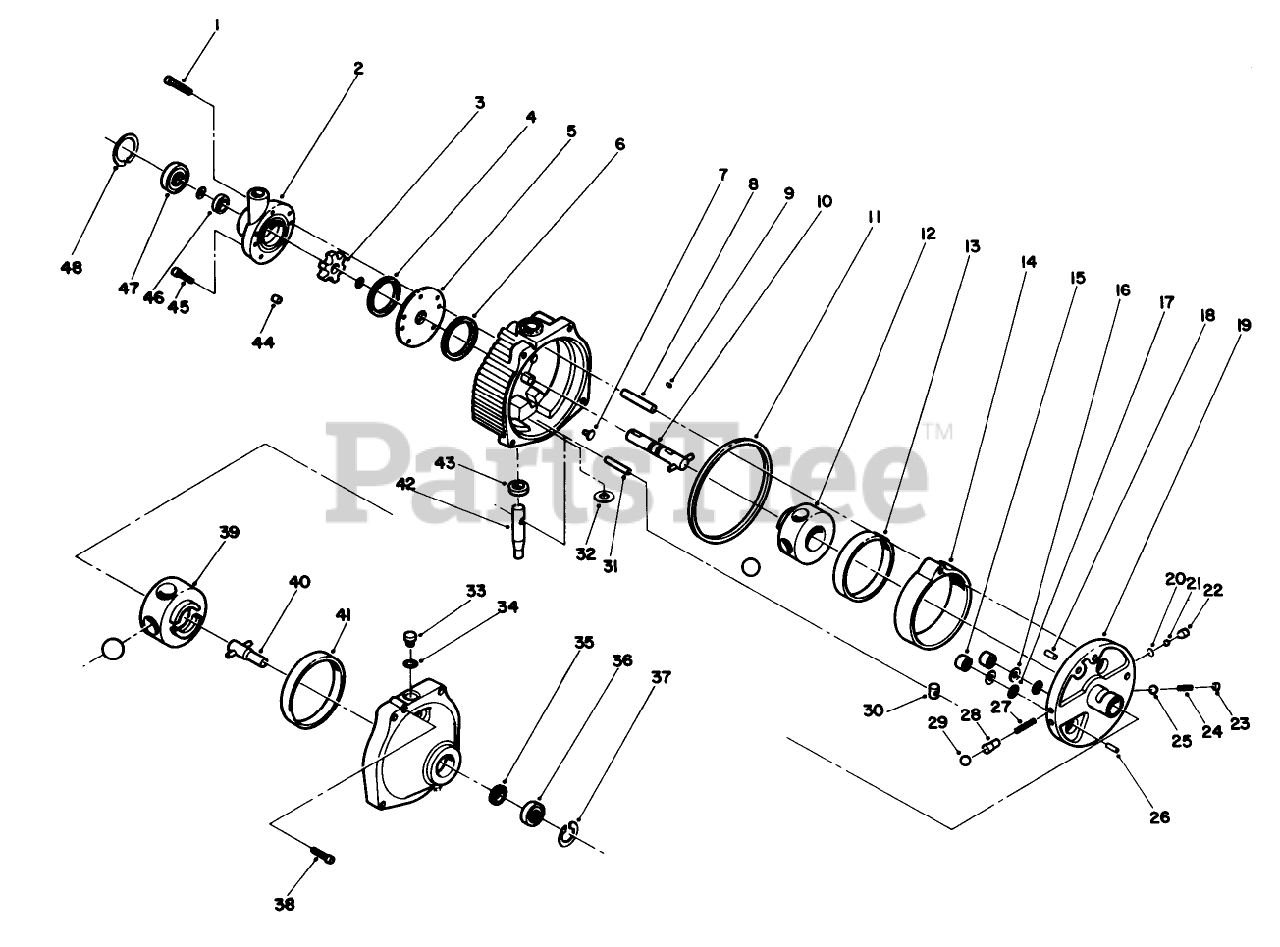

Hydrostatic Transmission Parts Diagram

  • Title

1

Toro 56-2800

CAPSCREW

$

$

Not available

2

Toro 56-2830

CHARGE PUMP

$

$

Not available

3

Toro 56-3120

CARRIER

$224.99

$

Usually ships in 3-6 days

0

4

Toro 56-2850

SEAL

$8.49

$

In Stock, Qty 6

0

5

Toro 56-2860

PLATE

$

$

Not available

6

Toro 56-2870

SEAL

$7.99

$

In Stock, only 1 left!

0

7

Toro 56-2880

BUTTON

$

$

Not available

8

Toro 56-2890

PIN

$

$

Not available

9

Toro 56-29001

Drive Pin

$

$

Currently unavailable

10

Toro 56-2910

DISCONTINUED

$

$

Not available

11

Toro 56-2920

SEAL

$

$

Not available

12

Toro 56-2930

ROTOR

$

$

Not available

13

Pump Race

$

$

Not available

14

Toro 56-2940

CAM RING ASM

$

$

Not available

15

Toro 56-2950

PISTON

$

$

Not available

16

Toro 56-2960

RING

$

$

Not available

17

Toro 56-2970

O-RING

$

$

Not available

18

Toro 56-2980

PIN

$

$

Not available

19

Toro 56-2990

PINTLE

$4066.99

$

Usually ships in 3-6 days

0

20

Toro 56-3000

RING

$4.49

$

Usually ships in 3-6 days

0

21

Toro 56-3010

DISCONTINUED

$

$

Not available

22

Toro 56-3020

BODY

$

$

Not available

23

Toro 56-3050

PLUG

$

$

Not available

24

Toro 56-3040

SPRING

$

$

Not available

25

Toro 56-3030

BALL

$

$

Not available

26

Toro 56-3060

PIN

$

$

Not available

27

Toro 56-3180

SPRING

$

$

Not available

28

Toro 56-3200

BODY

$

$

Not available

29

Toro 56-3210

BALL

$

$

Not available

30

Toro 56-3170

INSERT

$

$

Not available

31

Dowel

$

$

Not available

32

Control Shaft Washer

$

$

Not available

33

Toro 56-3250

PLUG ASM

$

$

Not available

34

Toro 56-3260

O-RING

$

$

Not available

35

Toro 56-3270

See Supercession: 56-2820
(Superseded to 56-2820)

$47.99

$

In Stock, only 3 left!

0

36

Toro 56-3280

See Supercession: 112602
(Superseded to 112602)

$72.99

$

Usually ships in 3-6 days

0

37

Toro 56-3290

RING

$

$

Not available

38

Toro 56-3300

See Supercession: 56-3100
(Superseded to 56-3100)

$

$

Not available

39

Toro 56-3220

ROTOR

$

$

Not available

40

Toro 56-3230

DISCONTINUED

$

$

Not available

41

Toro 56-3240

RACE

$

$

Not available

42

Toro 56-3140

SHAFT KIT

$

$

Not available

43

Toro 56-3130

DISCONTINUED

$

$

Not available

44

Toro 56-3110

ROLL

$

$

Not available

45

Toro 56-3100

SCREW-HH

$

$

Not available

46

Toro 56-2820

SEAL-OIL

$47.99

$

In Stock, only 3 left!

0

47

Toro 56-2810

BEARING

$

$

Not available

48

Toro 56-3080

See Supercession: 112653
(Superseded to 112653)

$

$

Not available

Toro 56-3310

SEAL KIT

Note: Not illustrated

$139.99

$

In Stock, only 2 left!

0
