55380 (ST 320 E) - Lawn-Boy 20" Snow Thrower (SN: 800000001 - 899999999) (1988) Transmission Parts List Models 55381, 55382, 55383 55384 Parts Diagram

20" Snow Thrower

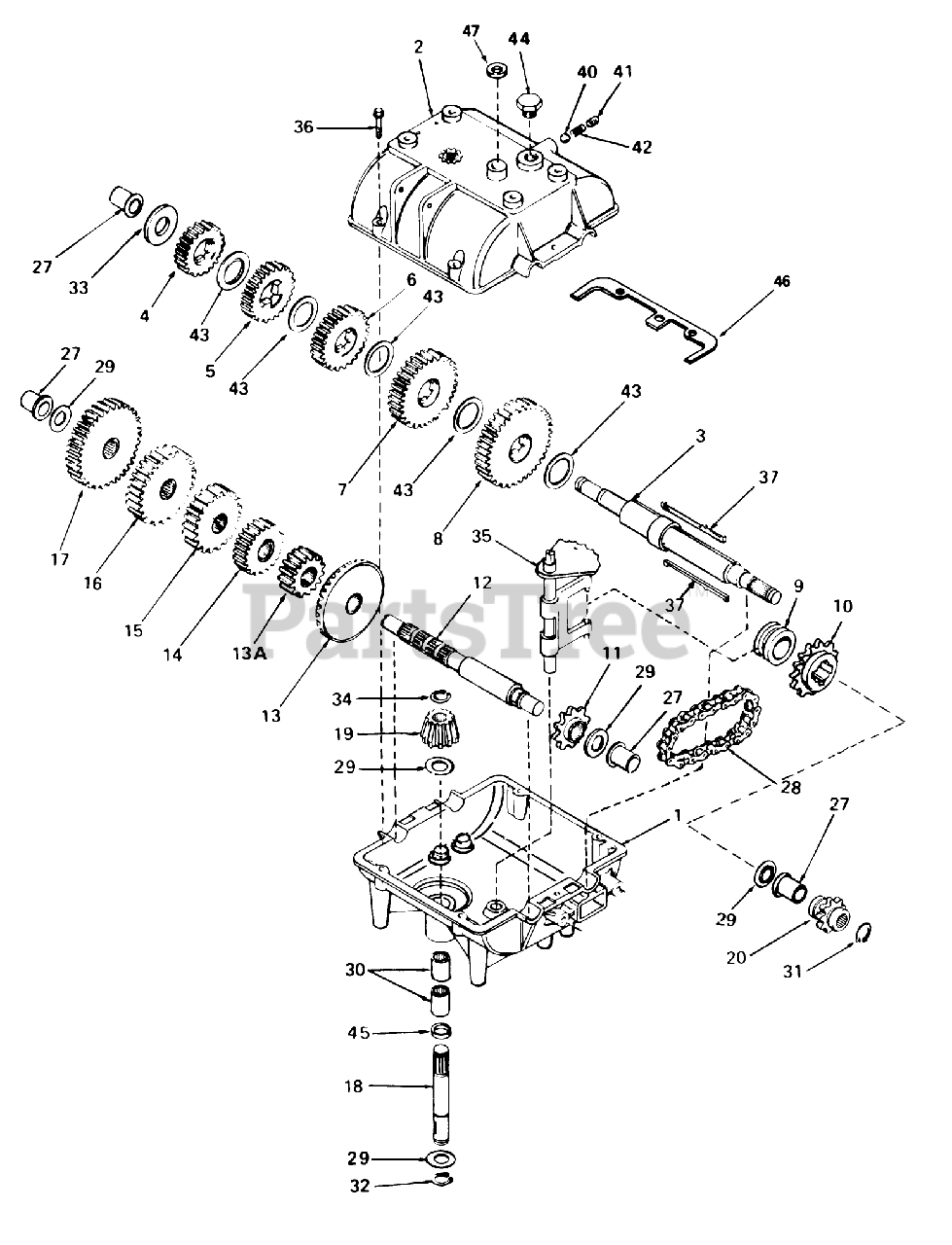

Transmission Parts List Models 55381, 55382, 55383 55384 Parts Diagram

  • Title

1

Lawn-Boy 770061

Case-Transmission

$

$

Currently unavailable

2

Lawn-Boy 772083

Cover-Transmission

$

$

Currently unavailable

3

Lawn-Boy 776161

Shaft-Output Brake

$

$

Currently unavailable

4

Lawn-Boy 778162

Gear, Spur (19 Teeth)

$

$

Currently unavailable

5

Lawn-Boy 778122A

Gear-Spur (22 teeth)

$

$

Currently unavailable

6

Lawn-Boy 778123A

Gear-Spur, 25 Teeth

$

$

Currently unavailable

7

Lawn-Boy 778124A

Gear-Spur, 30 Teeth

$

$

Currently unavailable

8

Lawn-Boy 778146A

Gear-Spur, 37 Teeth

$

$

Currently unavailable

9

Lawn-Boy 784266

Collar-Shift

$

$

Currently unavailable

10

Lawn-Boy 786060

Sprocket (14 Teeth)

$

$

Currently unavailable

11

Lawn-Boy 786061

Sprocket 10t

$

$

Currently unavailable

12

Lawn-Boy 776134

Countershaft

$

$

Currently unavailable

13

Lawn-Boy 778137A

Gear-Bevel (42Teeth)

$

$

Currently unavailable

13A

Lawn-Boy 778145

Gear-Spur, 12 Teeth

$

$

Currently unavailable

14

Lawn-Boy 778126A

Gear-Spur, 20 Teeth

$

$

Currently unavailable

15

Lawn-Boy 778127A

Gear-Spur, 25 Teeth

$

$

Currently unavailable

16

Lawn-Boy 778128A

Gear-Spur (28 teeth)

$

$

Currently unavailable

17

Lawn-Boy 778163

Gear, Spur (31 Teeth)

$

$

Currently unavailable

18

Lawn-Boy 776257

Shaft, Input

$

$

Currently unavailable

19

Lawn-Boy 778113A

Bevel Pinion-Input

$

$

Currently unavailable

20

Lawn-Boy 786049

Sprocket (8 Teeth)

$

$

Currently unavailable

27

Lawn-Boy 780150A

Bushing, Flanged

$

$

Currently unavailable

28

Lawn-Boy 786062A

Chain-Roller

$

$

Currently unavailable

29

Lawn-Boy 780072

Washer

$

$

Currently unavailable

30

Lawn-Boy 780086

Bearing-Needle

$

$

Currently unavailable

31

Lawn-Boy 792072

Piston Asm (.020 O S)

$

$

Currently unavailable

32

Lawn-Boy 792035

Ring-Snap

$

$

Currently unavailable

33

Lawn-Boy 780109

Washer

$

$

Currently unavailable

34

Lawn-Boy 788040

Ring-Retainer

$

$

Currently unavailable

35

Lawn-Boy 784267

Rod and Fork ASM

$

$

Currently unavailable

36

Lawn-Boy 792073

Ring Set (.020 O S)

$93.99

$

Usually ships in 3-6 days

0

37

Lawn-Boy 792089A

Key

$

$

Currently unavailable

40

Lawn-Boy 792077

Ball-Steel

$

$

Currently unavailable

41

Lawn-Boy 792078

Screw-Set

$

$

Currently unavailable

42

Lawn-Boy 792079

Spring

$

$

Currently unavailable

43

Lawn-Boy 780180

Washer, Thrust

$

$

Currently unavailable

44

Lawn-Boy 792074

Plug

$

$

Currently unavailable

45

Lawn-Boy 792001

O Ring

$

$

Currently unavailable

46

Lawn-Boy 788054

Gasket

$

$

Currently unavailable

47

Lawn-Boy 788069

Cut Seal-Square

$

$

Currently unavailable
