56125 (7-25) - Toro Rear-Engine Riding Mower (SN: 003000001 - 003999999) (1983) Engine And Axle Assembly Parts Diagram

Rear-Engine Riding Mower

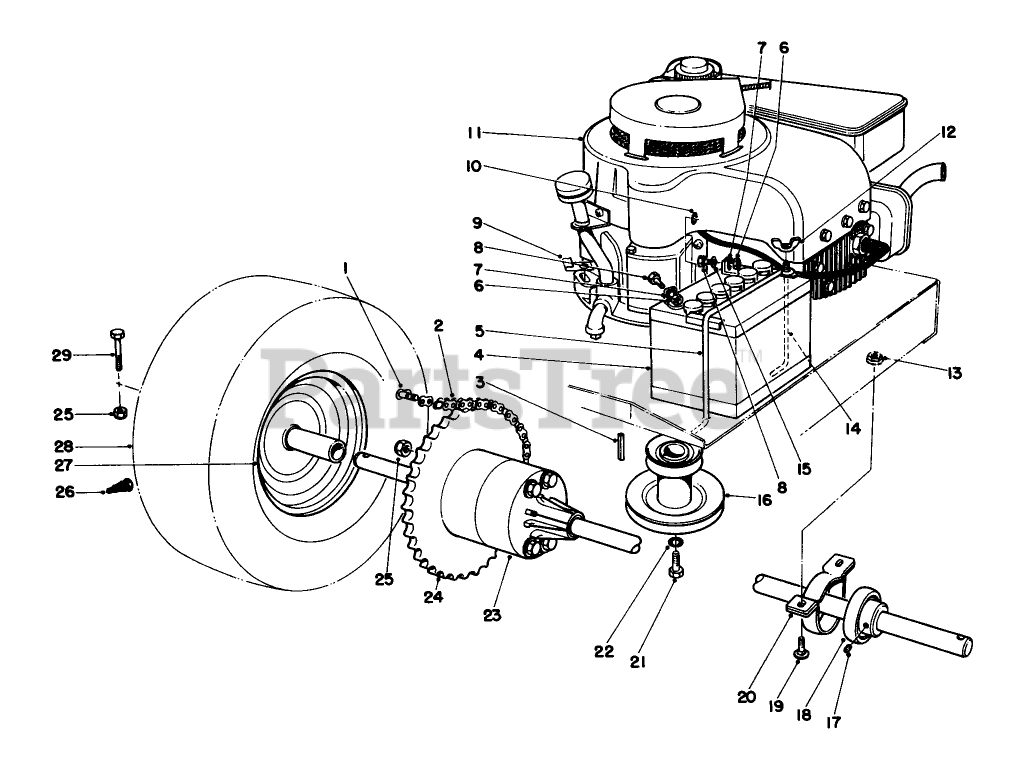

Engine And Axle Assembly Parts Diagram

  • Title

1

Toro 2710-6

LINK-CONNECTING

$22.99

$

In Stock, only 2 left!

0

2

Toro 44-7150

See Supercession: 67-0910
(Superseded to 67-0910)

$

$

Not available

3

Toro 3-0971

KEY

$

$

Not available

4

Toro 26-7290

DISCONTINUED

$

$

Not available

5

Toro 12-5700

DISCONTINUED

$

$

Not available

6

Toro 3217-5

NUT-HEX

$0.99

$

In Stock, Qty 9

0

7

Toro 3253-3

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

8

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

9

Toro 7-0077

DISCONTINUED

$

$

Not available

10

Toro 3255-7

WASHER-LOCK/EXT

$1.99

$

In Stock, only 3 left!

0

11

Toro 221-645

Engine

$

$

Currently unavailable

12

Toro 32103-14

NUT-WING SPECL

$16.99

$

Usually ships in 3-6 days

0

13

Toro 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

14

Toro 12-5950

ROD-SUPPORT, BATTERY

$

$

Not available

15

Toro 3256-2

WASHER-FLAT

$0.99

$

In Stock, Qty 18

0

16

Toro 47-5020

PULLEY-ENGINE

$

$

Not available

17

Set Screw

$

$

Not available

18

Toro 47-1490

BEARING-BALL

$94.99

$

Usually ships in 3-6 days

0

19

Toro 3231-30

SCREW-CARR

$4.99

$

Usually ships in 3-6 days

0

20

Toro 47-1480

RTNR-PILLOW BLK

$73.99

$

Usually ships in 3-6 days

0

21

Toro 3211-6

SCREW-HH

$4.99

$

Usually ships in 3-6 days

0

22

Toro 3253-21

WASHER-LOCK

$0.99

$

In Stock, only 4 left!

0

23

Toro 44-7300

Differential

$

$

Currently unavailable

24

Toro 44-7290

DISCONTINUE

$

$

Not available

25

Toro 32152-1

NUT-LOCK, CONE

$1.99

$

In Stock, Qty 7

0

26

Toro 232-27

See Supercession: 5108
(Superseded to 5108)

$8.49

$

Usually ships in 3-6 days

0

27

Toro 44-9760

WHEEL-REAR

$486.99

$

Usually ships in 3-6 days

0

28

Toro 231-96

See Supercession: 231-115
(Superseded to 231-115)

$116.99

$

Usually ships in 3-6 days

0

29

Toro 46-2510

See Supercession: 46-2511
(Superseded to 46-2511)

$

$

Not available

Toro 23240

Tube (optional)

Note: Not illustrated

$

$

Currently unavailable
