56155 (11-32) - Toro Rear-Engine Riding Mower (SN: 005000001 - 005999999) (1985) Rear Axle Assembly Parts Diagram

Rear-Engine Riding Mower

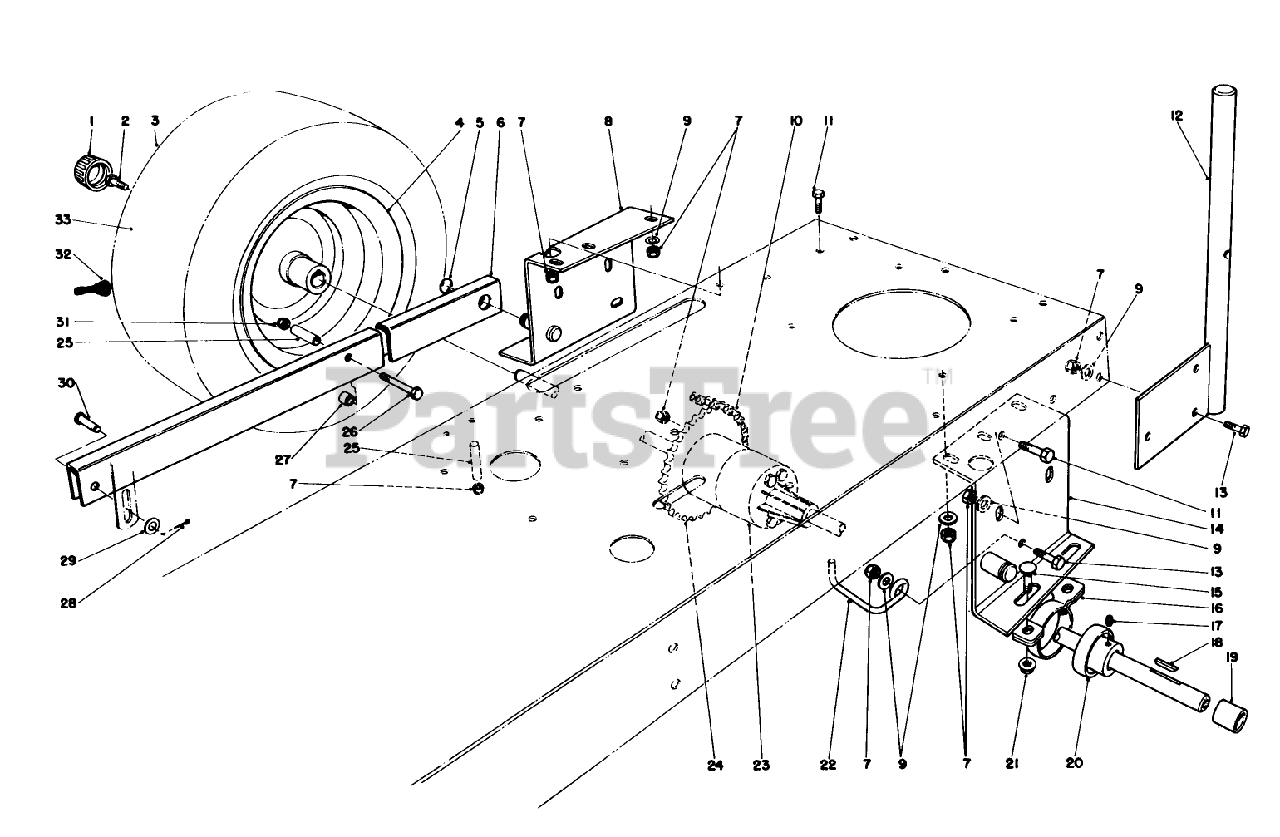

Rear Axle Assembly Parts Diagram

  • Title

1

Toro 28-0060

See Supercession: 61-9780
(Superseded to 61-9780)

$8.99

$

In Stock, Qty 20+

0

2

Toro 36-4030

See Supercession: 98-3052
(Superseded to 98-3052)

$1.99

$

Usually ships in 3-6 days

0

3

Toro 231-97

See Supercession: 231-117
(Superseded to 231-117)

$

$

Not available

4

Toro 242-70

DISCONTINUED

$

$

Not available

5

Toro 32151-48

E-RING

$1.99

$

In Stock, only 4 left!

0

6

Toro 47-0020

See Supercession: 47-0020-01
(Superseded to 47-0020-01)

$429.99

$

Usually ships in 3-6 days

0

7

Toro 3296-29

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

8

Toro 47-0880

DISCONTINUED

$

$

Not available

9

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

10

Toro 47-1510

See Supercession: 56-7230
(Superseded to 56-7230)

$155.99

$

Usually ships in 3-6 days

0

11

Toro 322-4

SCREW-HH

$0.99

$

In Stock, Qty 17

0

12

Toro 47-2050

DISCONTINUE

$

$

Not available

13

Toro 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

14

Toro 47-0890

DISCONTINUED

$

$

Not available

15

Toro 3231-30

SCREW-CARR

$4.99

$

Usually ships in 3-6 days

0

16

Toro 47-1480

RTNR-PILLOW BLK

$73.99

$

Usually ships in 3-6 days

0

17

Toro 3245-35

SCREW-SET, HSH

$0.99

$

In Stock, Qty 8

0

17

Toro 3246-15

SCREW-SET

$

$

Not available

18

Toro 3257-40

KEY

$9.49

$

Usually ships in 3-6 days

0

19

Toro 47-0740

DISCONTINUED

$

$

Not available

20

Toro 47-1490

BEARING-BALL

$94.99

$

Usually ships in 3-6 days

0

21

Toro 32128-21

NUT-HF

$0.99

$

In Stock, Qty 20+

0

22

Toro 47-2010

BELT GUIDE

$32.99

$

Usually ships in 3-6 days

0

23

Toro 47-1470

PEERLESS 100-024

$

$

Not available

24

Toro 47-1500

See Supercession: 56-7090
(Superseded to 56-7090)

$106.99

$

Usually ships in 3-6 days

0

25

Toro 47-0920

DISCONTINUED

$

$

Not available

26

Toro 323-13

SCREW-HH
(Superseded to 3231-25)

$2.49

$

In Stock, Qty 20+

0

27

Toro 47-0910

INNER TUBE SPACER

$

$

Not available

28

Toro 3272-6

PIN-COTTER

$0.99

$

In Stock, Qty 20+

0

29

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

30

Toro 283-42

PIN-CLEVIS

$53.99

$

Usually ships in 3-6 days

0

31

Toro 32152-2

NUT-LOCK, CONE

$2.49

$

In Stock, Qty 20+

0

32

Toro 232-27

See Supercession: 5108
(Superseded to 5108)

$8.49

$

Usually ships in 3-6 days

0

33

Toro 232-39

TUBE-INNER

Note: Service Replacement Part

$34.99

$

Usually ships in 3-6 days

0
