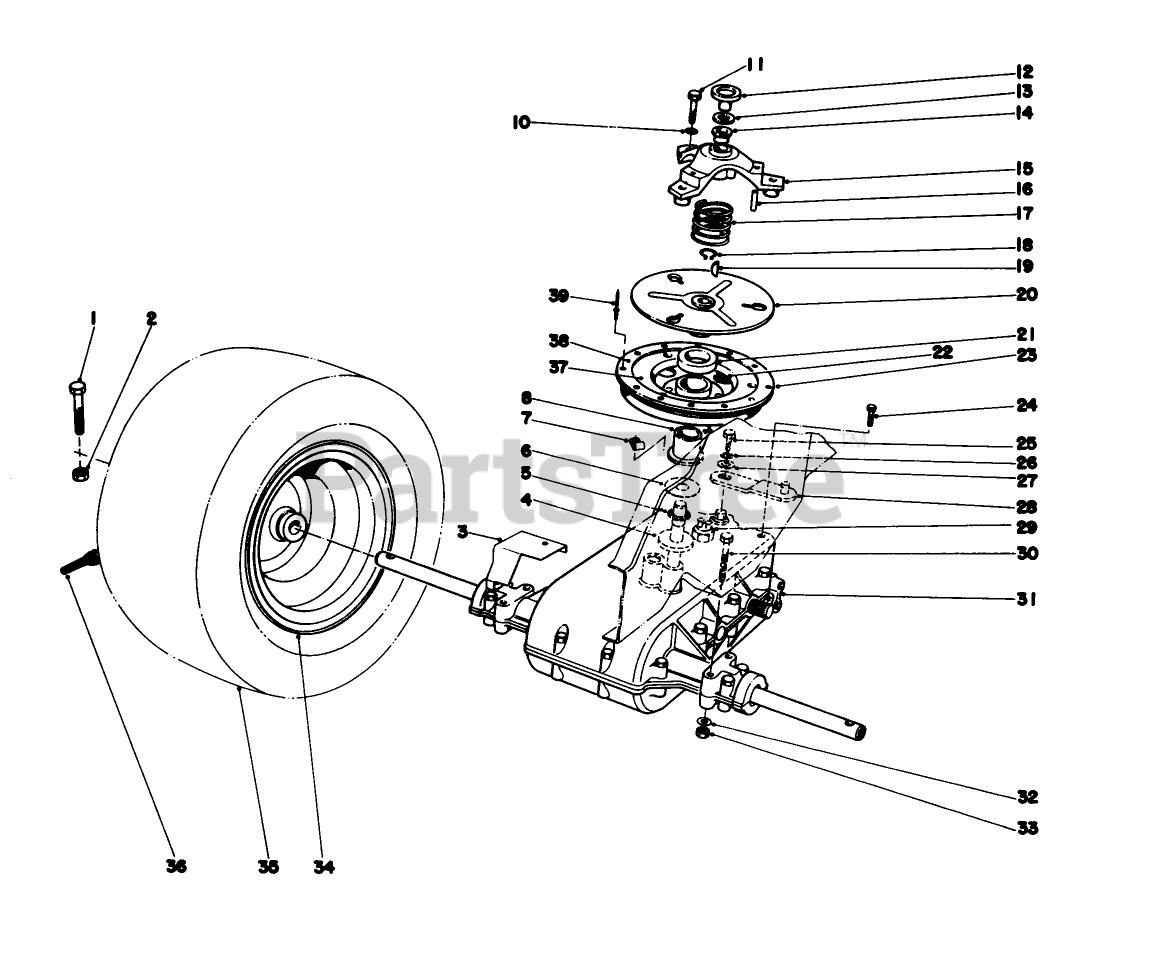

57305 - Toro 32" Lawn Tractor (SN: 008000001 - 008999999) (1978) Transaxle Clutch Assembly Parts Diagram

32" Lawn Tractor

Transaxle Clutch Assembly Parts Diagram

  • Title

1

Toro 322-39

SCREW-HH
(Superseded to 322-13)

$3.99

$

In Stock, Qty 20+

0

2

Toro 32152-1

NUT-LOCK, CONE

$1.99

$

In Stock, Qty 7

0

3

Toro 29-6940

DISCONTINUED

$

$

Not available

4

Toro 27-8810

DISCONTINUED

$

$

Not available

5

Toro 252-58

NEEDLE BRG

$49.99

$

Usually ships in 3-6 days

0

6

Toro 27-8820

THRUST WASHER

$

$

Not available

7

Toro 18-2970

CLIP-FUEL LINE

$9.99

$

In Stock, only 4 left!

0

8

Toro 28-4150

See Supercession: 11-0119
(Superseded to 11-0119)

$

$

Not available

10

Toro 3254-8

WASHER-LOCK

$0.99

$

Usually ships in 3-6 days

0

11

Toro 321-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

12

Toro 36-2130

CLUTCH CAP

$32.99

$

Usually ships in 3-6 days

0

13

Toro 252-94

THRUST RACE

$10.99

$

In Stock, only 1 left!

0

14

Toro 256-259

BUSHING-FLANGE

$3.99

$

Usually ships in 3-6 days

0

15

Toro 28-2560

DISCONTINUED

$

$

Not available

16

Toro 252-92

NEEDLE BRG

$33.99

$

Usually ships in 3-6 days

0

17

Toro 36-2220

DISCONTINUED

$

$

Not available

18

Toro 32120-64

RING-SNAP, EXTERNAL

$3.99

$

In Stock, Qty 20+

0

19

Toro 3257-32

KEY-WOODRUFF

$2.99

$

In Stock, only 1 left!

0

20

Toro 36-3070

See Supercession: 27-9030
(Superseded to 27-9030)

$

$

Not available

21

Toro 28-4220

WASHER FELT

$

$

Not available

22

Toro 2410-40

PLUG

$

$

Not available

23

Toro 27-9170

See Supercession: 11-0119
(Superseded to 11-0119)

$

$

Not available

24

Toro 32144-11

SCREW-THD ROLL, HWH

$8.49

$

In Stock, only 2 left!

0

25

Toro 329-2

SCREW-HH

$

$

Not available

26

Toro 3253-3

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

27

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

28

Toro 28-2380

DISCONTINUED

$

$

Not available

29

Toro 28-4250

NEUTRAL SWITCH

$50.99

$

Usually ships in 3-6 days

0

30

Toro 322-11

SCREW-HH
(Superseded to 120-9738)

$1.99

$

In Stock, Qty 18

0

31

Toro 36-1170

PEERLESS MODEL 804A

$

$

Not available

32

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

33

Toro 32152-1

NUT-LOCK, CONE

$1.99

$

In Stock, Qty 7

0

34

Toro 242-64

DISCONTINUED

$

$

Not available

35

Toro 231-97

See Supercession: 231-117
(Superseded to 231-117)

$

$

Not available

36

Toro 232-27

See Supercession: 5108
(Superseded to 5108)

$8.49

$

Usually ships in 3-6 days

0

37

Toro 27-8790

See Supercession: 40-4630
(Superseded to 40-4630)

$

$

Not available

38

Toro 27-8800

DISCONTINUED

$

$

Not available

39

Toro 3269-3

RIVET-POP

$0.99

$

Usually ships in 3-6 days

0

Toro 232-39

TUBE-INNER

Note: Not illustrated

$34.99

$

Usually ships in 3-6 days

0
